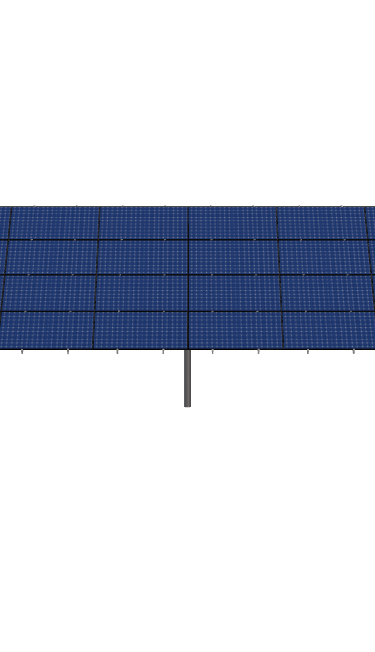

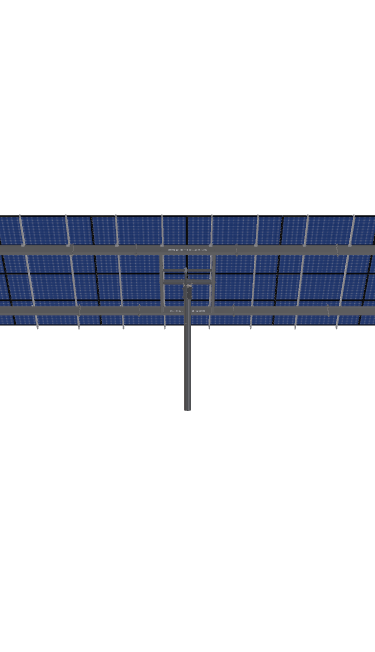

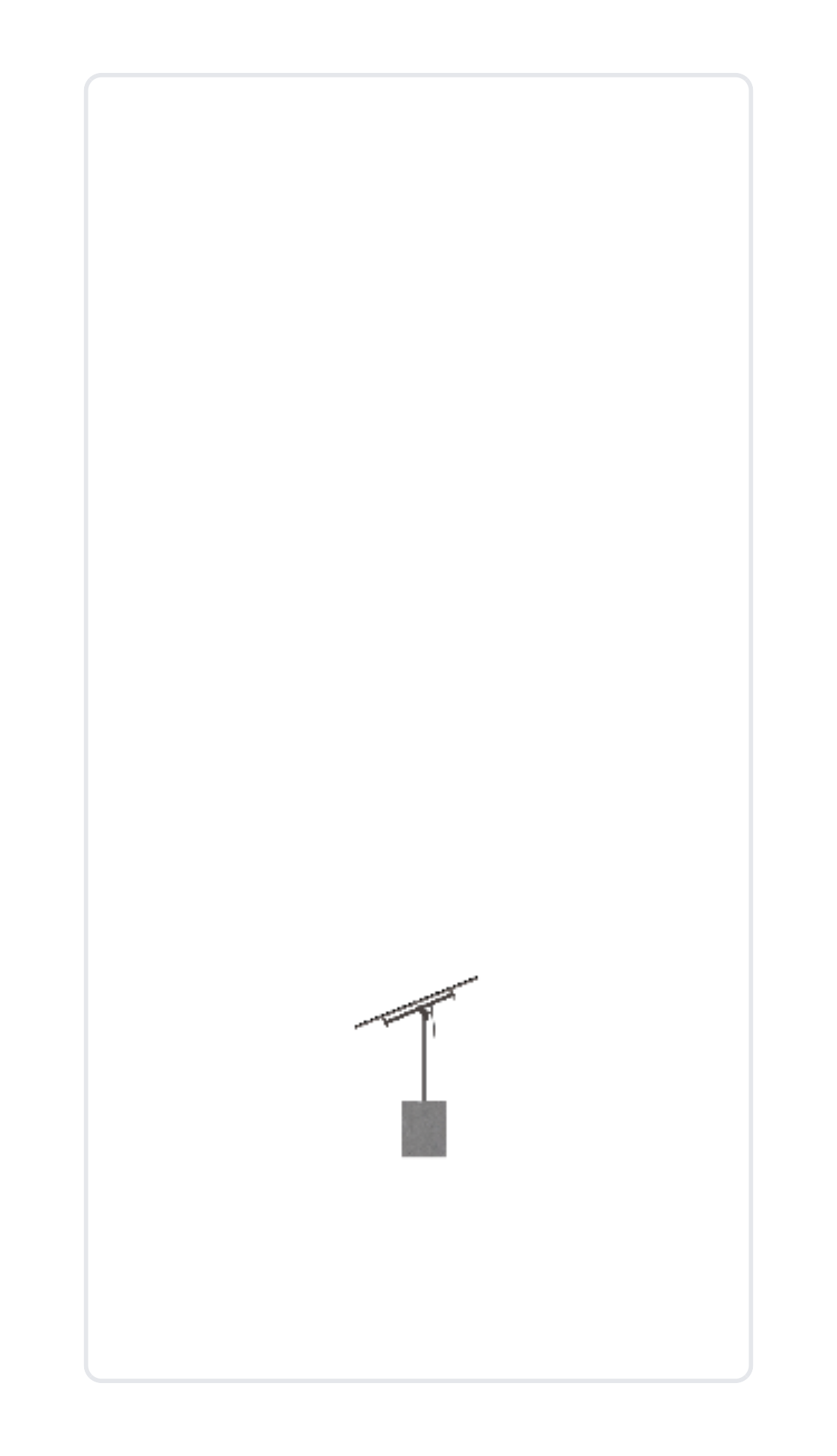

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_083LDEHK246JG
$12,292.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2208.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-57-L-4HX8W-H28B |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.01 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 788.63 |
| ARRAY WIDTH | 56.60 |
| ARRAY HEIGHT | 13.93 |
| RAIL LENGTH | 167.20 |
| MODULE LENGTH | 83.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 14.96 |
| PROJECTED PANEL HEIGHT | 9.90 |
| DESIGNER NAME | LAUREN, VAN, DYKE |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 9783900110.00 |
| PROJECT ID | MTSOLAR, 083LDEHK246JG |
| SITE ADDRESS | 14529, HUDSON, WAY, NEVADA, CITY, CA, 95959, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 89.00 |
| SNOW LOAD OVERRIDE | 66.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12292.41 |
| TOTAL WEIGHT | 2208.76 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/61d81ef2-29f0-4afc-bcac-4ee5831d5279.pdf |
|
| ID | 7742.00 |
| 3D Solar link |
