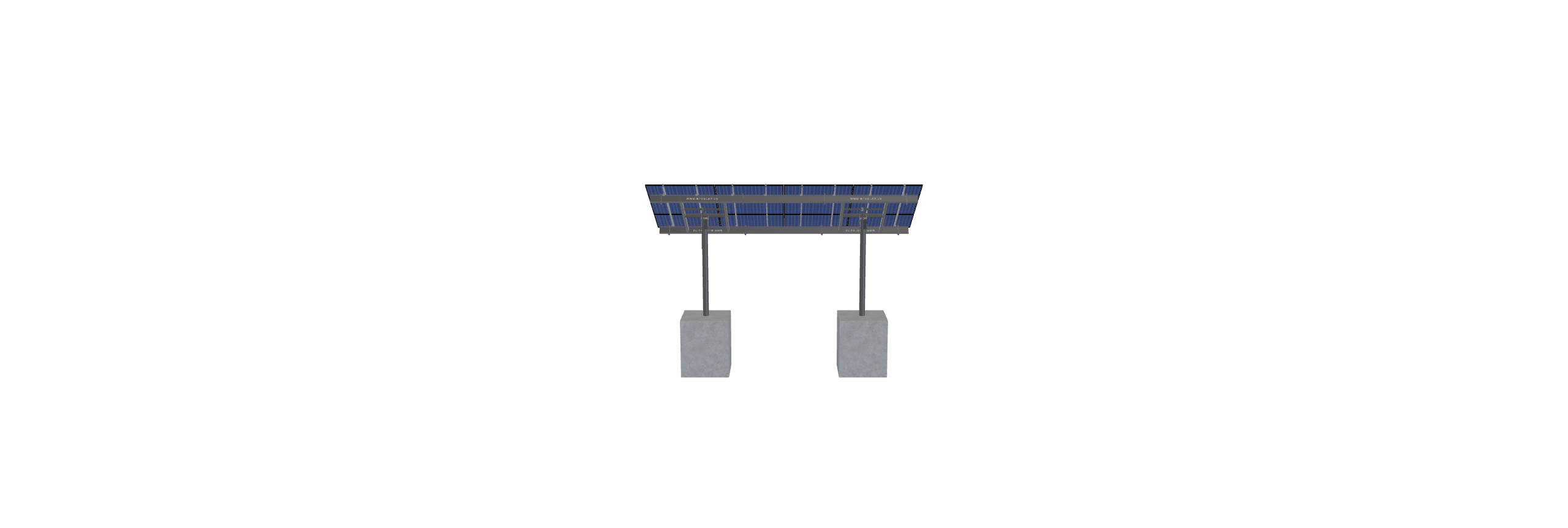

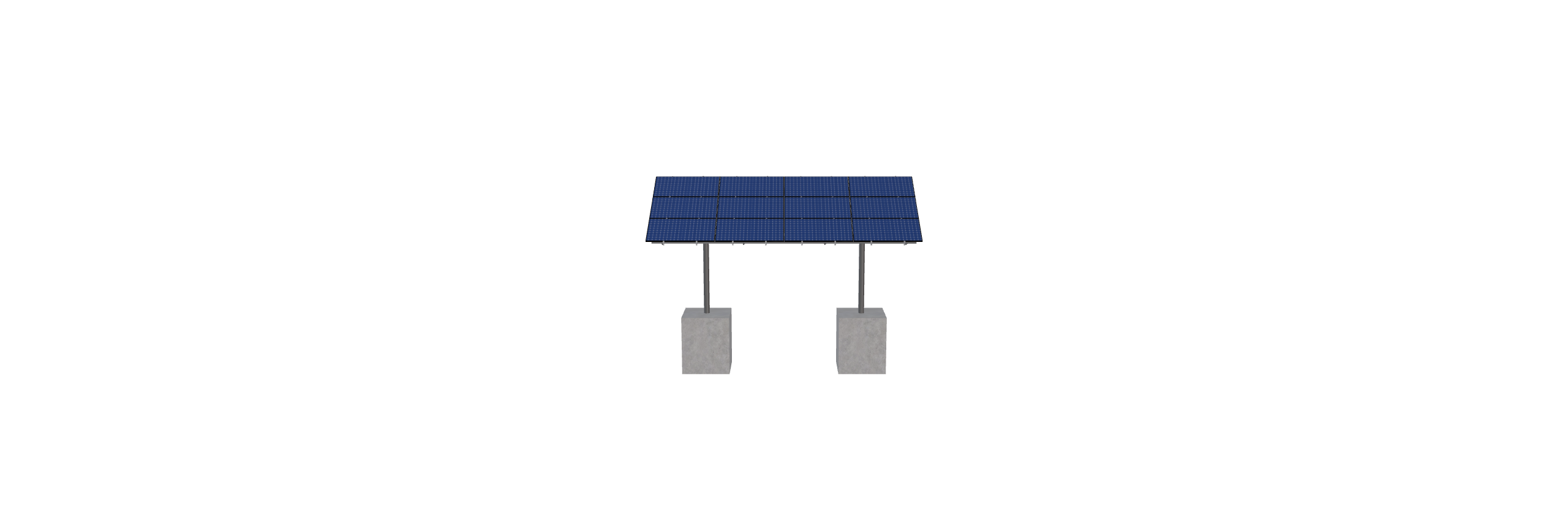

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.1 inches by 41.1 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_1GFAGGAGDI1DD
$7,112.98
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.1 inches by 41.1 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1126.18 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-12-L-3HX4W-0285 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 9.60 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 263.81 |
| ARRAY WIDTH | 25.37 |
| ARRAY HEIGHT | 10.40 |
| RAIL LENGTH | 124.80 |
| MODULE LENGTH | 75.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 12.20 |
| PROJECTED PANEL HEIGHT | 5.20 |
| DESIGNER NAME | TRAVIS, SPEARS |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 307-631-0805 |
| PROJECT ID | MTSOLAR, 1GFAGGAGDI1DD |
| SITE ADDRESS | N, GREELEY, HWY, CHEYENNE, WY, USA |
| MODULE INFO | MISSION, SOLAR, 385 |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 20.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 6774.27 |
| TOTAL WEIGHT | 1126.18 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/356f5ed2-1e1e-4444-b94f-36ce01ec7ff0.pdf |
|
| ID | 10811.00 |
| 3D Solar link |
