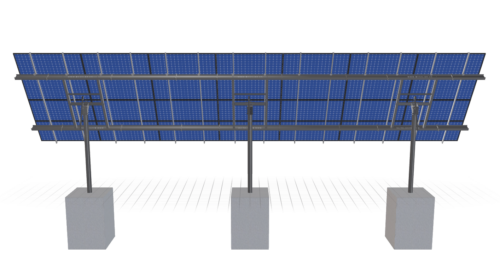

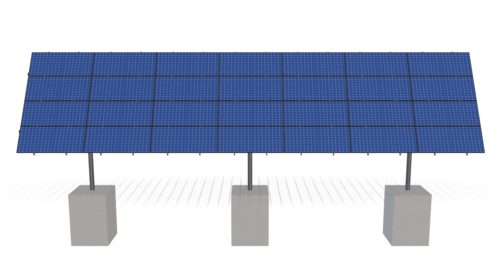

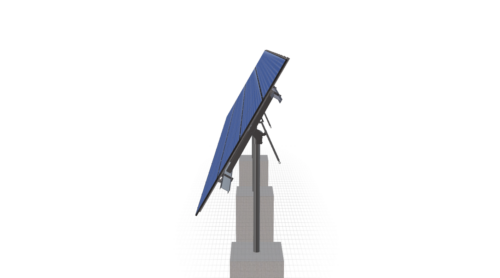

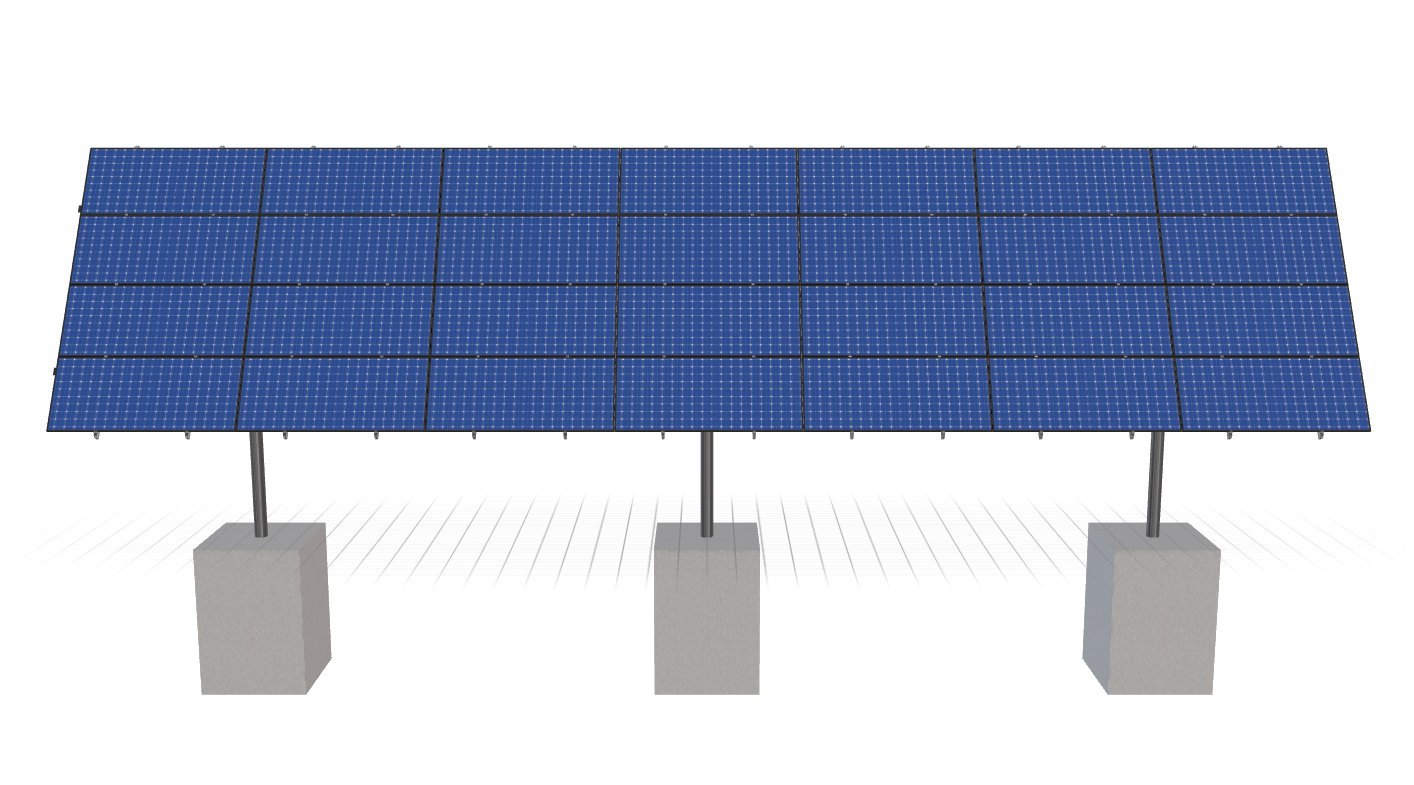

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 92 inches by 40 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_3BC9H21G0B846
$11,845.11
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 92 inches by 40 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2135.54 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-45-L-4HX7W-7CD3 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.85 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 732.38 |
| ARRAY WIDTH | 54.25 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 92.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 16.62 |
| PROJECTED PANEL HEIGHT | 11.55 |
| PROJECT ID | MTSOLAR, 3BC9H21G0B846 |
| SITE ADDRESS | PRIVATE, PROPERTY, NEAR, WISE, RIVER, MT, 59762, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 27.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 11845.11 |
| TOTAL WEIGHT | 2135.54 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/72b59955-00d0-41b5-9cb4-f2dd24615cb8.pdf |
|
| ID | 484.00 |
| 3D Solar link |
