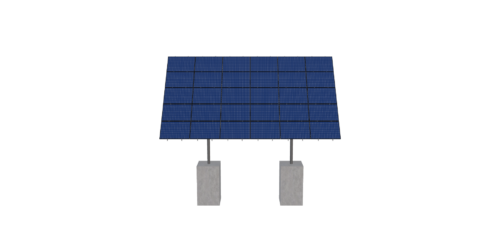

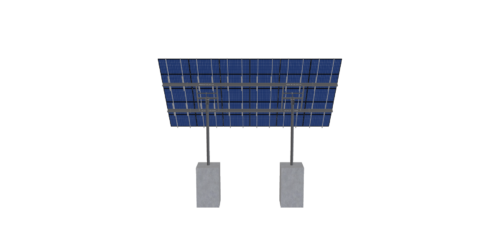

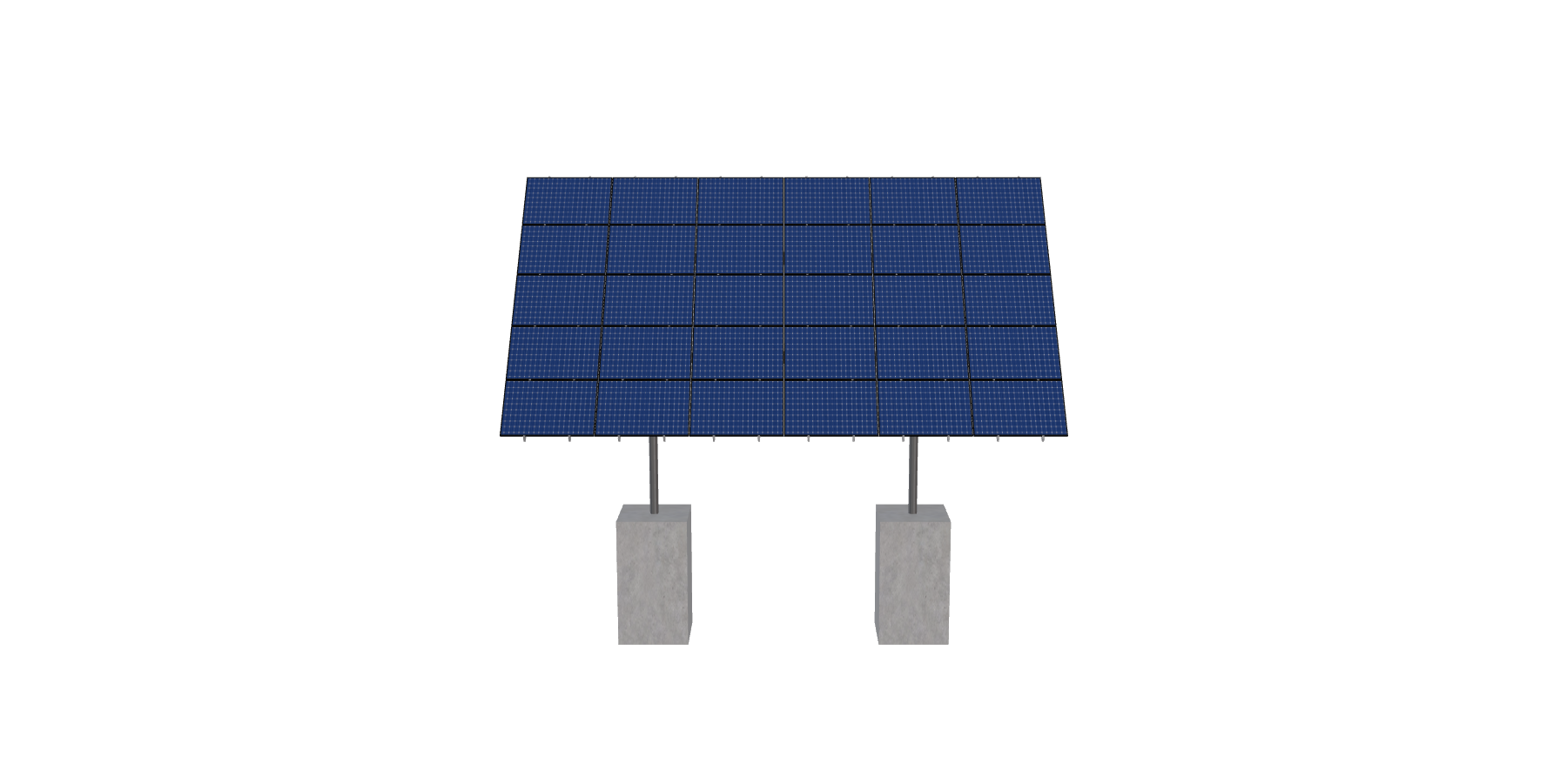

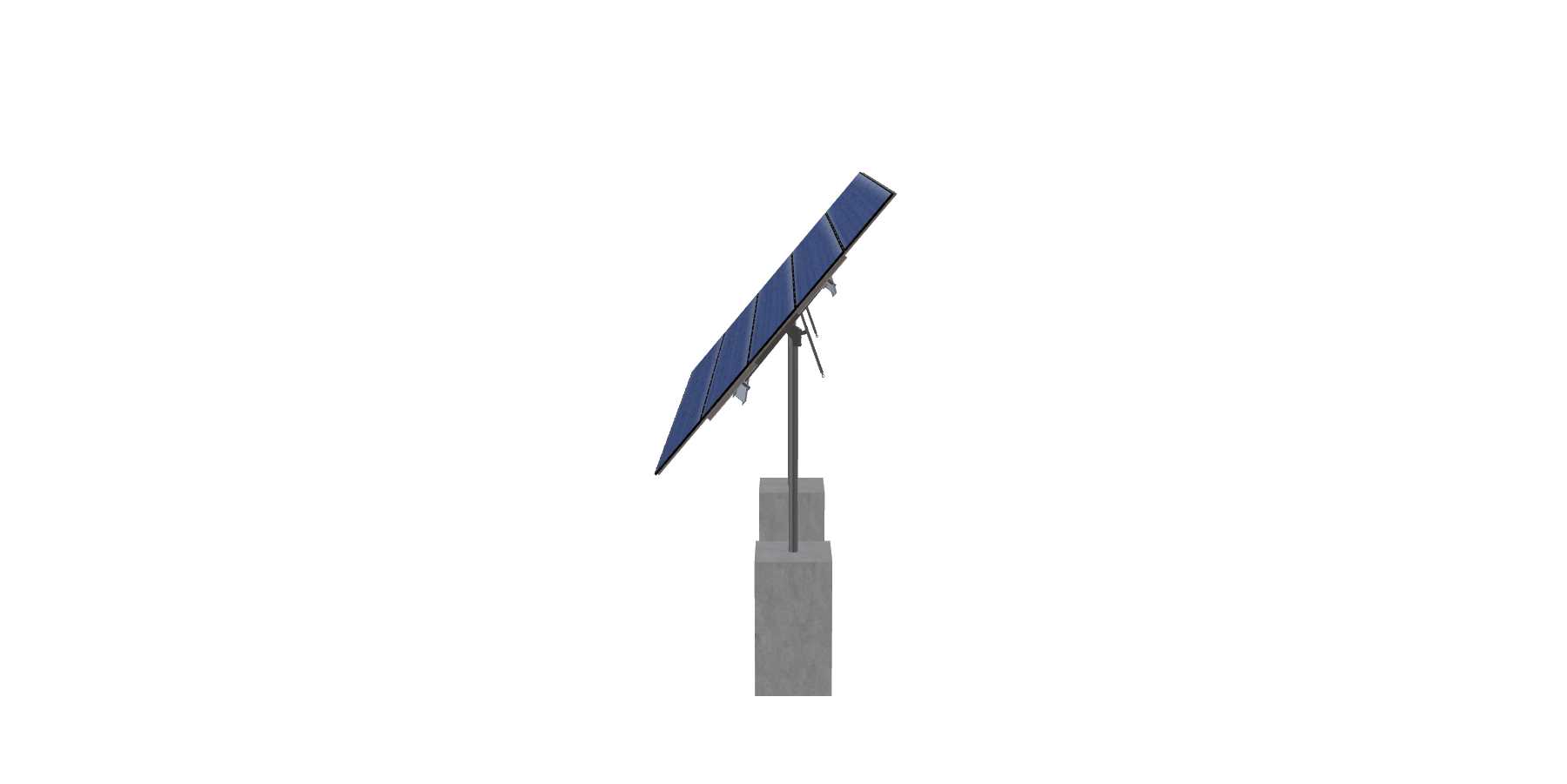

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.1 inches by 47.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_3H75936GBC1C
$10,402.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.1 inches by 47.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2082.86 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-HD-57-L-5HX6W-5G7A |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 13.66 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 691.00 |
| ARRAY WIDTH | 34.55 |
| ARRAY HEIGHT | 20.00 |
| RAIL LENGTH | 240.00 |
| MODULE LENGTH | 68.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 21.32 |
| PROJECTED PANEL HEIGHT | 15.32 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ARTIE, (NEC, SOLAR) |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 781-444-7020 |
| PROJECT ID | MTSOLAR, 3H75936GBC1C |
| SITE ADDRESS | NEWBURY, MA, USA |
| MODULE WIDTH | 47.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10402.34 |
| TOTAL WEIGHT | 2082.86 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/24bbd161-27d6-4cb2-b23e-d87803fe7ca9.pdf |
|
| ID | 8119.00 |
| 3D Solar link |
