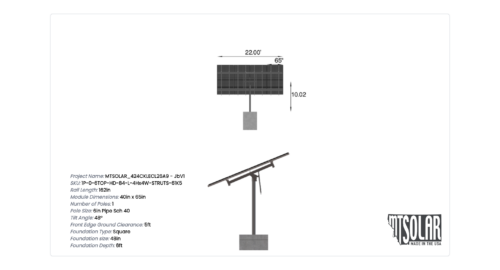

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_424CKLECL26A9 – JbV1
$5,196.27
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 950.6899999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-84-L-4HX4W-STRUTS-61K5 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.02 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 48.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 297.00 |
| ARRAY WIDTH | 22.00 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 14.97 |
| PROJECTED PANEL HEIGHT | 9.91 |
| DESIGNER NAME | TRISHA |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 424CKLECL26A9, -, JBV1 |
| SITE ADDRESS | 3435, FISH, LAKE, RD, NEW, MEADOWS, ID, 83654, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 100.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 5196.27 |
| TOTAL WEIGHT | 950.69 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/bdf4a9bf-07d1-4305-8b96-993f69f15dd7.pdf |
|
| ID | 7939.00 |
| 3D Solar link |
