This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.83 inches by 44.69 inches and an array layout of 15 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

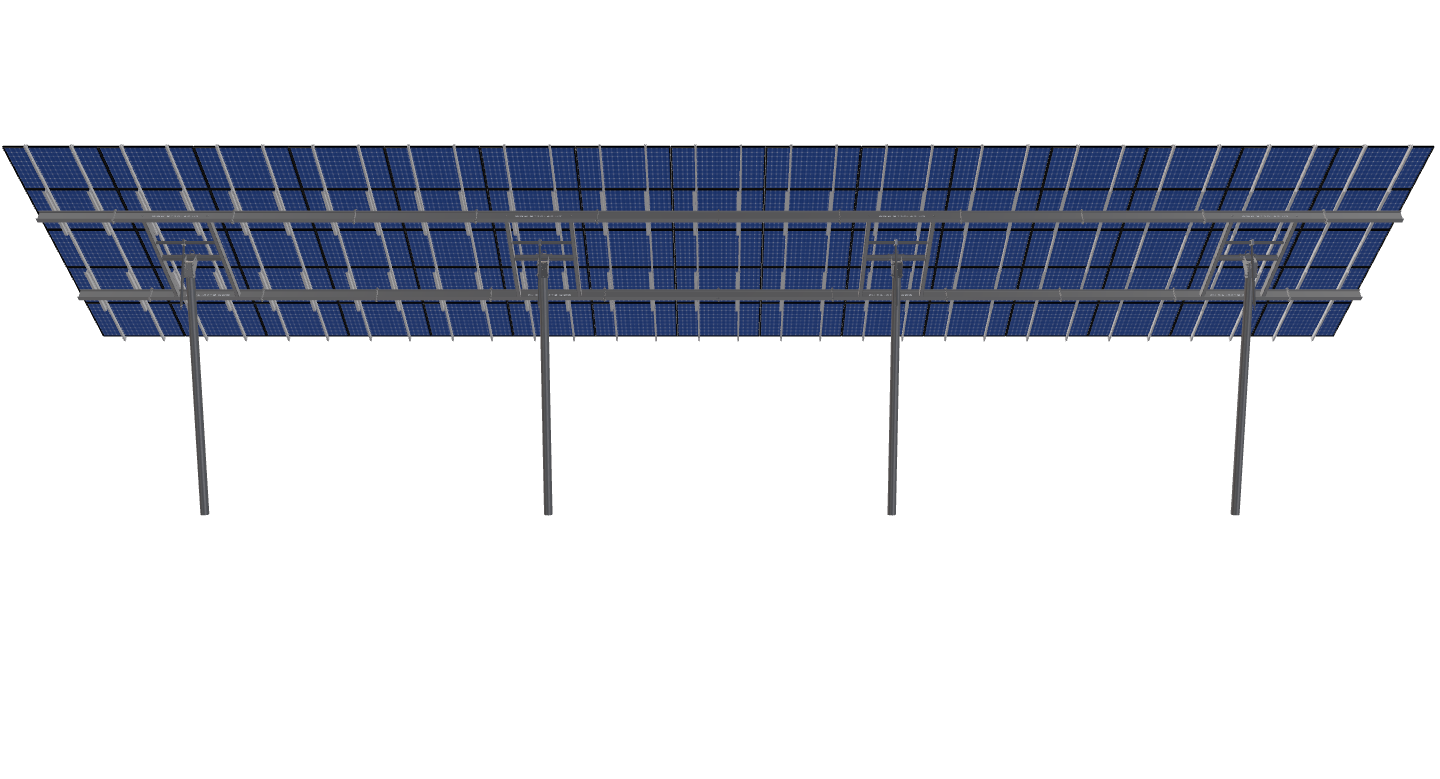

See 3D Model Here
MTSOLAR_49H5KAE98HIA7 – 5×15 – 46degrees – V1JB
$24,040.63
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.83 inches by 44.69 inches and an array layout of 15 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4888.719999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-10TOP-HD-57-L-5HX15W-ECG0 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |

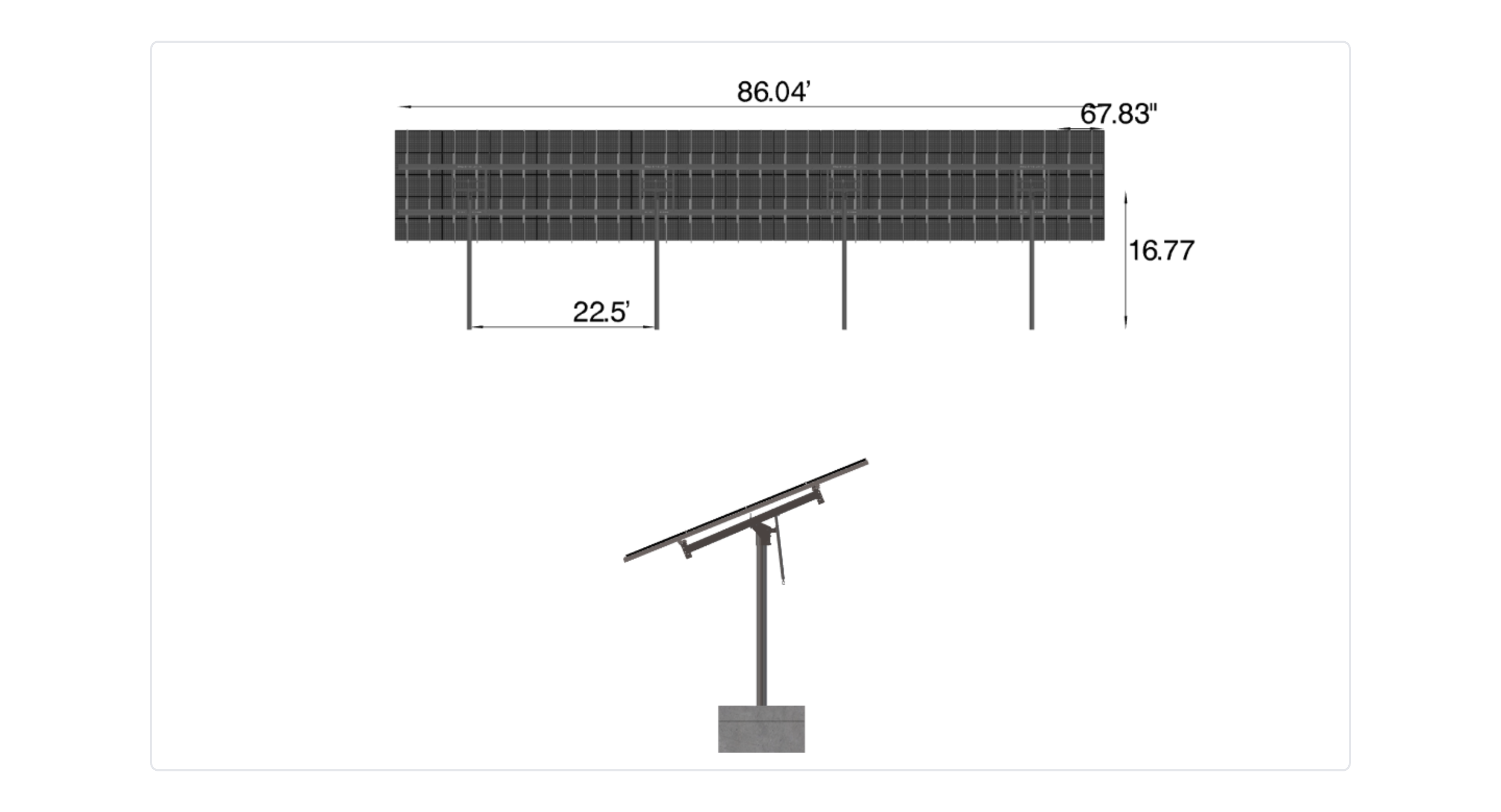

| POLE SPACING | 22.50 |
| POLE HEIGHT | 16.77 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 999999.00 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 1014.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1620.01 |
| ARRAY WIDTH | 86.04 |
| ARRAY HEIGHT | 18.83 |
| RAIL LENGTH | 225.95 |
| MODULE LENGTH | 67.83 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 84.50 |
| GROUND TO TOP | 23.47 |
| PROJECTED PANEL HEIGHT | 13.39 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, 49H5KAE98HIA7, -, 5X15, -, 46DEGREES, -, V1JB |
| SITE ADDRESS | 18402, 225TH, AVE, NE, PAYNESVILLE, MN, 56362, USA |
| MODULE WIDTH | 44.69 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 24040.63 |
| TOTAL WEIGHT | 4888.72 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/c6a821ec-b69d-48ed-897f-ce26eb90ebd0.pdf |
|
| ID | 6961.00 |
| 3D Solar link |
