MTSOLAR_4G86356GGHDDD

$4,000.30

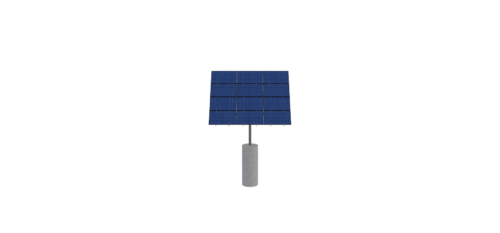

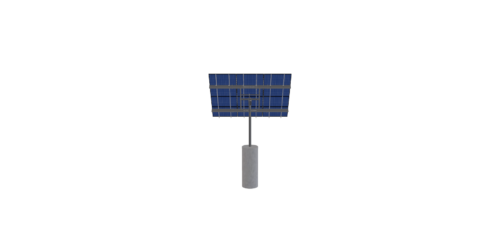

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.59843 inches by 41.14173 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-57-L-4Hx3W-A42A Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.59843 inches by 41.14173 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 699.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-57-L-4HX3W-A42A

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.32

WING SPAN

57.00

MAX FOUNDATION DEPTH

9.00

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

238.05

ARRAY WIDTH

17.15

ARRAY HEIGHT

13.88

RAIL LENGTH

166.57

MODULE LENGTH

67.60

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

15.57

PROJECTED PANEL HEIGHT

10.51

PROJECT ID

MTSOLAR, 4G86356GGHDDD

SITE ADDRESS

7265, W, GLENMERE, RD, EMPIRE, MI, 49630, USA

MODULE WIDTH

41.14

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

60.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4000.30

TOTAL WEIGHT

699.66

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/ec448fb9-3e90-46de-95cb-44c947bab640.pdf

ID

6864.00
