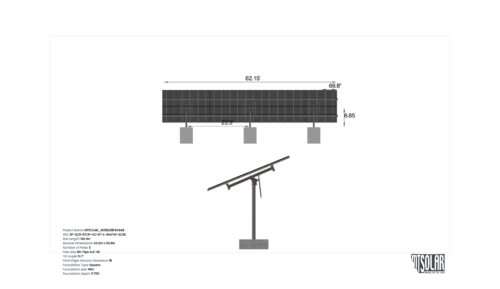

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.8 inches by 44.6 inches and an array layout of 11 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

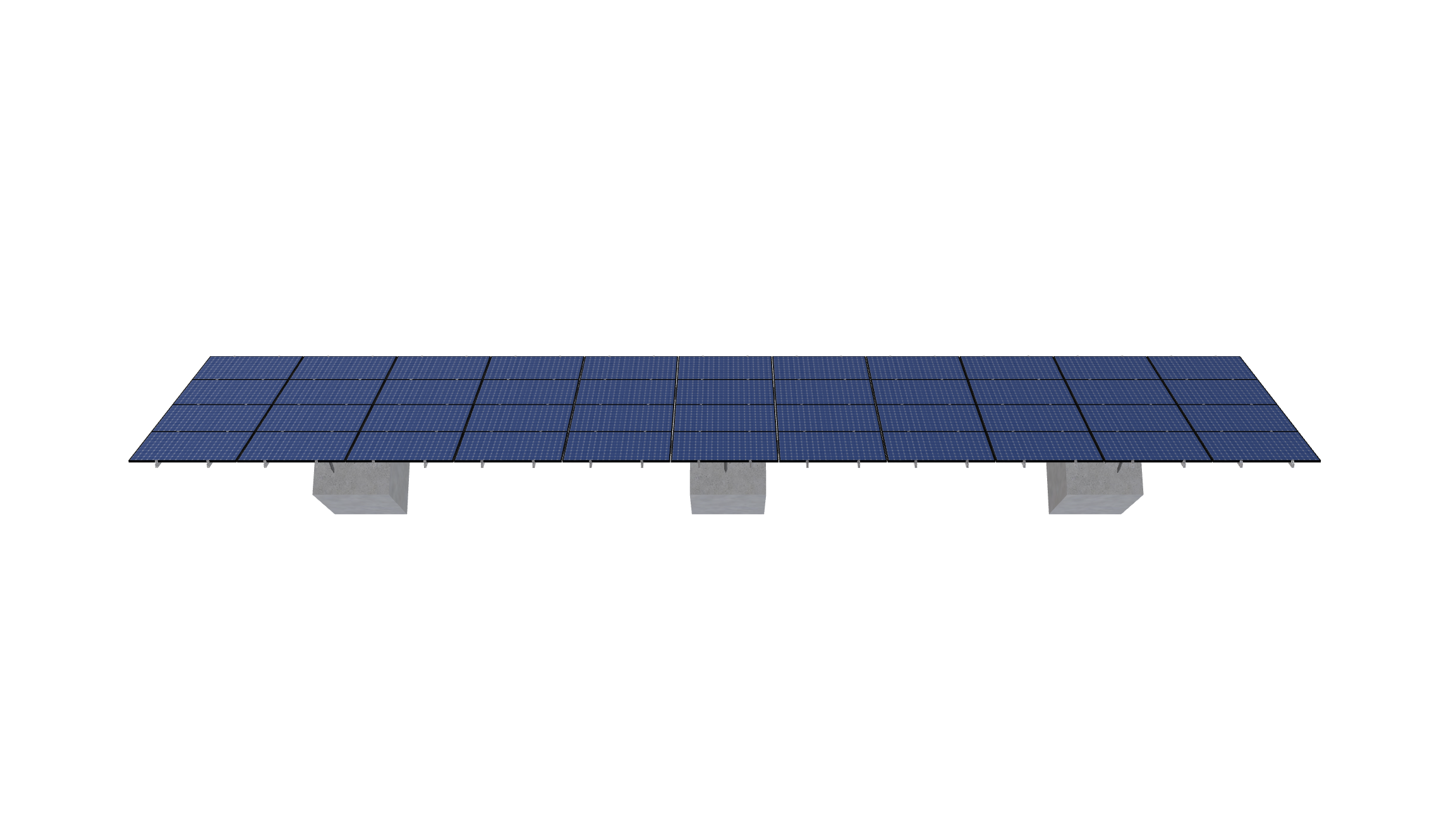

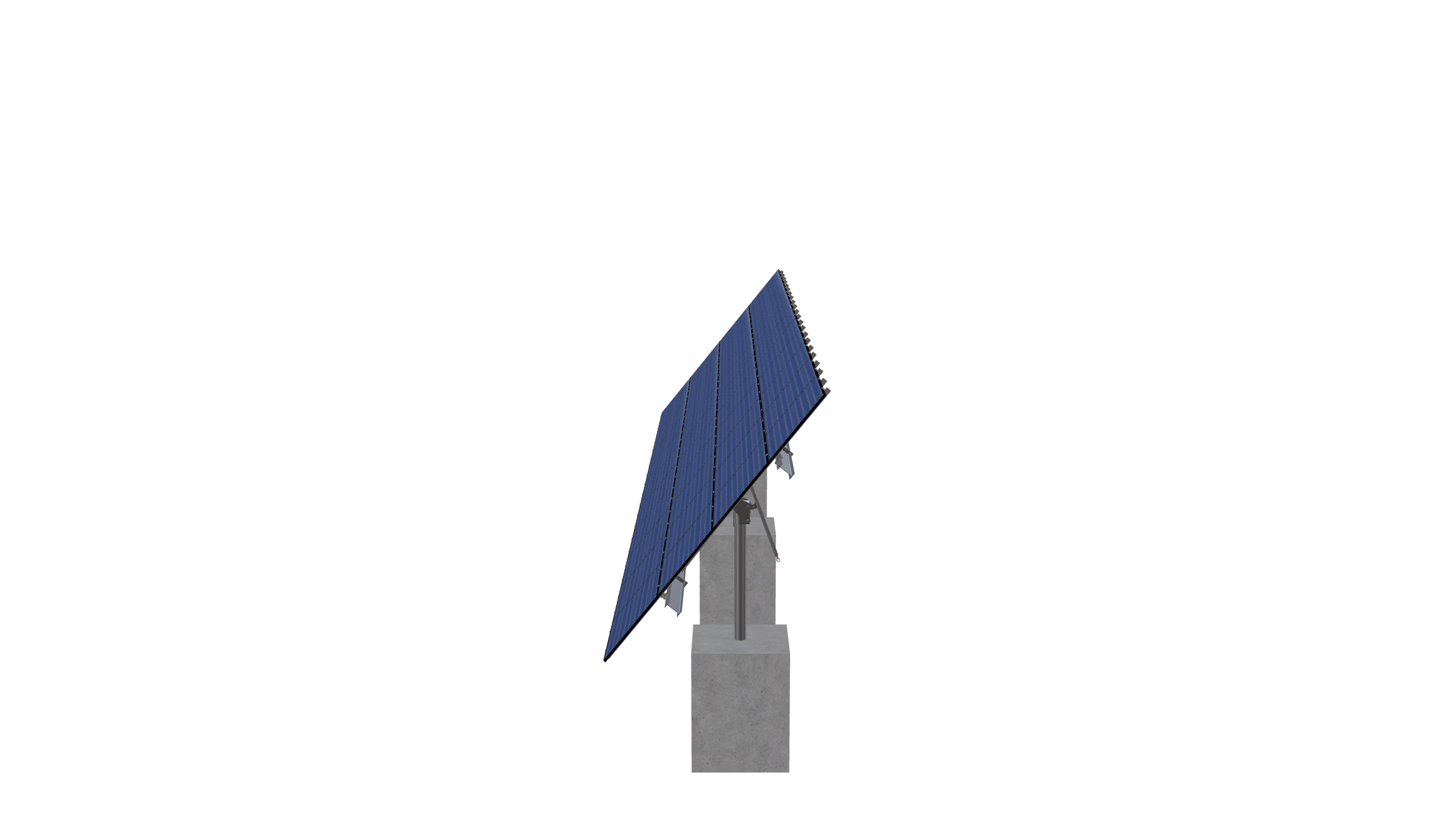

See 3D Model Here
MTSOLAR_4K88L88F404A8
$15,298.84
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.8 inches by 44.6 inches and an array layout of 11 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2810.07 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-57-L-4HX11W-2C80 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 6.85 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 51.10 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 1.00 |
| NO POLES | 3.00 |
| MODULE AREA | 934.32 |
| ARRAY WIDTH | 62.15 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 66.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 12.63 |
| PROJECTED PANEL HEIGHT | 11.57 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, 4K88L88F404A8 |
| SITE ADDRESS | 126, BUSH, HILL, RD, HUDSON, NH, 03051, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15298.84 |
| TOTAL WEIGHT | 2810.07 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/69e5b861-e9a6-4da5-9b71-50002303400d.pdf |
|
| ID | 3410.00 |
| 3D Solar link |
