MTSOLAR_5IED3A5EJ6GF- No Rails

$7,928.94

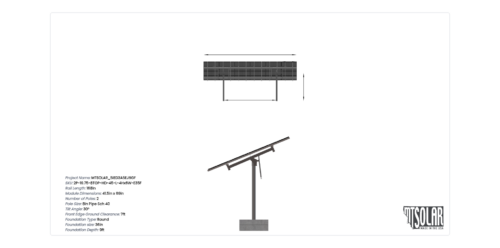

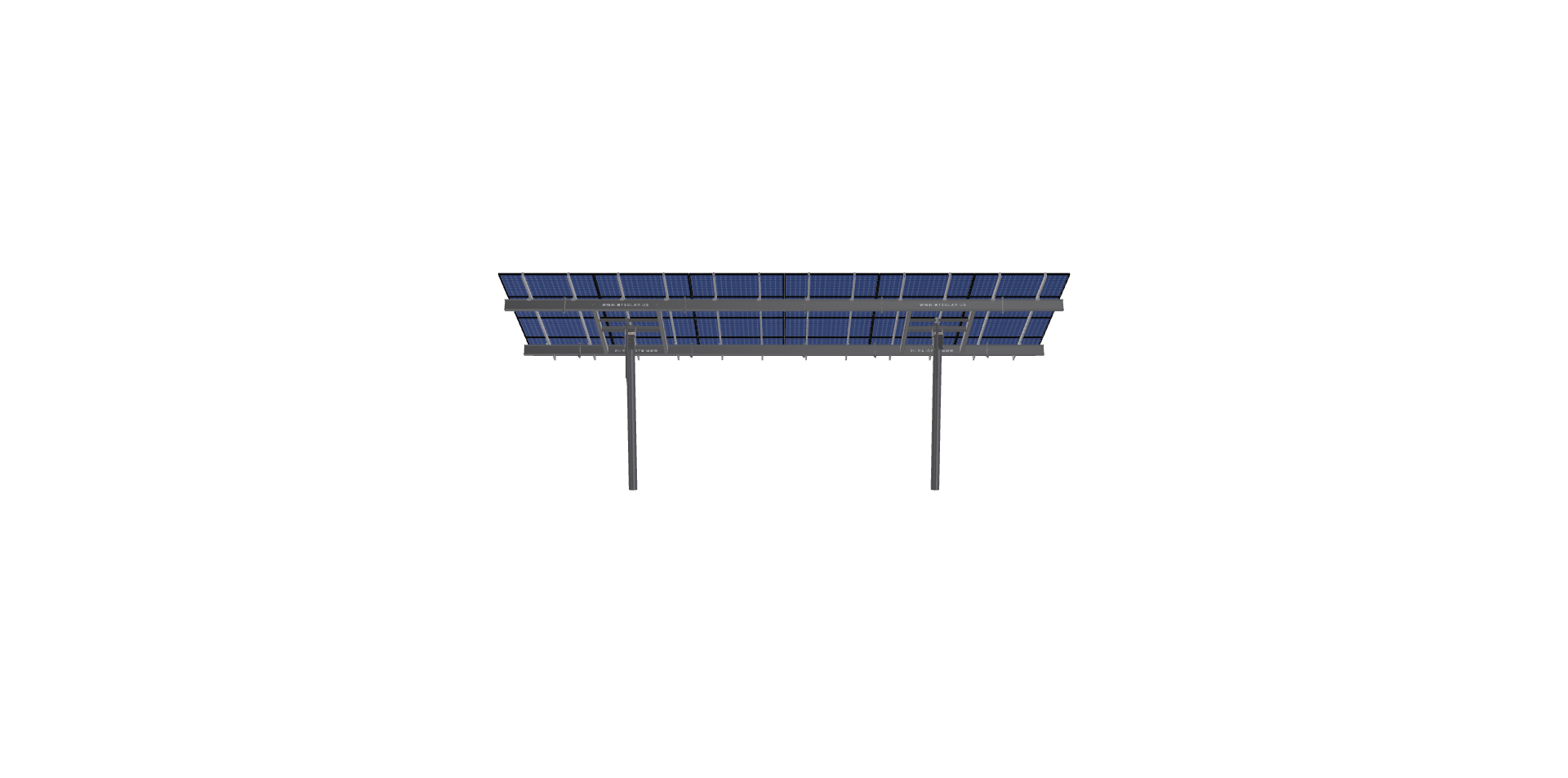

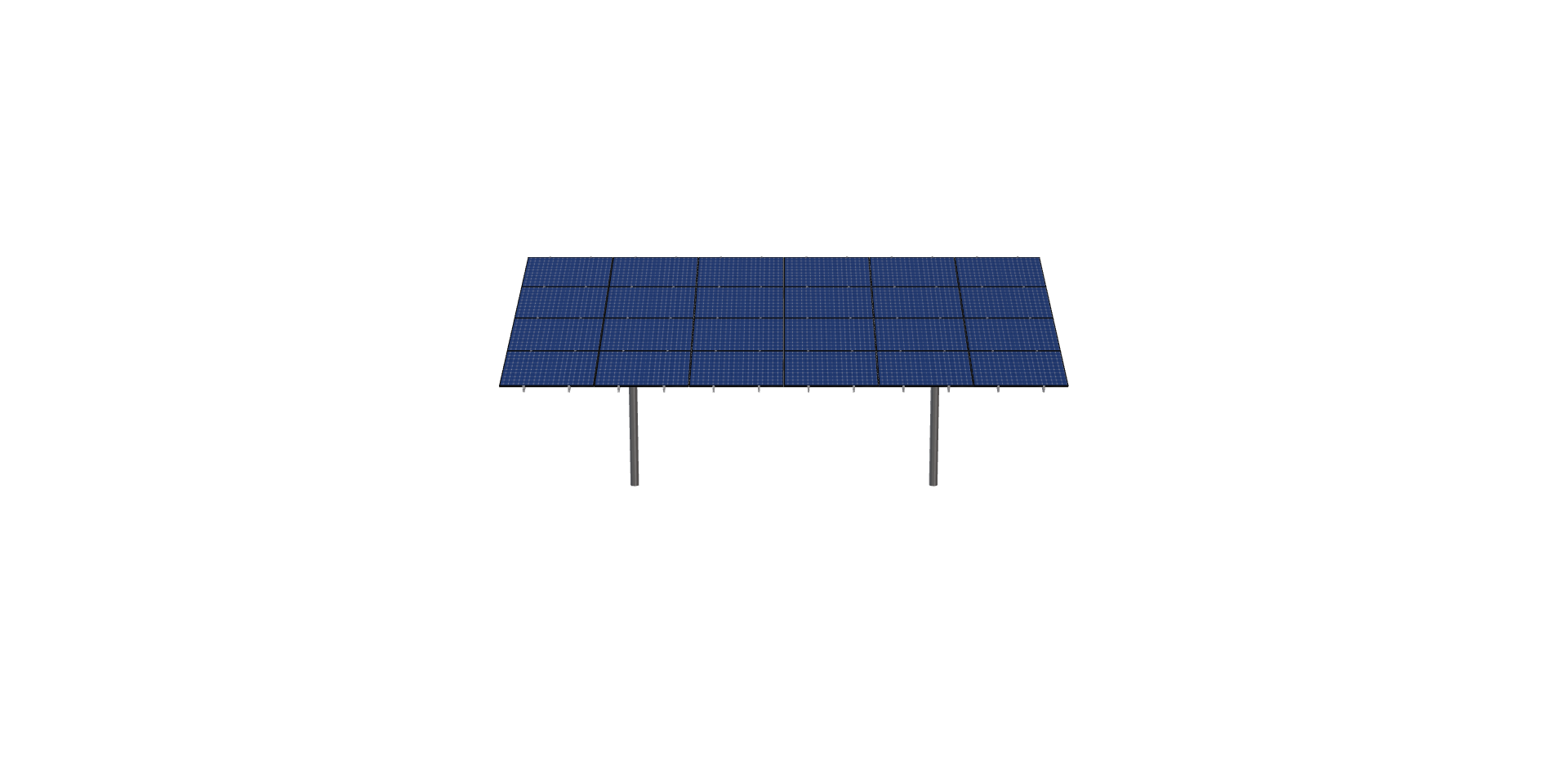

This Pole Mount is designed for modules with dimensions of 69″ by 41.5″ and an array layout of 4 high by 6 wide.
This mount fits on 2 – 8in Sch 40 steel poles with a spacing of 19.75′ (not included).
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-19.75-8TOP-HD-45-L-4Hx6W-E35F - No Rails Category:

Description

This Pole Mount is designed for modules with dimensions of 69″ by 41.5″ and an array layout of 4 high by 6 wide.
This mount fits on 2 – 8in Sch 40 steel poles with a spacing of 19.75′ (not included).
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1712.52 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-8TOP-HD-45-L-4HX6W-E35F

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

10.50

WING SPAN

45.00

MAX FOUNDATION DEPTH

9.00

TILT ANGLE

30.00

CANTILEVER

417.00

GROUND CLEARANCE

7.00

NO POLES

2.00

MODULE AREA

490.00

ARRAY WIDTH

35.00

ARRAY HEIGHT

14.00

RAIL LENGTH

168.00

MODULE LENGTH

69.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.75

GROUND TO TOP

13.96

PROJECTED PANEL HEIGHT

6.92

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 5IED3A5EJ6GF

SITE ADDRESS

43903, HUNTERS, HILL, LN, LEONARDTOWN, MD, 20650, USA

MODULE WIDTH

41.50

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

9368.94

TOTAL WEIGHT

1712.52

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/edcee5ff-1733-4696-b5b8-dd392c7f55dd.pdf

ID

6552.00
