MTSOLAR_659DF0FLG93A

$30,268.33

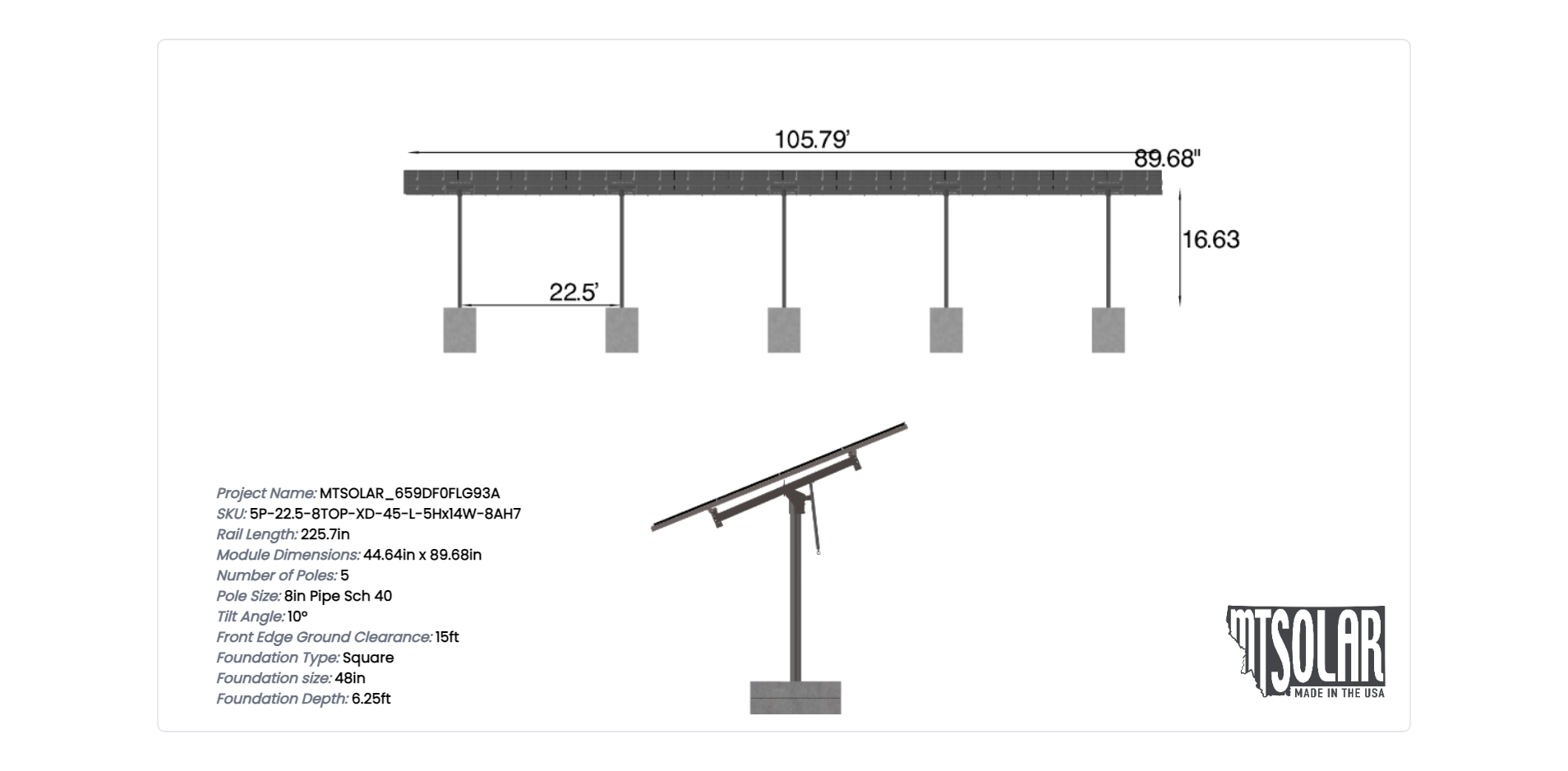

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 5P-22.5-8TOP-XD-45-L-5Hx14W-8AH7 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 6182.31 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

5P-22.5-8TOP-XD-45-L-5HX14W-8AH7

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

5.00

POLE SPACING

22.50

POLE HEIGHT

16.63

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

10.00

CANTILEVER

1260.00

GROUND CLEARANCE

15.00

NO POLES

5.00

MODULE AREA

1989.80

ARRAY WIDTH

105.79

ARRAY HEIGHT

18.81

RAIL LENGTH

225.70

MODULE LENGTH

89.68

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

105.00

GROUND TO TOP

18.25

PROJECTED PANEL HEIGHT

3.23

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 659DF0FLG93A

SITE ADDRESS

SCHAUMBURG, IL, USA

MODULE WIDTH

44.64

NUMBER ROWS

5.00

NUMBER COLUMNS

14.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

30268.33

TOTAL WEIGHT

6182.31

TOTAL PALLETS

5.00
