This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 89.73 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

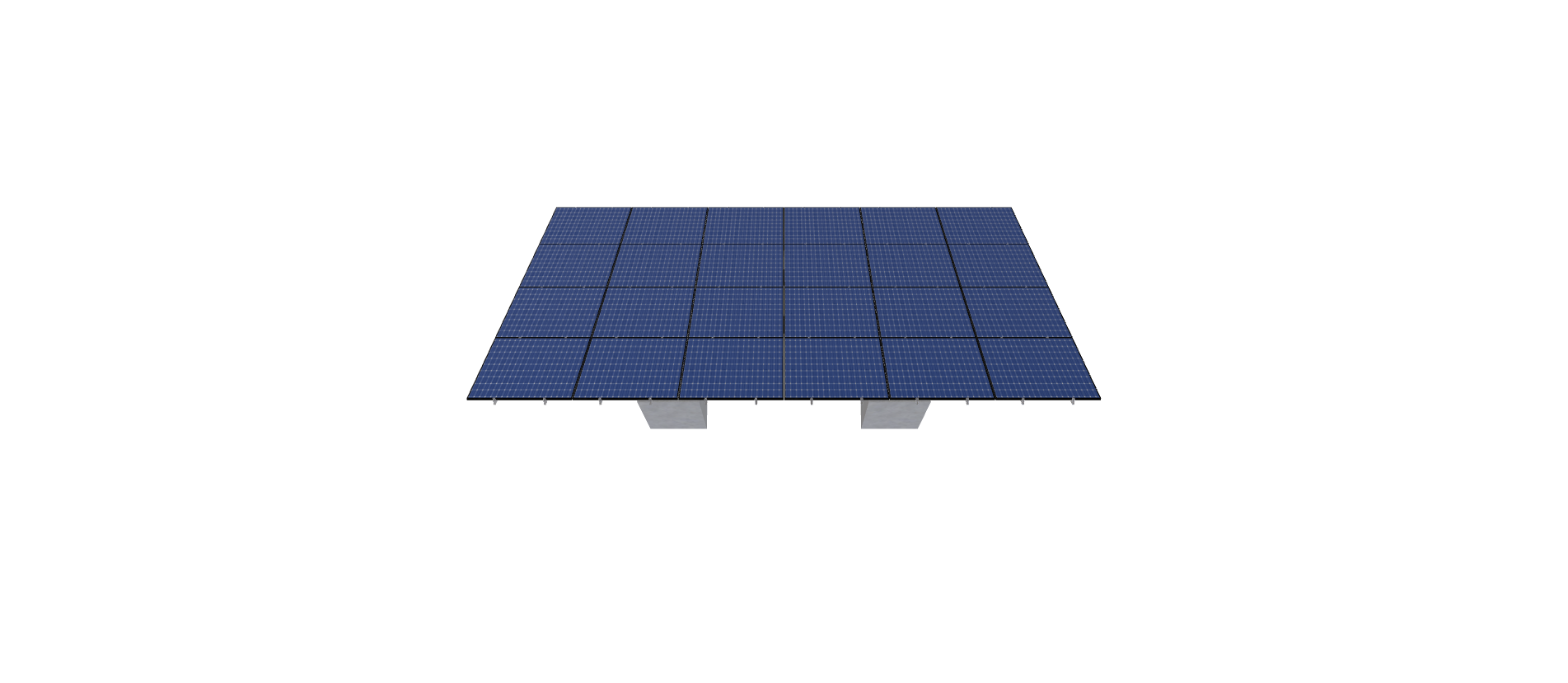

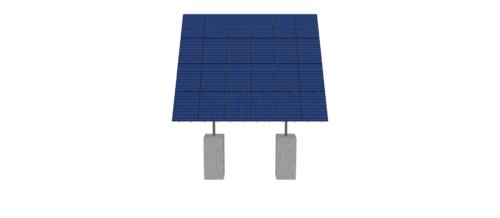

See 3D Model Here
MTSOLAR_7A87K401B0KB-Alan-3MW-4×6
$10,344.10
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 89.73 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1898.0199999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-10TOP-XD-45-L-4HX6W-C0GB |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 16.52 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 10.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 992.53 |
| ARRAY WIDTH | 33.00 |
| ARRAY HEIGHT | 30.08 |
| RAIL LENGTH | 360.92 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 28.04 |
| PROJECTED PANEL HEIGHT | 23.04 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 7A87K401B0KB-ALAN-3MW-4X6 |
| SITE ADDRESS | JOHNSTOWN, PA, 15901, USA |
| MODULE WIDTH | 89.73 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10344.10 |
| TOTAL WEIGHT | 1898.02 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/d851c204-8c00-42c1-ac41-dfa662cbe595.pdf |
|
| ID | 8551.00 |
| 3D Solar link |
