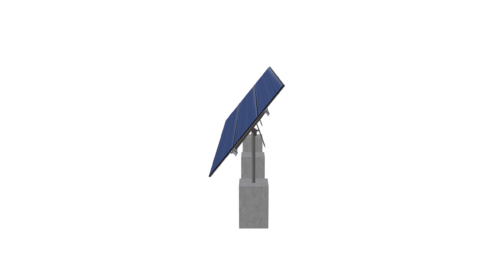

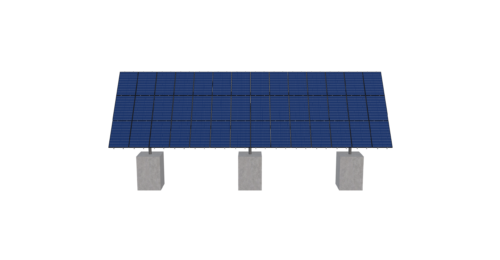

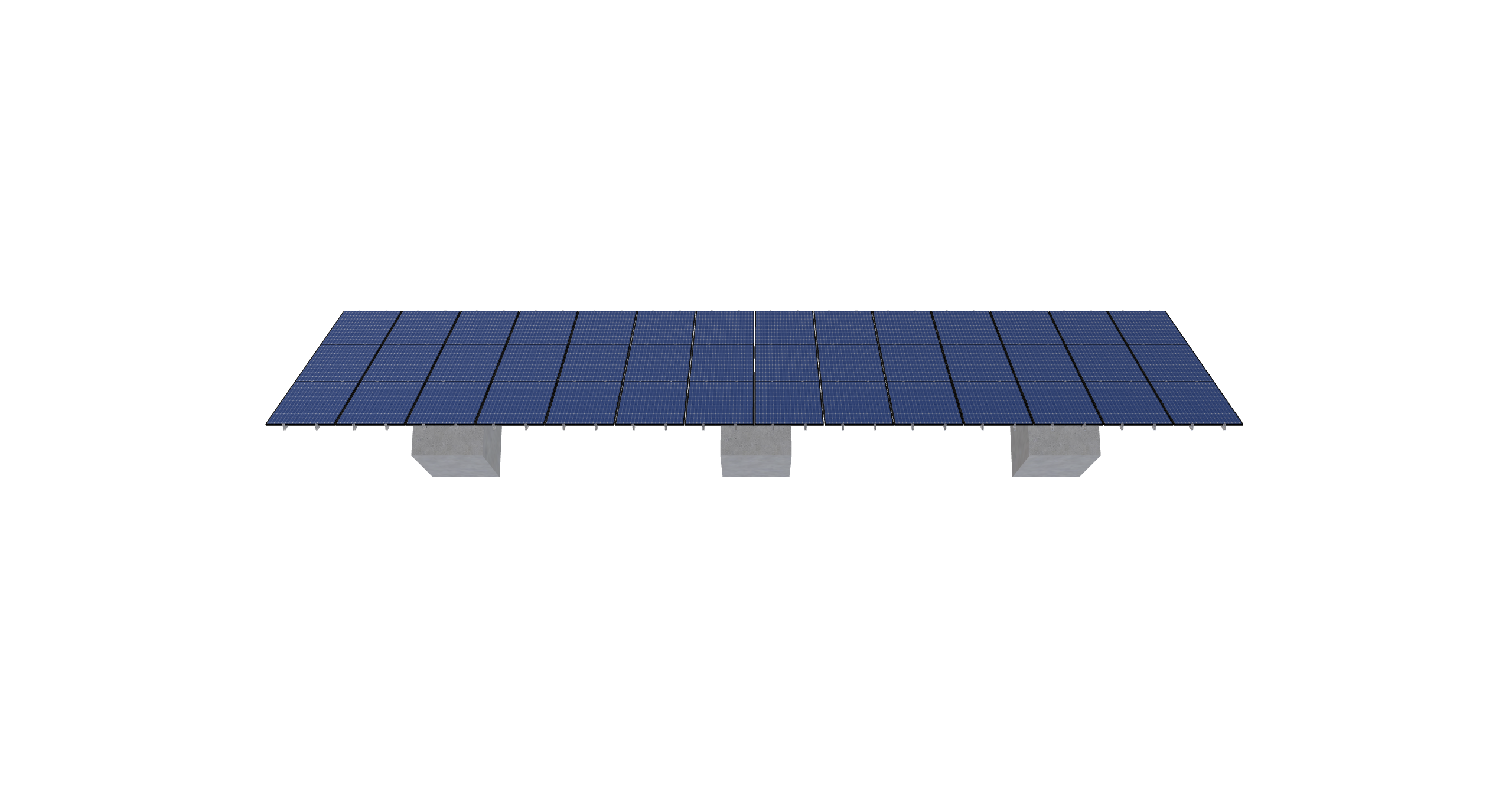

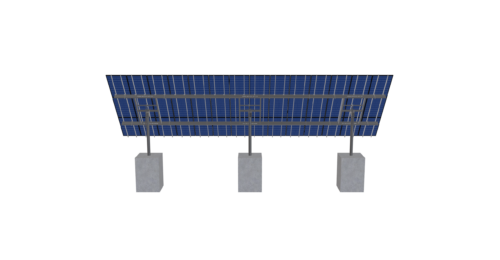

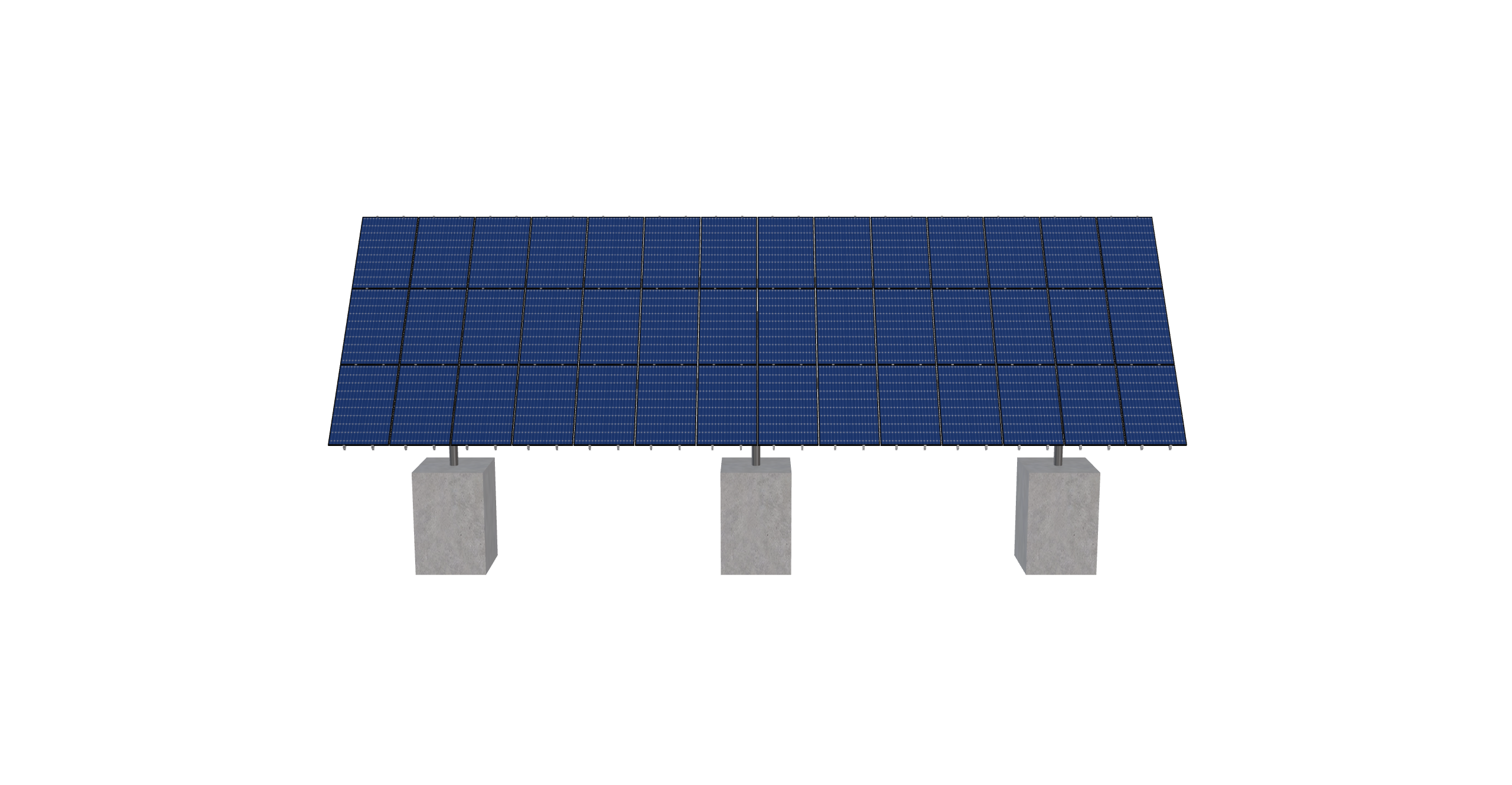

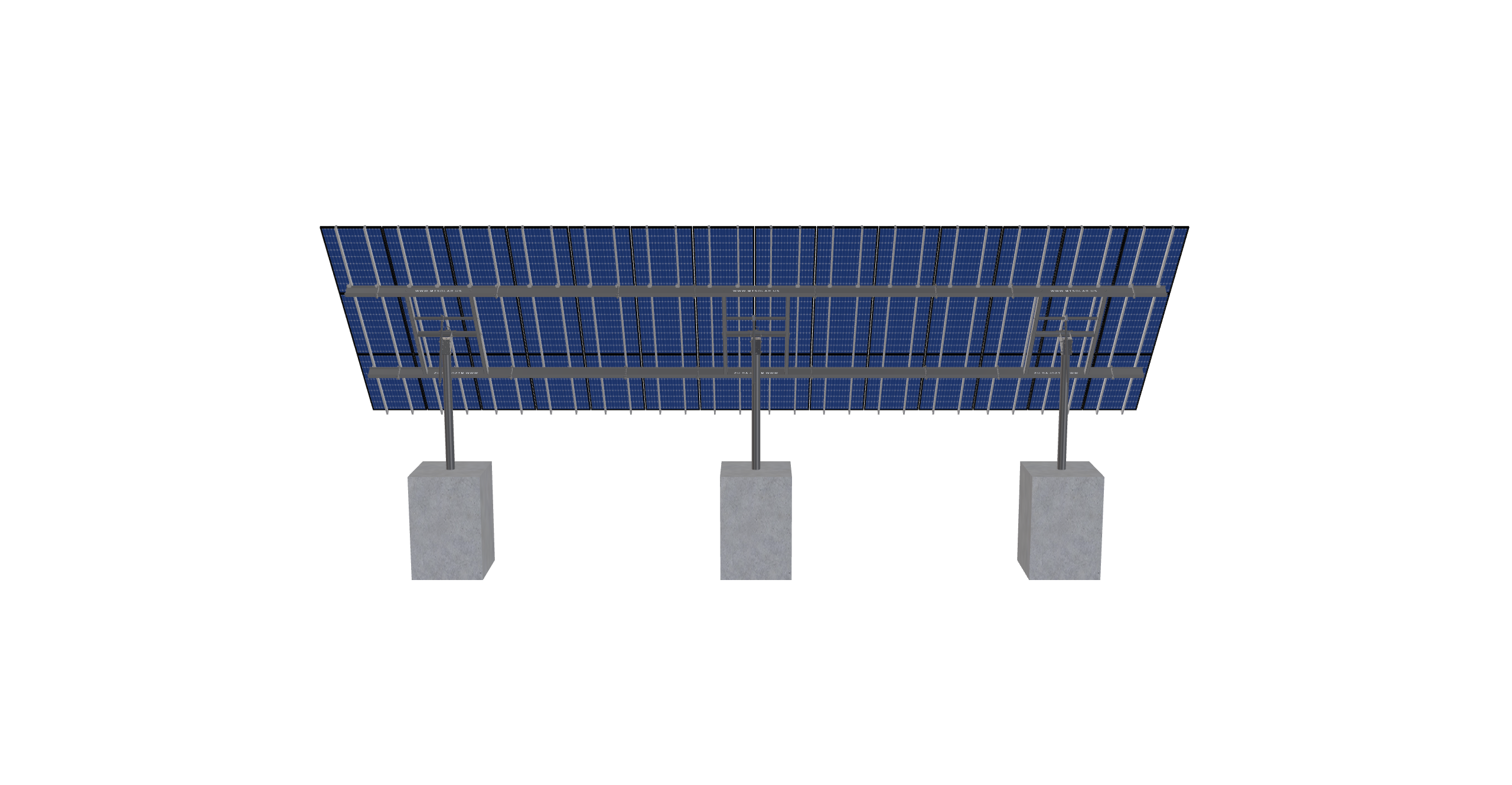

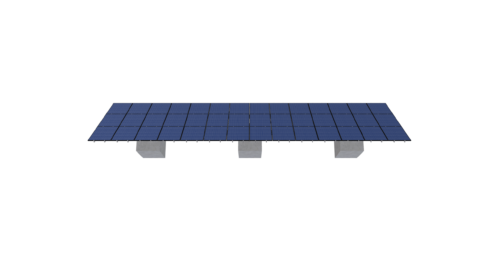

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.6 inches by 68.6 inches and an array layout of 14 wide by 3 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_7BCCF9F75DK89
$14,845.75
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.6 inches by 68.6 inches and an array layout of 14 wide by 3 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

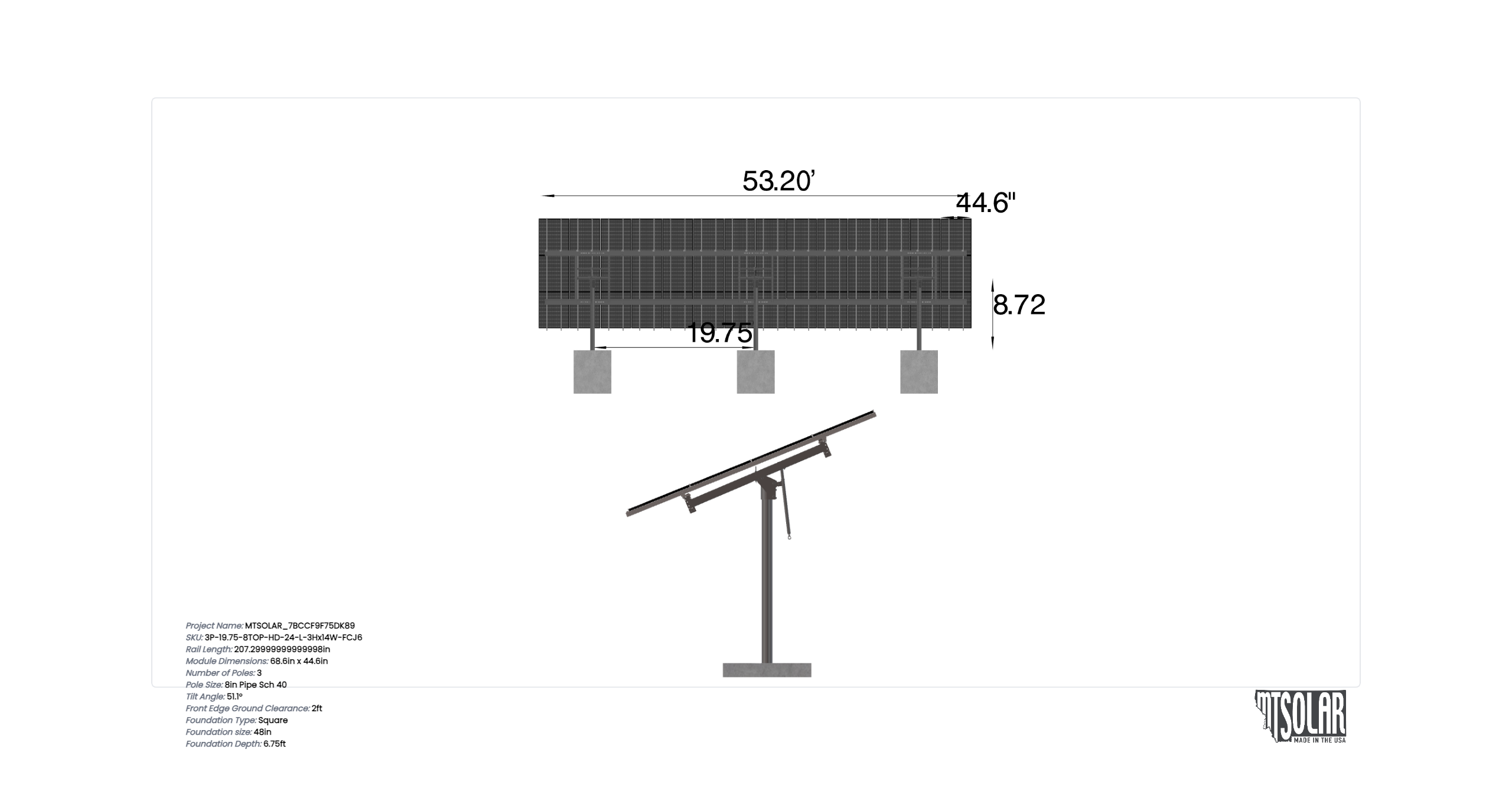

| Weight | 2644.61 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-HD-24-L-3HX14W-FCJ6 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.72 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 51.10 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 3.00 |
| MODULE AREA | 919.03 |
| ARRAY WIDTH | 53.20 |
| ARRAY HEIGHT | 17.27 |
| RAIL LENGTH | 207.30 |
| MODULE LENGTH | 44.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 15.40 |
| PROJECTED PANEL HEIGHT | 13.35 |
| PROJECT ID | MTSOLAR, 7BCCF9F75DK89 |
| SITE ADDRESS | 126, BUSH, HILL, RD, HUDSON, NH, 03051, USA |
| MODULE WIDTH | 68.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 14845.75 |
| TOTAL WEIGHT | 2644.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/3330f795-b1e8-4ea1-a1b1-e3a74e6f3b24.pdf |
|
| ID | 3417.00 |
| 3D Solar link |
