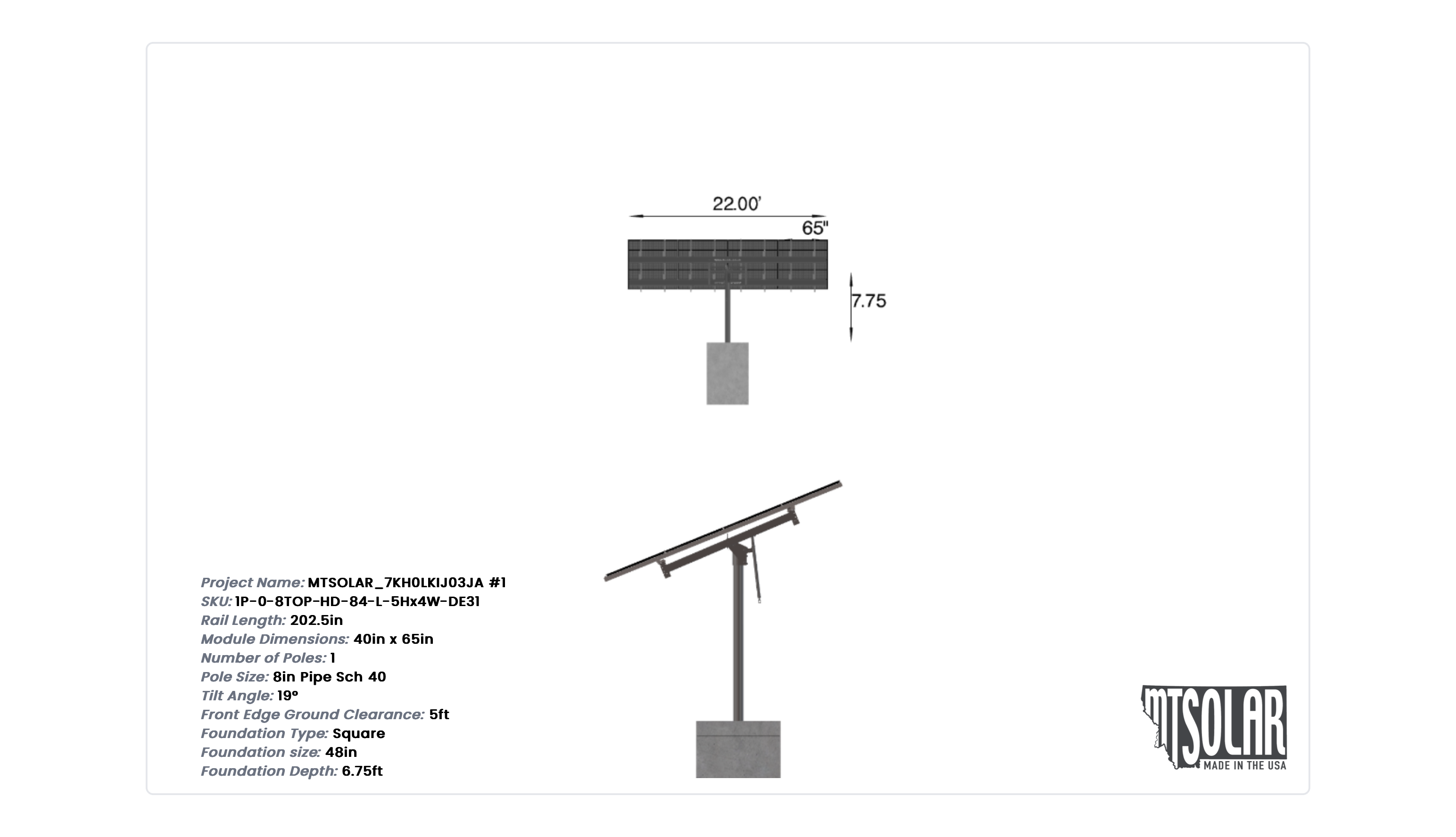

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

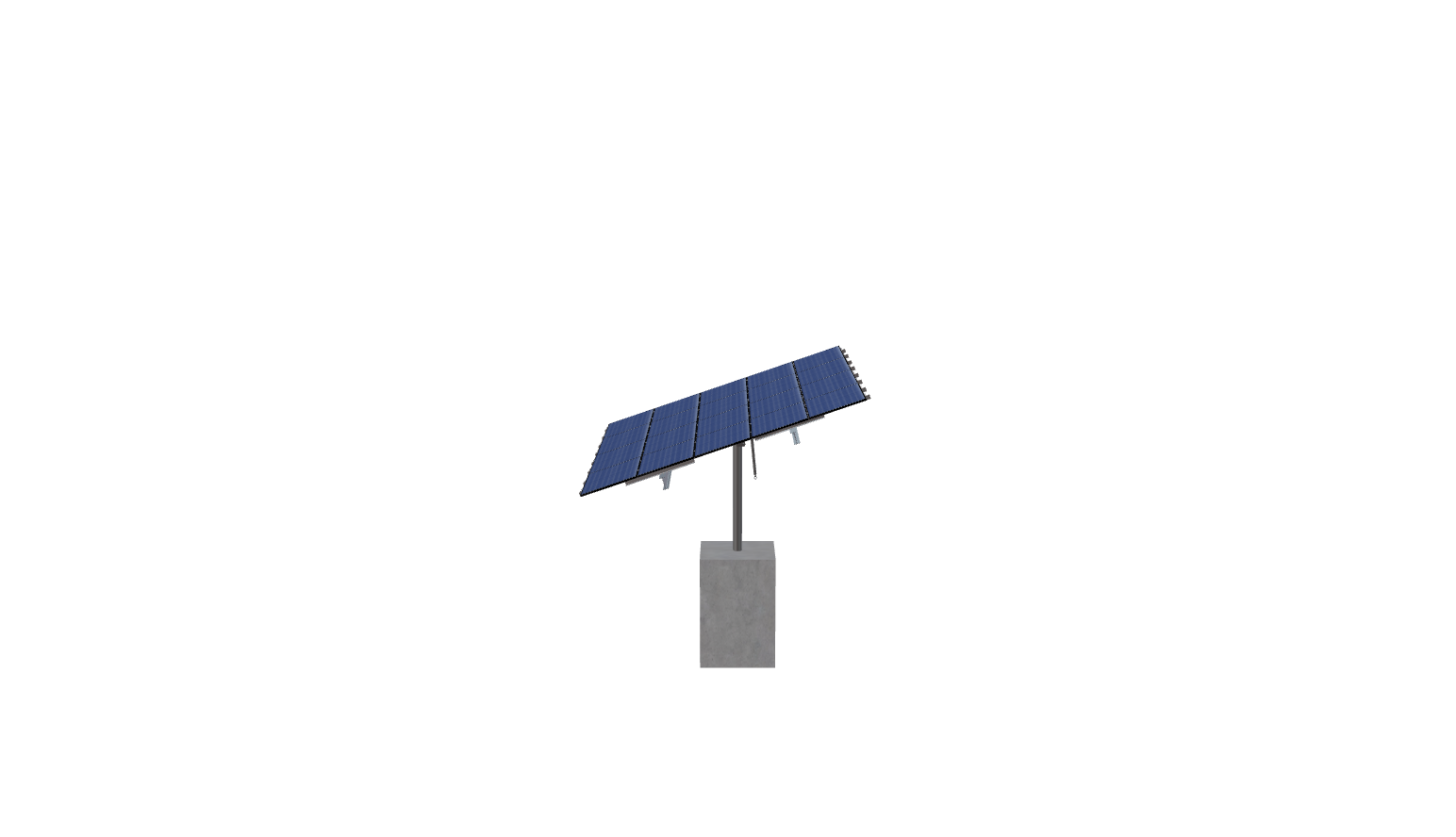

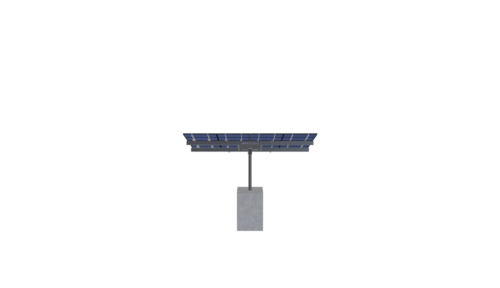

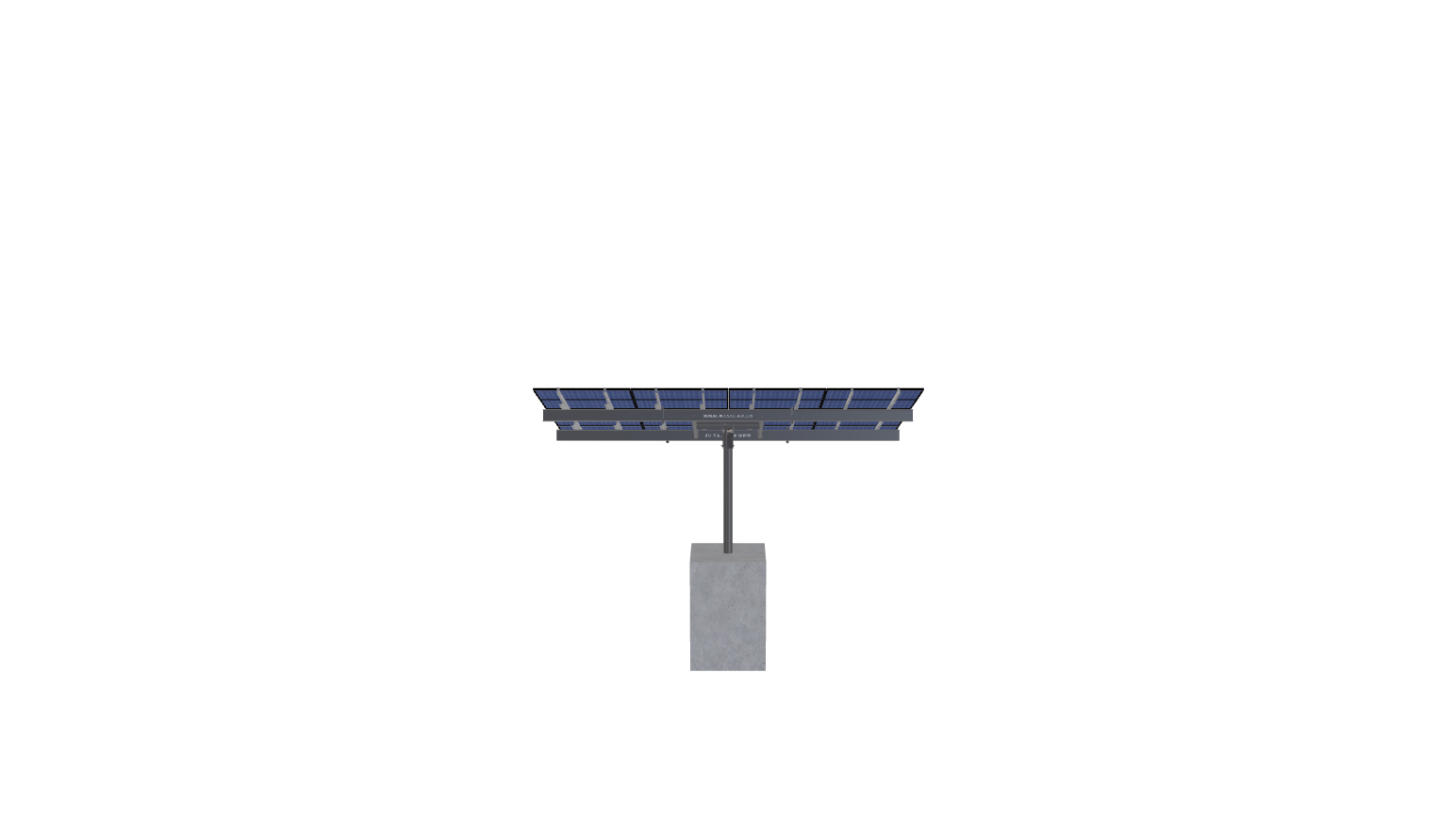

See 3D Model Here
MTSOLAR_7KH0LKIJ03JA #1
$6,001.91
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1222.57 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-8TOP-HD-84-L-5HX4W-DE31 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 7.75 |
WING SPAN | 84.00 |
MAX FOUNDATION DEPTH | 6.75 |
TILT ANGLE | 19.00 |
CANTILEVER | 258.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 1.00 |
MODULE AREA | 371.25 |
ARRAY WIDTH | 22.00 |
ARRAY HEIGHT | 16.88 |
RAIL LENGTH | 202.50 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 21.50 |
GROUND TO TOP | 10.49 |
PROJECTED PANEL HEIGHT | 5.49 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
DESIGNER NAME | OMAR |
DESIGNER EMAIL | |
DESIGNER PHONE | 5046103543.00 |
PROJECT ID | MTSOLAR, 7KH0LKIJ03JA, #1 |
SITE ADDRESS | 1011, E, YONGE, ST, PENSACOLA, FL, 32503, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 6001.91 |
TOTAL WEIGHT | 1222.57 |
TOTAL PALLETS | 1.00 |
