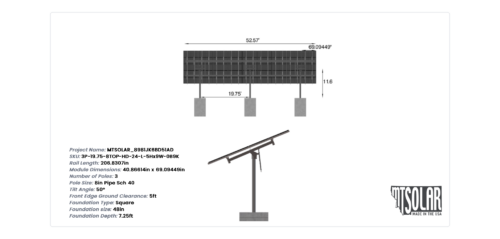

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.09449 inches by 40.86614 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

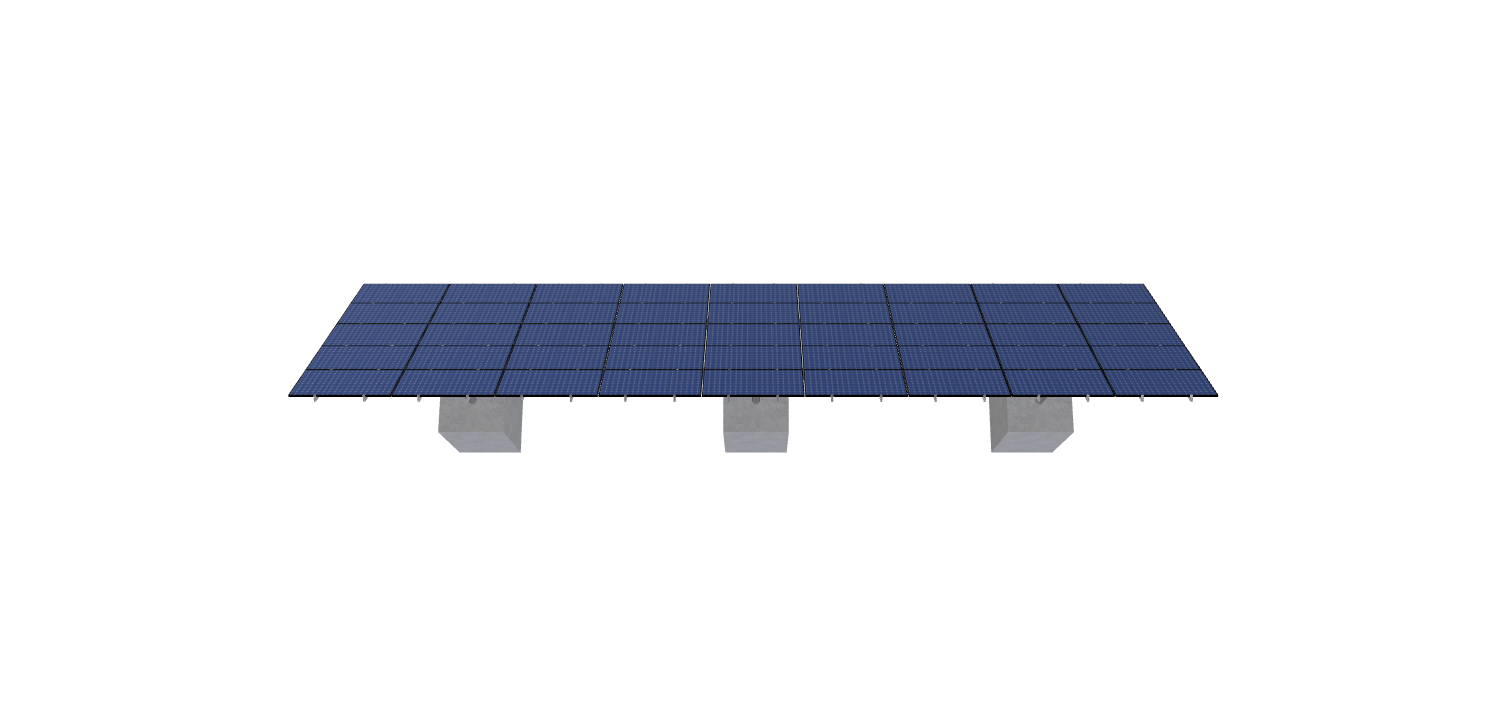

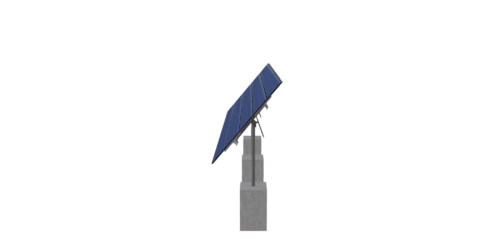

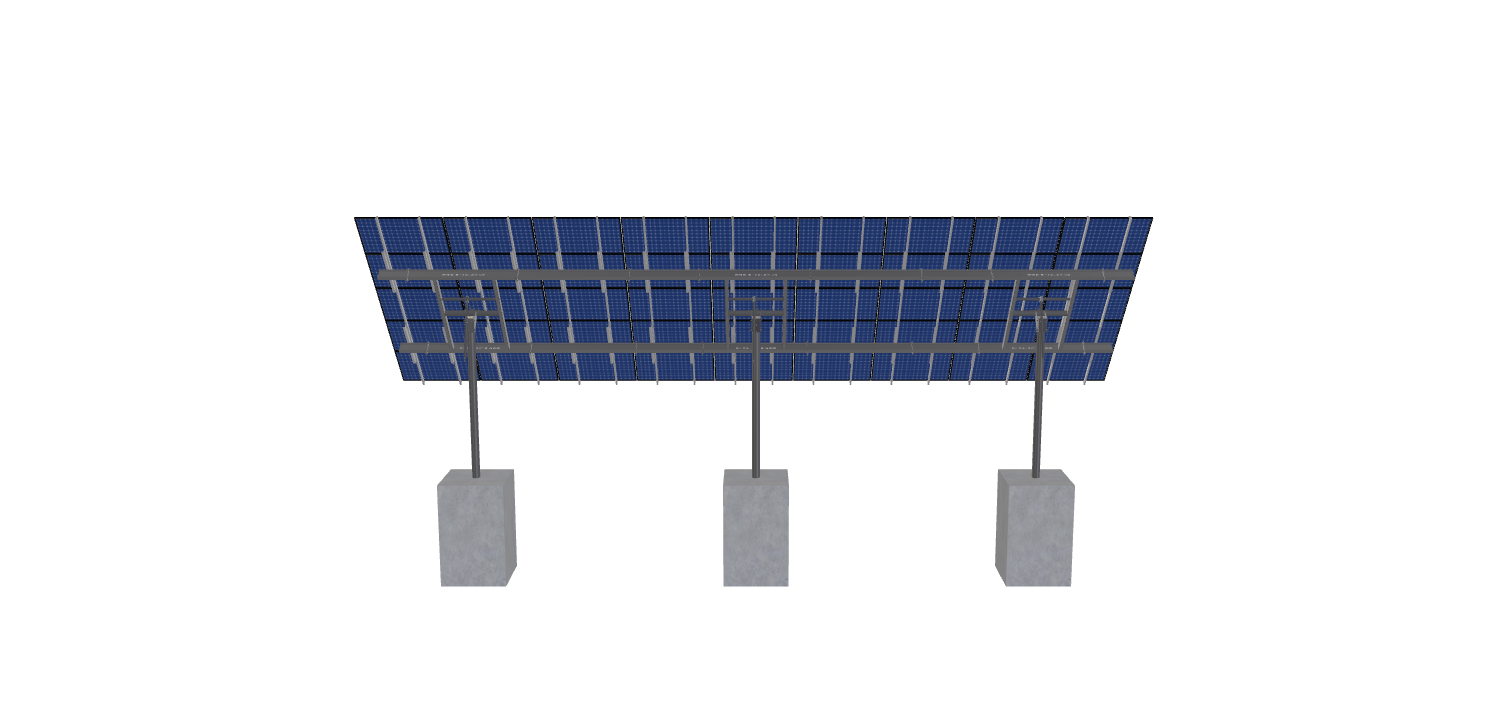

See 3D Model Here
MTSOLAR_8981JK6BD51AD
$15,682.80
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.09449 inches by 40.86614 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3138.69 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-HD-24-L-5HX9W-0B9K |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.60 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 906.11 |
| ARRAY WIDTH | 52.57 |
| ARRAY HEIGHT | 17.24 |
| RAIL LENGTH | 206.83 |
| MODULE LENGTH | 69.09 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 18.12 |
| PROJECTED PANEL HEIGHT | 13.04 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | SERGIO, LOERA |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4048258101.00 |
| PROJECT ID | MTSOLAR, 8981JK6BD51AD |
| SITE ADDRESS | 191, MAPLE, DR, JENKINSBURG, GA, 30234, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15682.80 |
| TOTAL WEIGHT | 3138.69 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/6194fed4-a915-46b8-b09f-a096421efdaa.pdf |
|
| ID | 7946.00 |
| 3D Solar link |
