MTSOLAR_8I6C98G0FDG7B – V1JB

$13,204.26

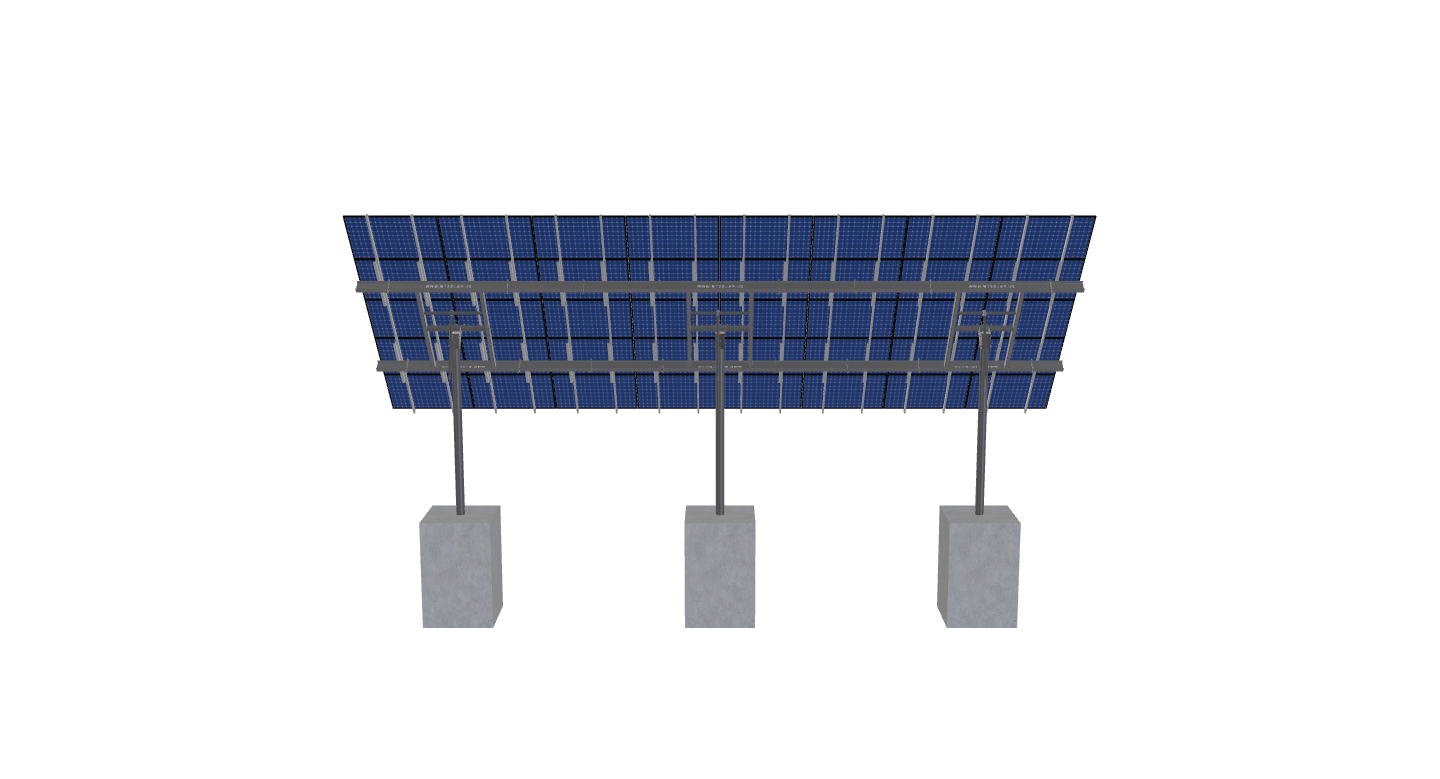

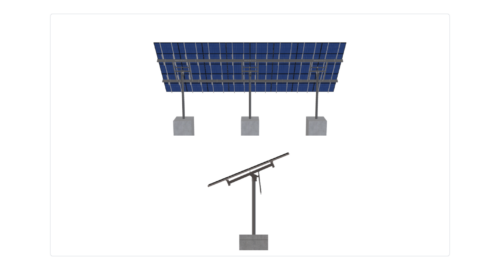

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-17-8TOP-SD-24-L-5Hx8W-H5F1 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2569.52 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-8TOP-SD-24-L-5HX8W-H5F1

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

12.20

WING SPAN

24.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

50.00

CANTILEVER

546.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

861.91

ARRAY WIDTH

45.87

ARRAY HEIGHT

18.79

RAIL LENGTH

225.50

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

45.50

GROUND TO TOP

19.32

PROJECTED PANEL HEIGHT

14.24

WIND SPEED OVERRIDE

101.00

SNOW LOAD OVERRIDE

28.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 8I6C98G0FDG7B, -, V1JB

SITE ADDRESS

8400, THEISEN, RD, BELGRADE, MT, 59714, USA

MODULE WIDTH

44.60

NUMBER ROWS

5.00

NUMBER COLUMNS

8.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

13204.26

TOTAL WEIGHT

2569.52

TOTAL PALLETS

3.00
