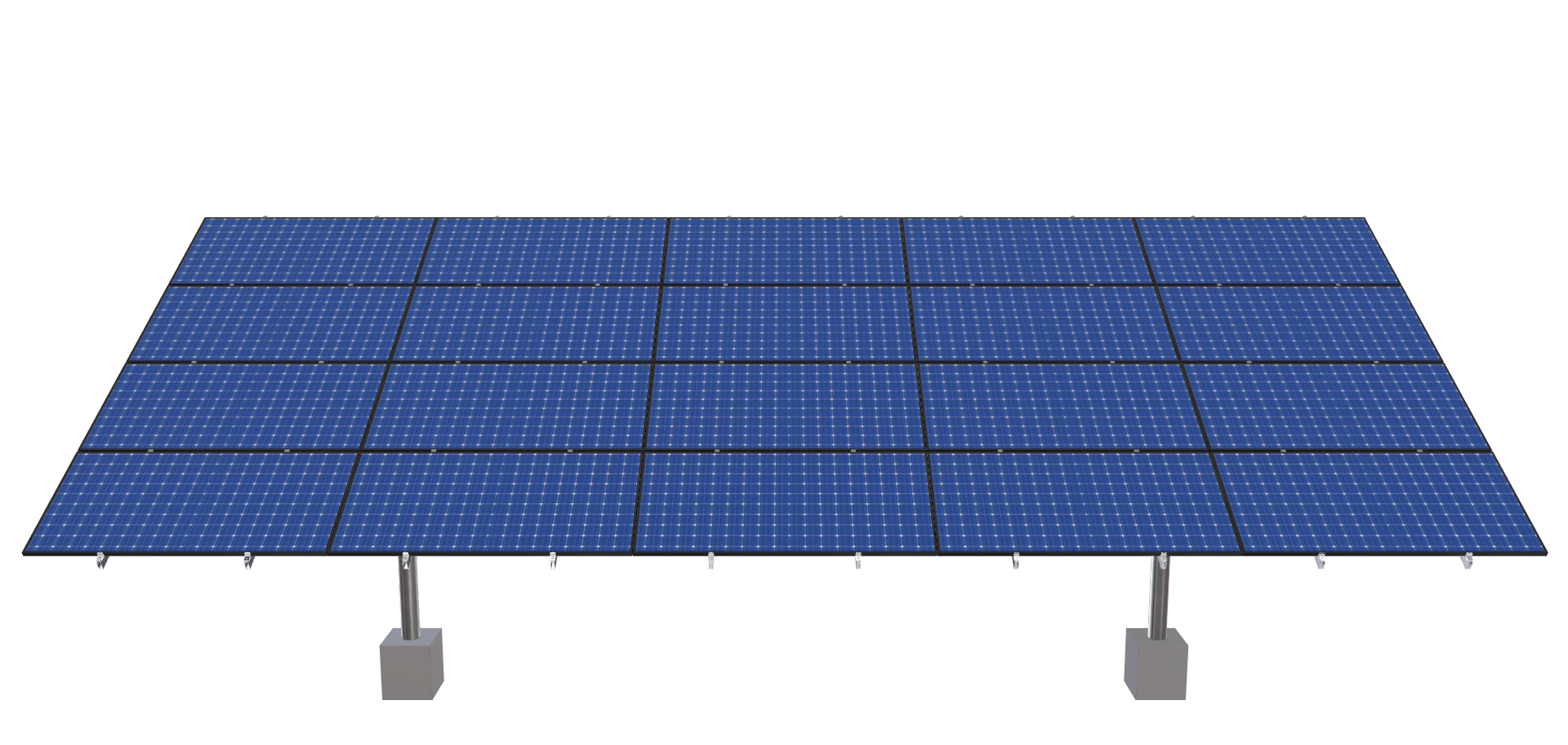

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.7 inches by 44.7 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
MTSOLAR_8K02EIALKE1H2_16_2023__8%3A20%3A53_AM
$9,128.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.7 inches by 44.7 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
Weight | 1700.28 lbs |
---|---|
SKU CODE | 2P-22.5-6TOP-HD-45-L-4HX5W |
DUTY SIZE | HD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 7.77 |
WING SPAN | 45.00 |
FOUNDATION DEPTHS | [OBJECT, OBJECT] |
MAX FOUNDATION DEPTH | 5.75 |
TILT ANGLE | 30.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 2.00 |
MODULE AREA | 569.39 |
ARRAY WIDTH | 37.79 |
ARRAY HEIGHT | 15.07 |
RAIL LENGTH | 180.80 |
MODULE LENGTH | 89.70 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 11.49 |
PROJECTED PANEL HEIGHT | 7.45 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | MTSOLAR, 8K02EIALKE1H |
SITE ADDRESS | S, 10TH, ST, W, MISSOULA, MT, USA |
MODULE WIDTH | 44.70 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 5.00 |
MAIN PIPE SECTION | 2, 12GA |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 9128.31 |
TOTAL WEIGHT | 1700.28 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/18f7a2d3-aa44-4092-b125-c1c6e0b270c2.pdf |
|
ID | 271.00 |
_length | 90 |
_width | 24 |
_height | 24 |
_ltl_freight | 65 |
_nmfc_number | 160270 |
_nestedDimension | length |
