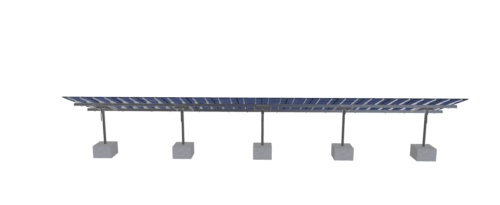

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 16 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_9IJEGHJEE717E
$27,358.87
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 16 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

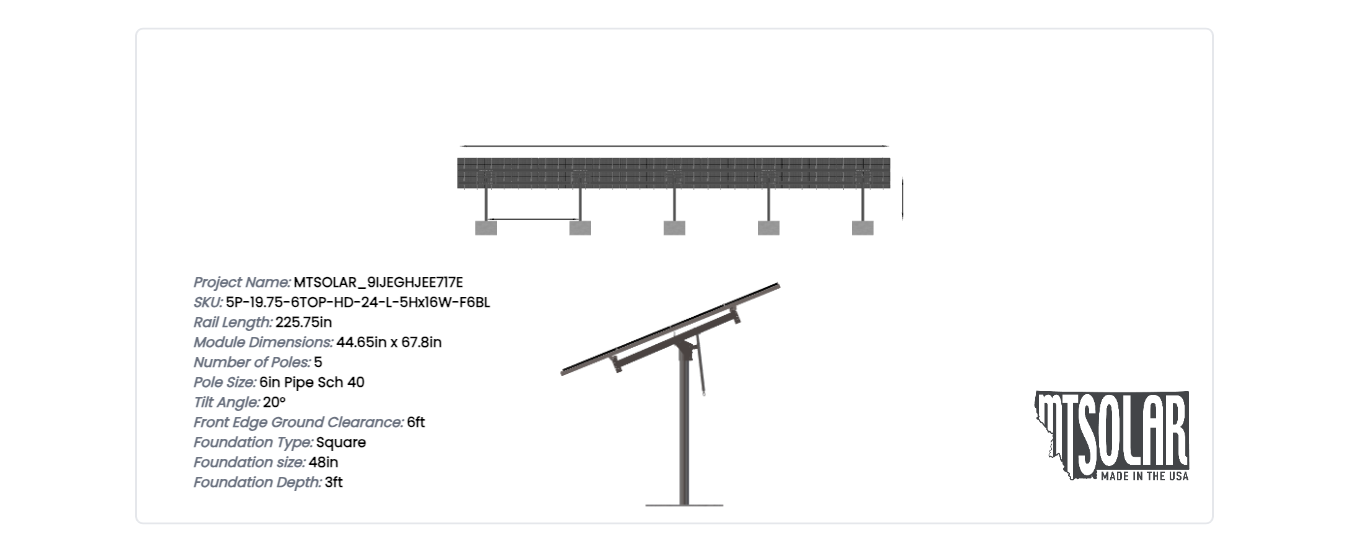

| Weight | 5386.75 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-HD-24-L-5HX16W-F6BL |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.22 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 3.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1725.73 |
| ARRAY WIDTH | 91.73 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 12.40 |
| PROJECTED PANEL HEIGHT | 6.36 |
| DESIGNER NAME | NOMAN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 9IJEGHJEE717E |
| SITE ADDRESS | 179, PACKSADDLE, RD, DERRY, TOWNSHIP, PA, 15717, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 16.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 22.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 27358.87 |
| TOTAL WEIGHT | 5386.75 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/0479bffb-9287-4c8f-9198-7f254c6f62d1.pdf |
|
| ID | 7845.00 |
| 3D Solar link |
