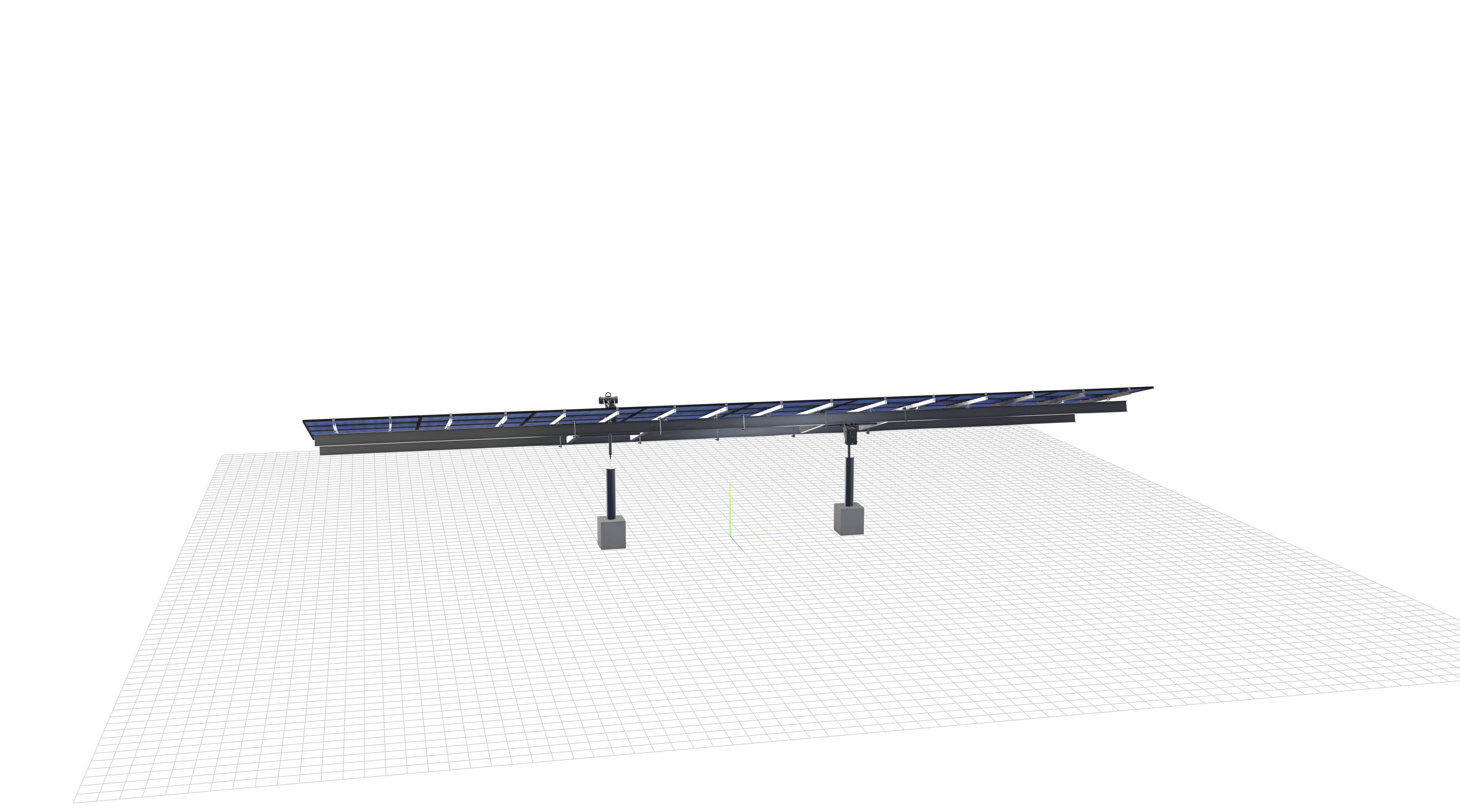

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.4 inches by 41.2 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
MTSOLAR_AEAL806EAKIJ
$11,765.46
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.4 inches by 41.2 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
https://solver.skyciv.com/temp/mergedpdf_bvfpkrnkx2ossg8k.php |
|
| SKU CODE | 3P-17-6TOP-SD-45-L-4Hx8W |
| DUTY SIZE | SD |
| POLE SIZE | 6in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 3 |
| POLE SPACING | 15 |
| POLE HEIGHT | 4.8 |
| WING SPAN | 45 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 15 |
| CANTILEVER | 588 |
| GROUND CLEARANCE | 3 |
| NO POLES | 3 |
| MODULE AREA | 698.7066666666668 |
| ARRAY WIDTH | 50.26666666666667 |
| ARRAY HEIGHT | 13.9 |
| RAIL LENGTH | 166.8 |
| MODULE LENGTH | 74.4 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 49 |
| GROUND TO_TOP | 6.576016473166495 |
| PROJECTED PANEL_HEIGHT | 3.554448219407952 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | MTSOLAR_AEAL806EAKIJ |
| SITE ADDRESS | 1030, Aquino, Cir, Corona, CA, 92879, USA |
| MODULE WIDTH | 41.2 |
| NUMBER ROWS | 4 |
| NUMBER COLUMNS | 8 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 11765.460000000001 |
| TOTAL WEIGHT | 2073.76 |
| TOTAL PALLETS | 3 |
| ID | 92 |
