MTSOLAR_AG02J8J6JL6

$20,511.12

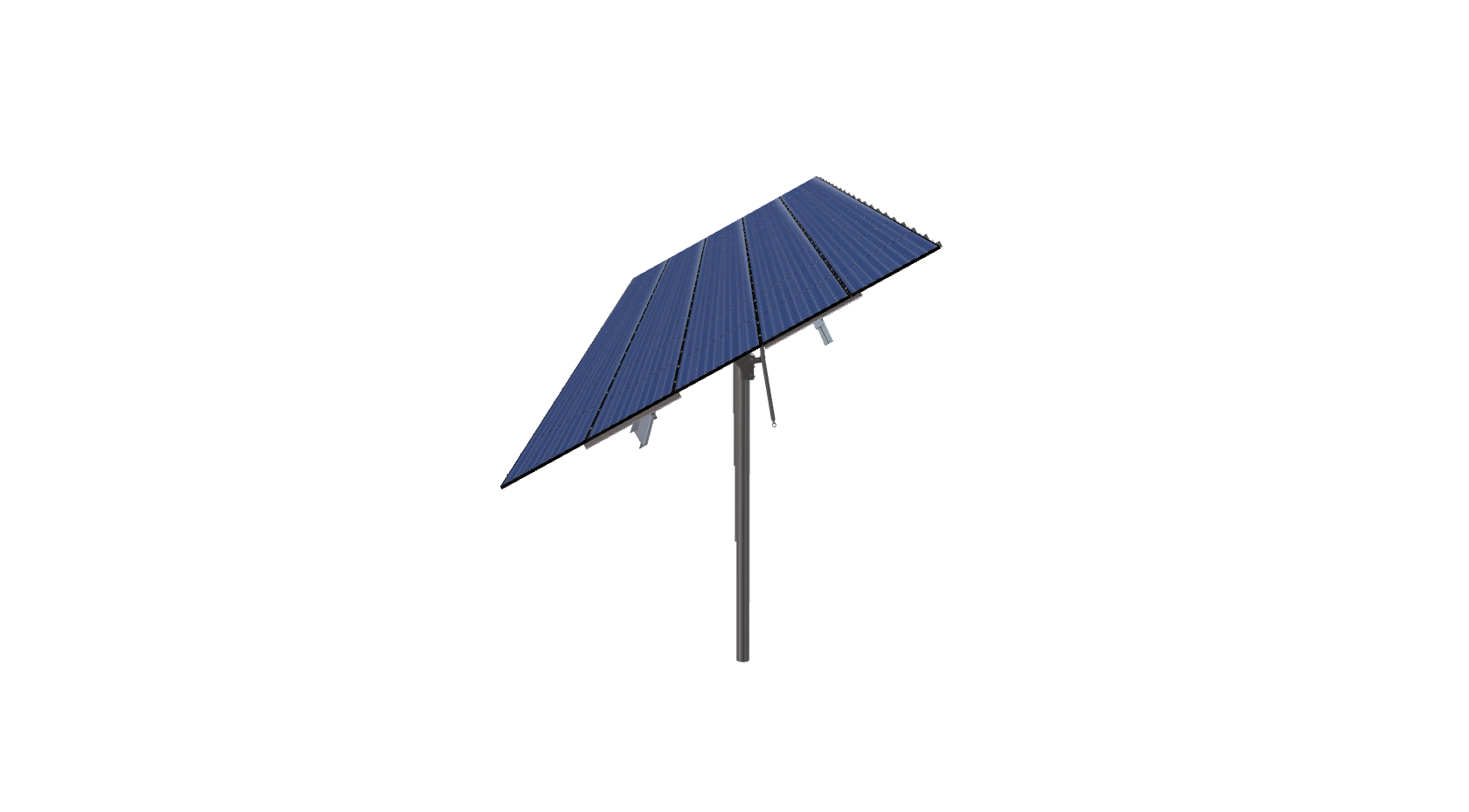

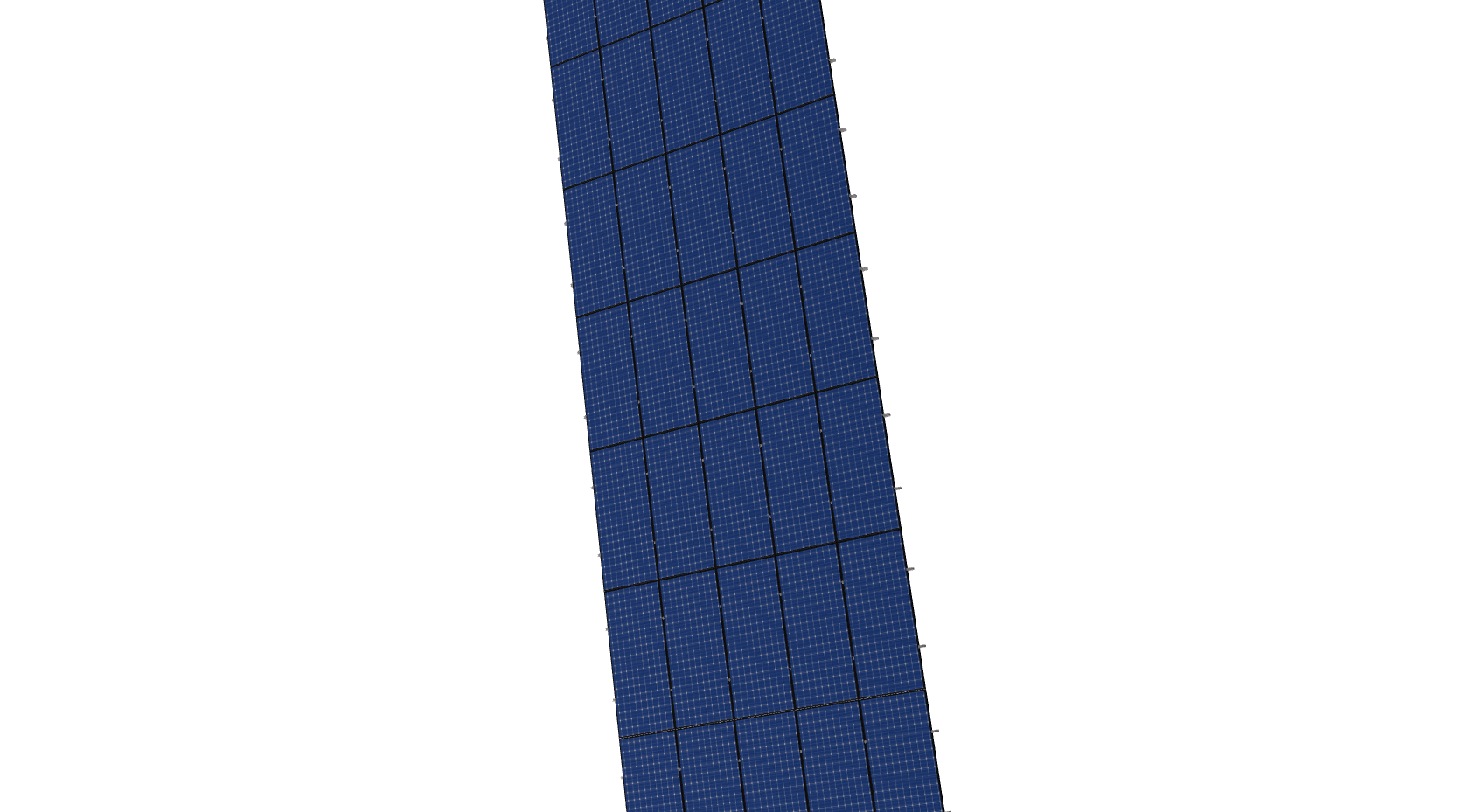

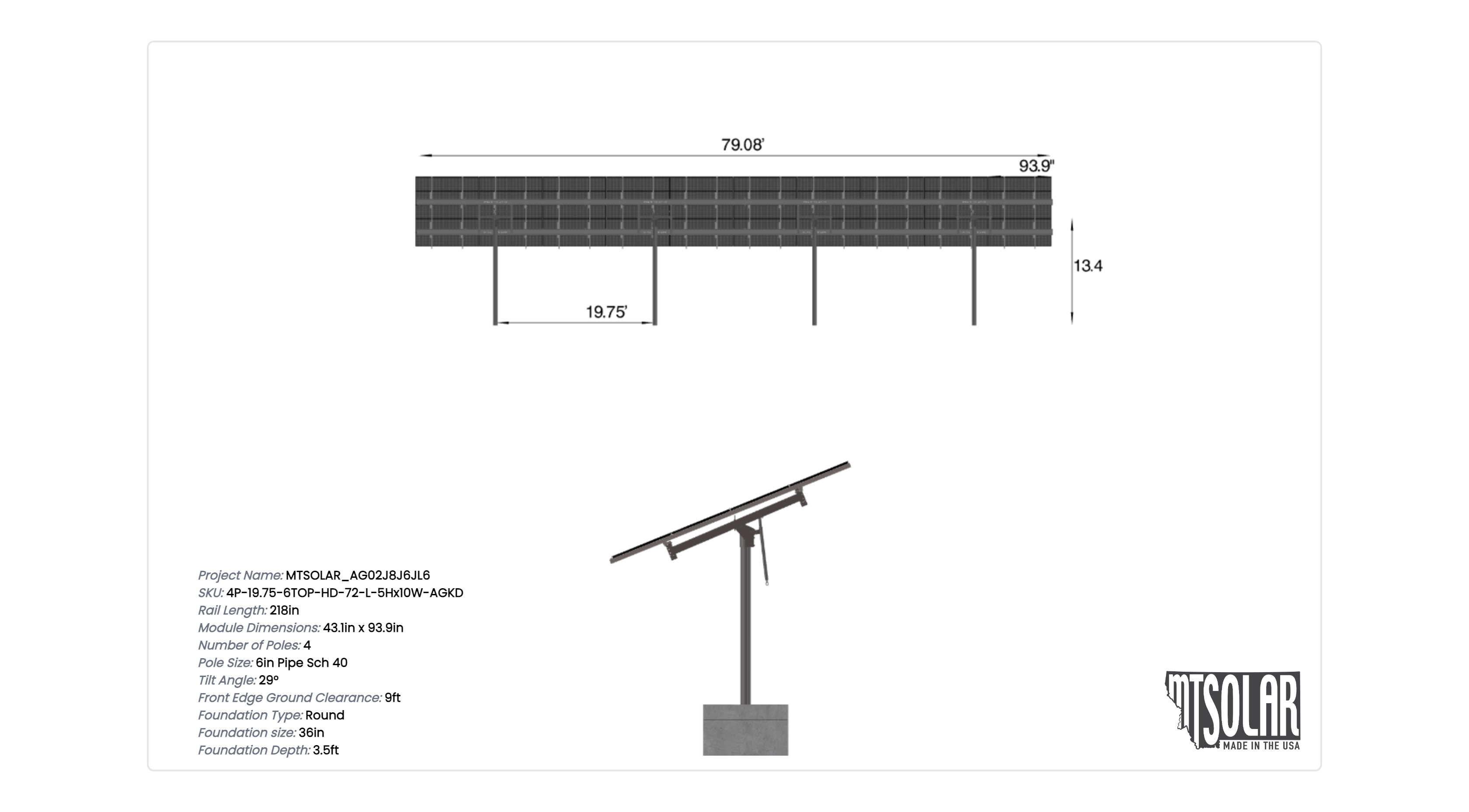

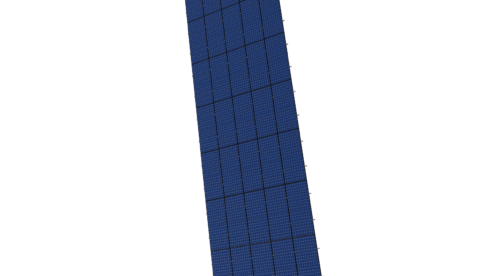

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.9 inches by 43.1 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-19.75-6TOP-HD-72-L-5Hx10W-AGKD Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.9 inches by 43.1 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4146.54 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-6TOP-HD-72-L-5HX10W-AGKD

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

13.40

WING SPAN

72.00

MAX FOUNDATION DEPTH

3.50

TILT ANGLE

29.00

CANTILEVER

945.00

GROUND CLEARANCE

9.00

NO POLES

4.00

MODULE AREA

1436.68

ARRAY WIDTH

79.08

ARRAY HEIGHT

18.17

RAIL LENGTH

218.00

MODULE LENGTH

93.90

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

78.75

GROUND TO TOP

17.76

PROJECTED PANEL HEIGHT

8.71

PROJECT ID

MTSOLAR, AG02J8J6JL6

SITE ADDRESS

292, WASHINGTONVILLE, RD, BLOOMSBURG, PA, 17815, USA

MODULE WIDTH

43.10

NUMBER ROWS

5.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

5.60

SNOW LOAD OVERRIDE

15.00

DIRECT SNOW LOAD

TRUE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

20511.12

TOTAL WEIGHT

4146.54

TOTAL PALLETS

4.00
