MTSOLAR_B0GK8GGA5LDH

$5,047.25

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 40 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

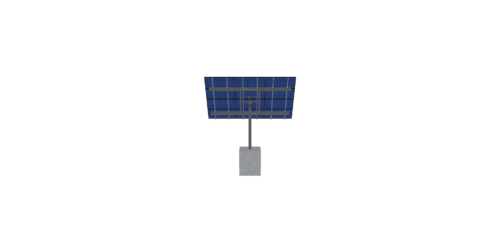

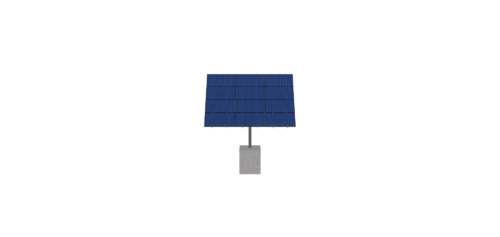

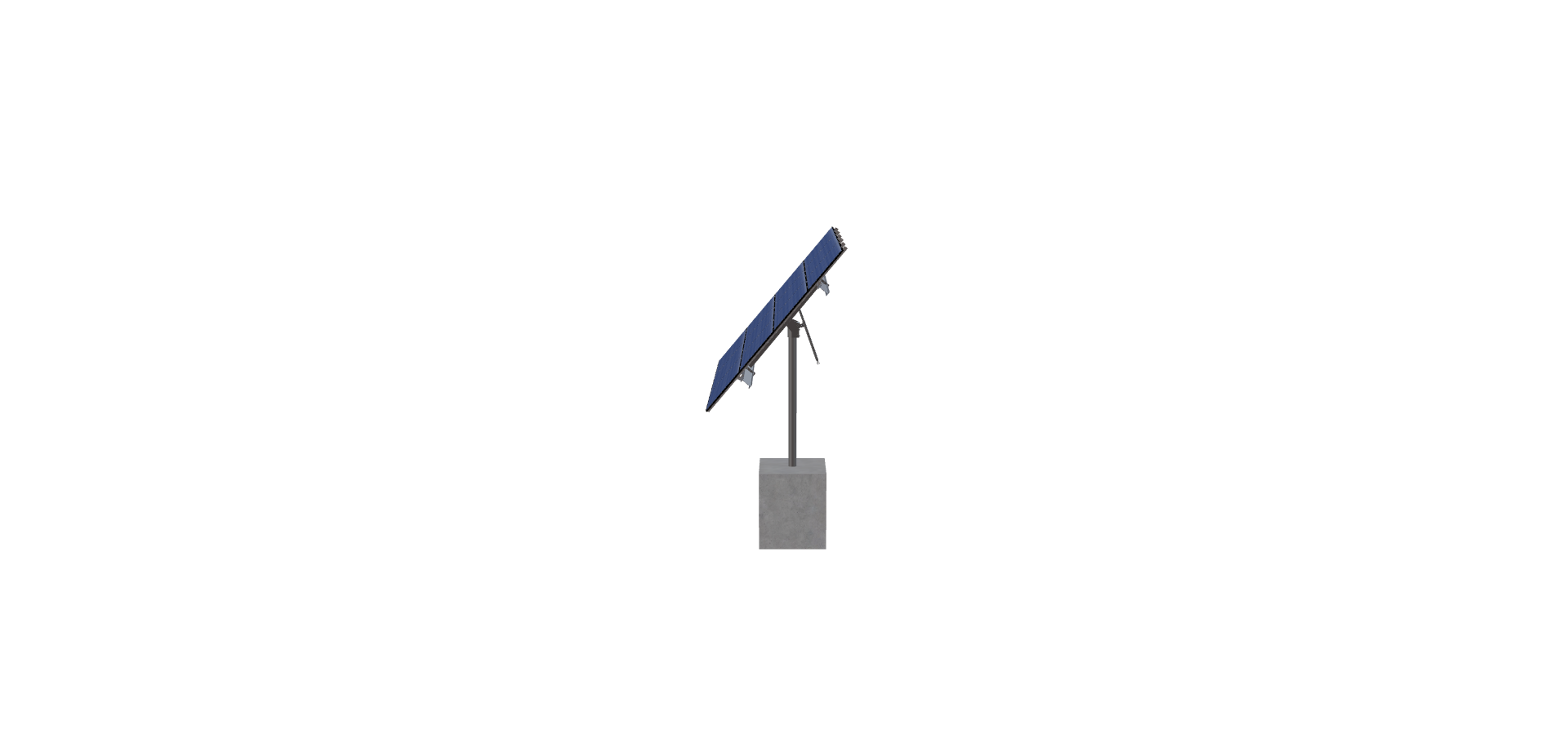

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-XD-57-L-4Hx3W-STRUTS-7A47 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 40 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 926.21 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-XD-57-L-4HX3W-STRUTS-7A47

DUTY SIZE

XD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.17

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.25

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

253.13

ARRAY WIDTH

18.75

ARRAY HEIGHT

13.50

RAIL LENGTH

162.00

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

15.28

PROJECTED PANEL HEIGHT

10.21

PROJECT ID

MTSOLAR, B0GK8GGA5LDH

SITE ADDRESS

37, OCONNELL, RD, BINGHAMTON, NY, 13903, USA

MODULE WIDTH

40.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

80.00

SNOW LOAD OVERRIDE

50.00

DIRECT SNOW LOAD

TRUE

ADD ANGLE BRACE

TRUE

TOTAL PRICE

5047.25

TOTAL WEIGHT

926.21

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/de6c41e5-404f-4607-831f-b62d0fc7f7ac.pdf

ID

7290.00
