This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.9 inches by 44.7 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

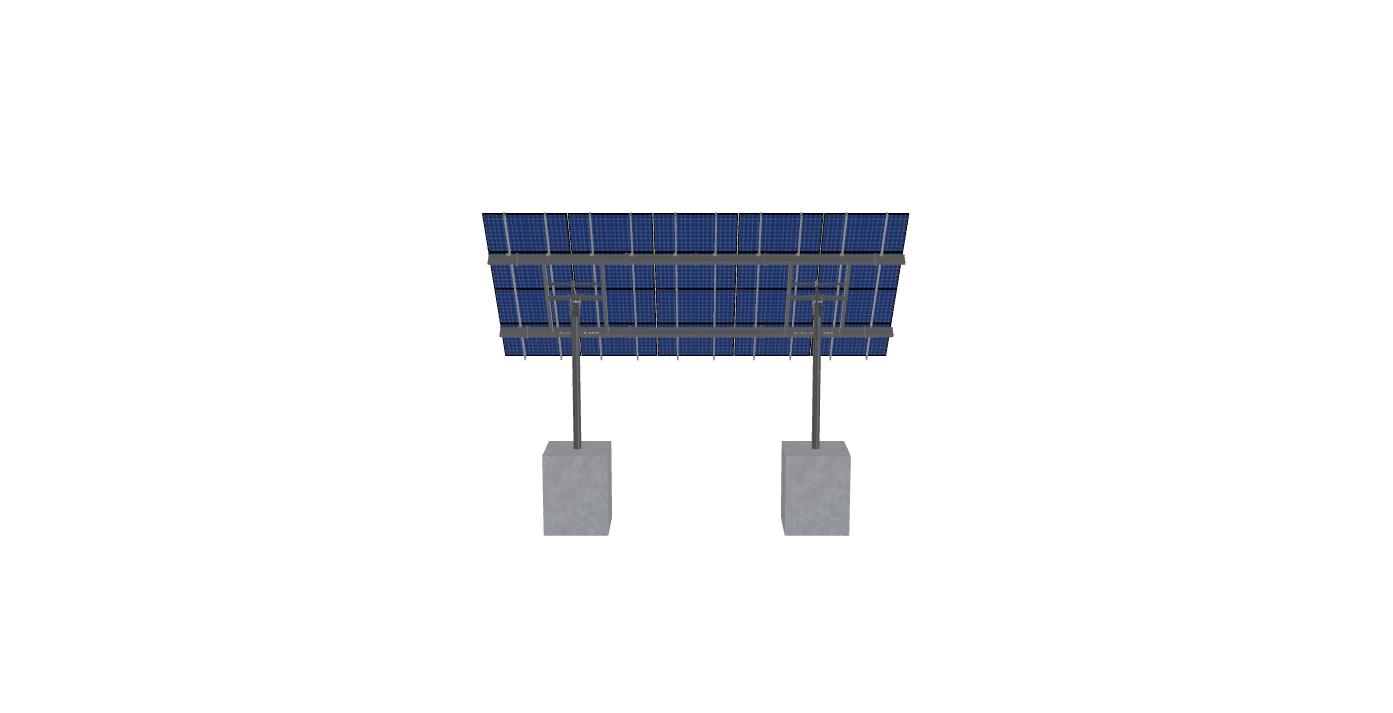

See 3D Model Here
MTSOLAR_B138C35ABKKI
$7,412.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.9 inches by 44.7 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1287.1 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-24-L-4HX5W-J9HG |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.77 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 432.54 |
| ARRAY WIDTH | 28.71 |
| ARRAY HEIGHT | 15.07 |
| RAIL LENGTH | 180.80 |
| MODULE LENGTH | 67.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 16.48 |
| PROJECTED PANEL HEIGHT | 11.41 |
| DESIGNER NAME | MARK |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 3603100286.00 |
| PROJECT ID | MTSOLAR, B138C35ABKKI |
| SITE ADDRESS | 6823, 50TH, LN, NW, OLYMPIA, WA, 98502, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 20.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 7412.92 |
| TOTAL WEIGHT | 1287.10 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/38b5011e-b6e9-483e-8ac3-8f61f49dfe01.pdf |
|
| ID | 8044.00 |
| 3D Solar link |
