This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.25 inches by 45 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

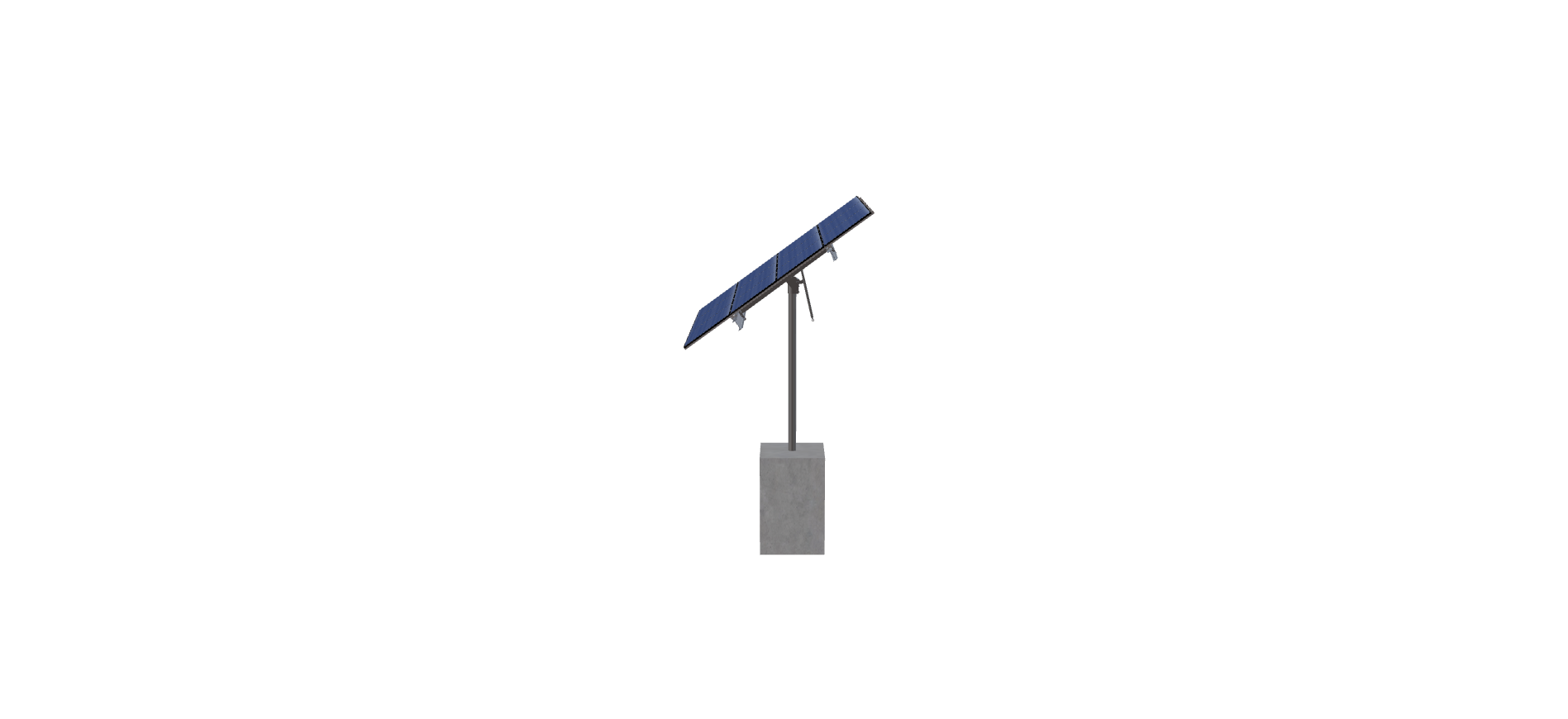

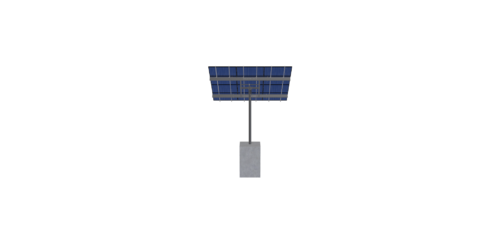

See 3D Model Here

SKU: 1P-0-8TOP-SD-57-L-4Hx3W-4D01 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.25 inches by 45 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 714.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-57-L-4HX3W-4D01

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.46

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

36.00

CANTILEVER

204.00

GROUND CLEARANCE

8.00

NO POLES

1.00

MODULE AREA

262.57

ARRAY WIDTH

17.31

ARRAY HEIGHT

15.17

RAIL LENGTH

182.00

MODULE LENGTH

68.25

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

16.91

PROJECTED PANEL HEIGHT

8.91

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

DESIGNER NAME

STEPHEN, ANDERSON

DESIGNER EMAIL

STEVE@SOLX2.COM

DESIGNER PHONE

4257652511.00

PROJECT ID

MTSOLAR, BE8AGE872068

SITE ADDRESS

355, SCOTT, RD, CAMANO, WA, 98282, USA

MODULE WIDTH

45.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4074.11

TOTAL WEIGHT

714.66

TOTAL PALLETS

1.00
