MTSOLAR_D9AHC9F2D64H

$4,579.93

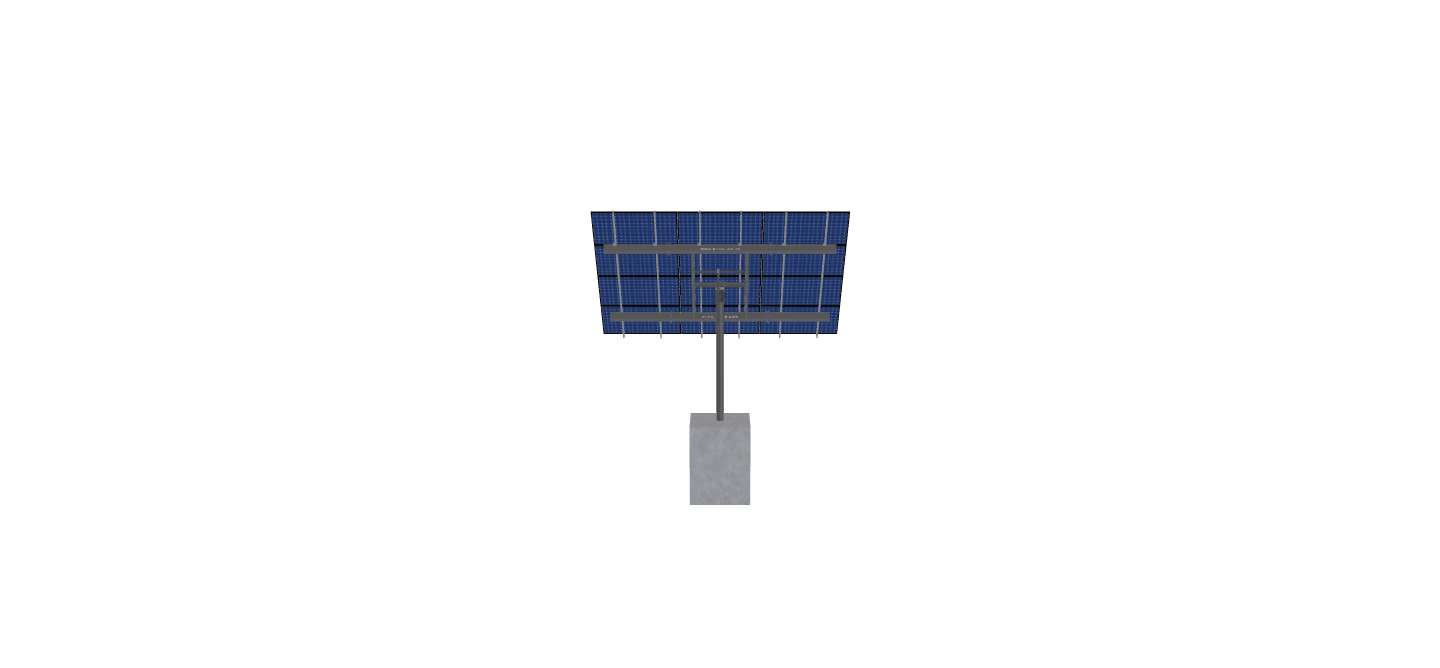

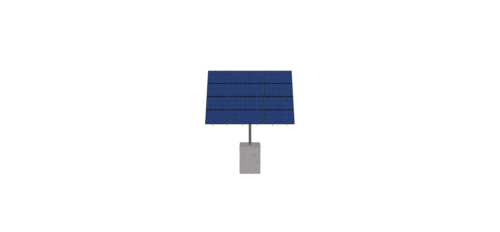

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.14 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

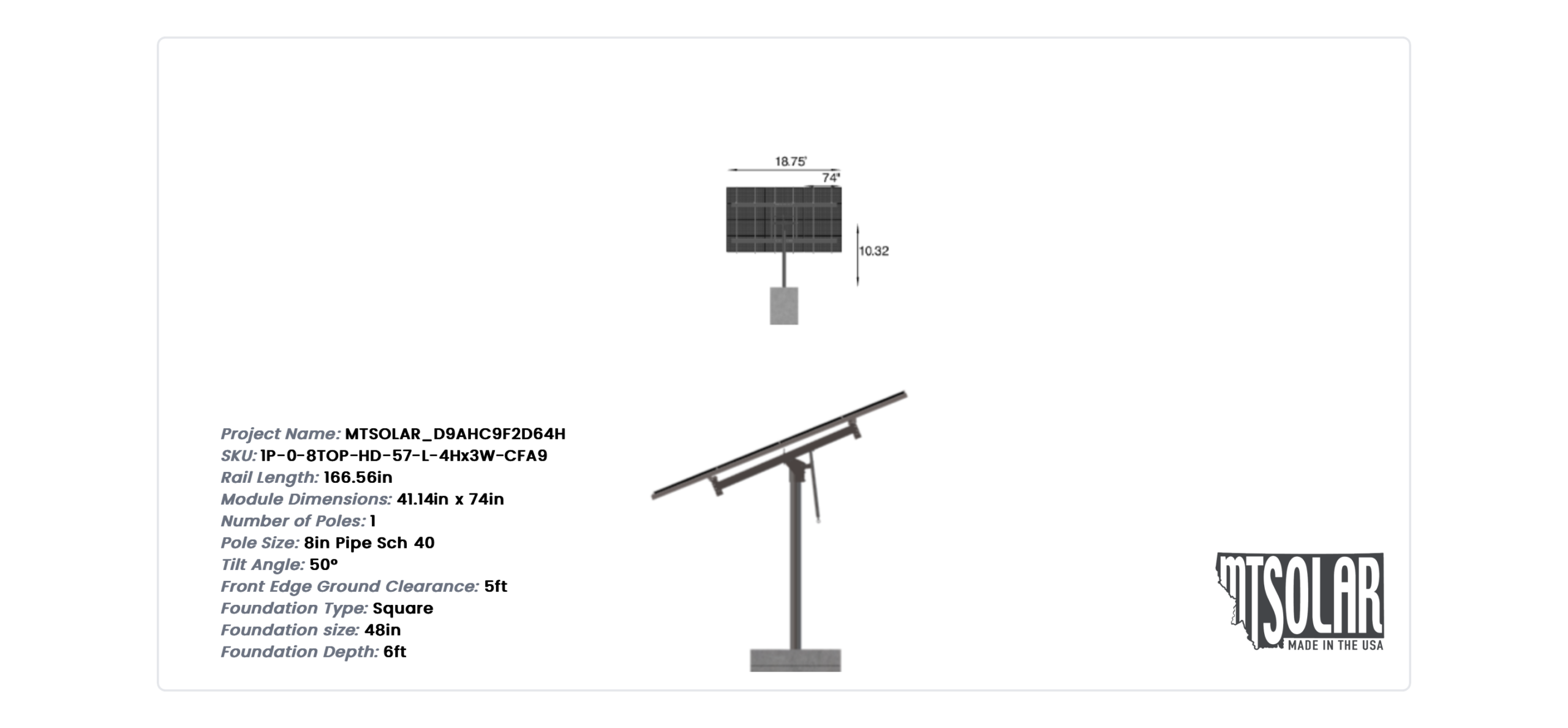

See 3D Model Here

SKU: 1P-0-8TOP-HD-57-L-4Hx3W-CFA9 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.14 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 834.37 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-57-L-4HX3W-CFA9

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.32

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

260.25

ARRAY WIDTH

18.75

ARRAY HEIGHT

13.88

RAIL LENGTH

166.56

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

15.63

PROJECTED PANEL HEIGHT

10.63

DESIGNER NAME

NICK

DESIGNER EMAIL

NICK@GREENBOX-SOLAR.COM

DESIGNER PHONE

4358819692.00

PROJECT ID

MTSOLAR, D9AHC9F2D64H

SITE ADDRESS

85FCGPXW+XX

MODULE WIDTH

41.14

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

134.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4579.93

TOTAL WEIGHT

834.37

TOTAL PALLETS

1.00
