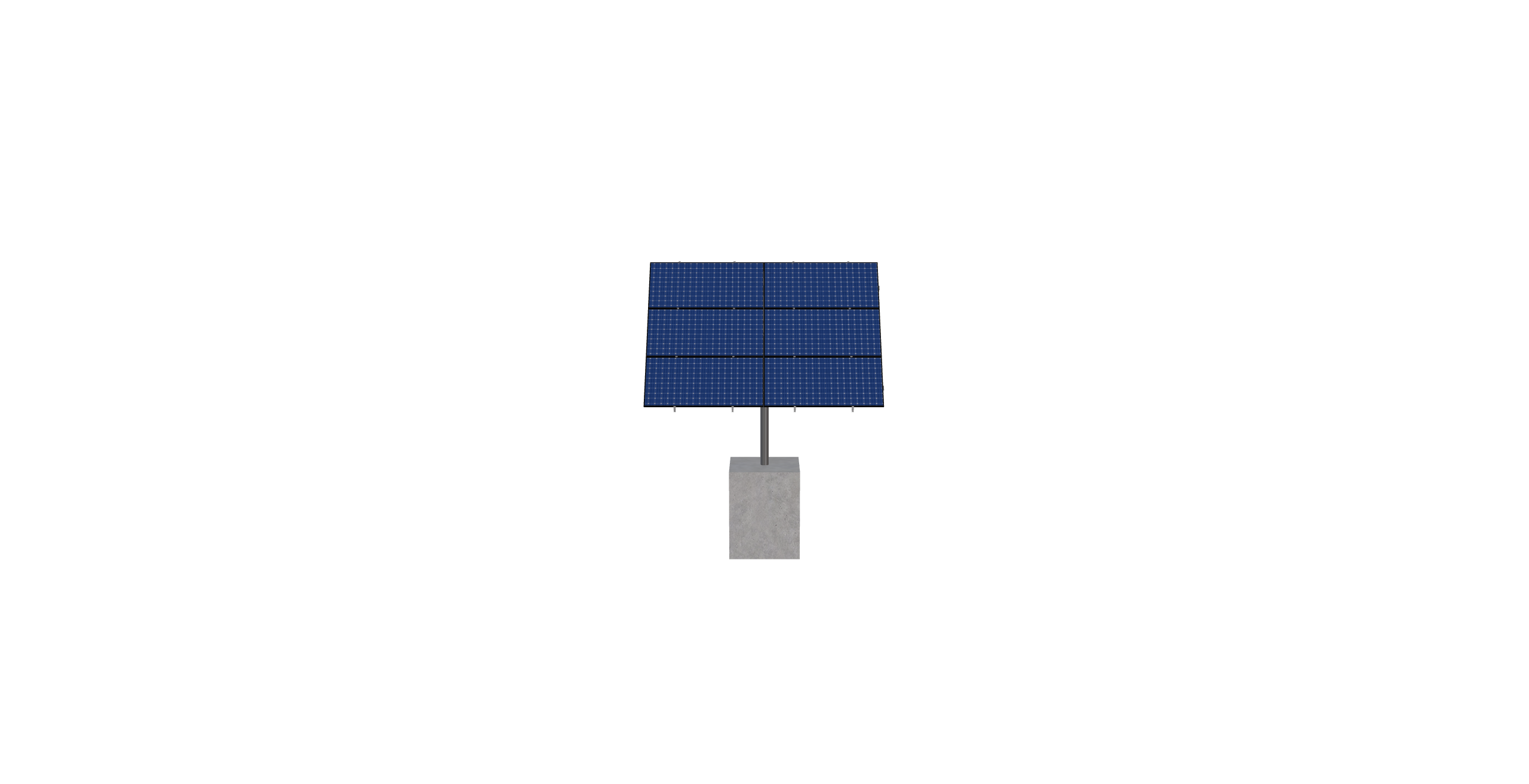

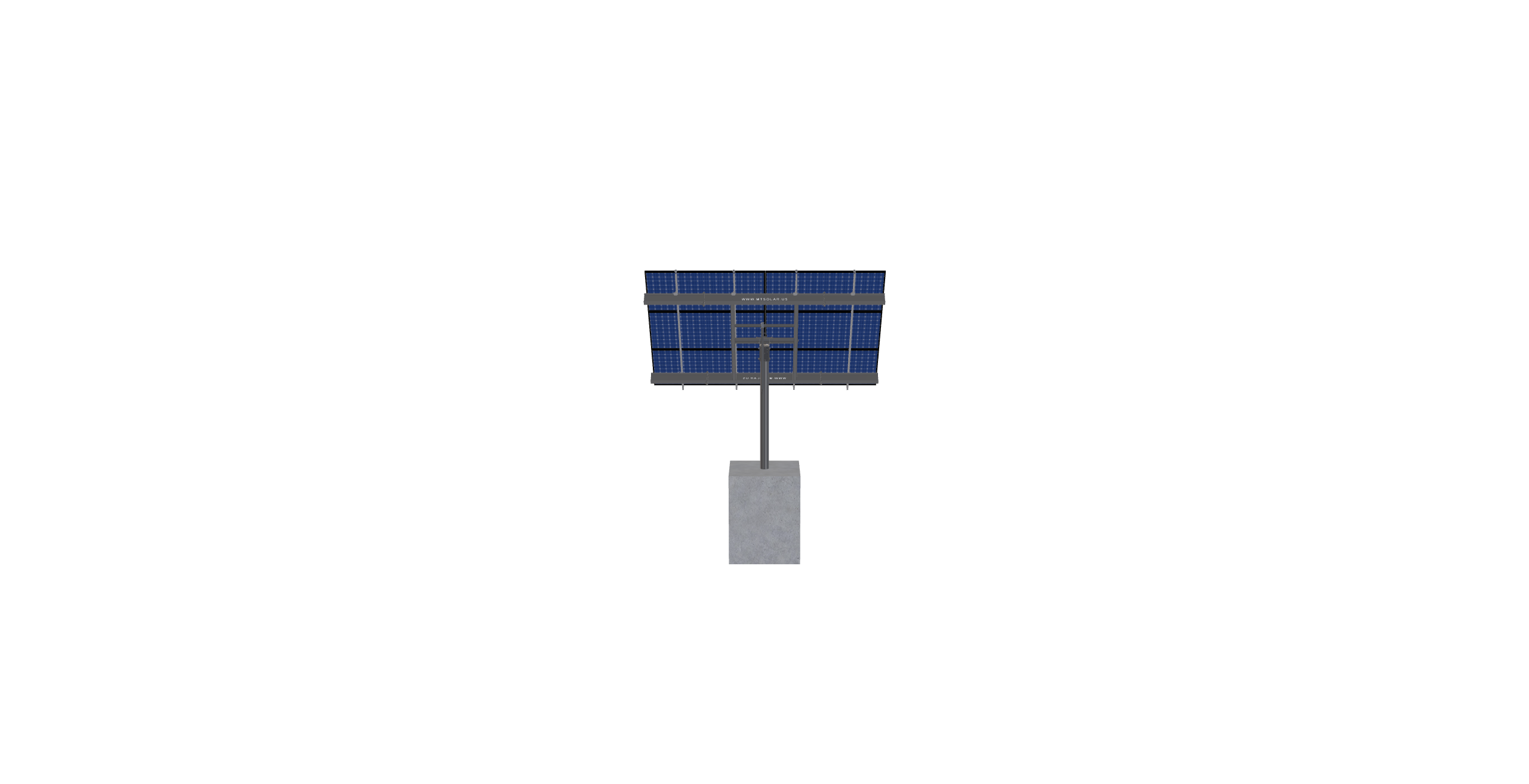

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 44 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_DFF7D1FHBI69
$4,010.14
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 44 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 742.5500000000001 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-8TOP-HD-45-L-3HX2W-7936 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 8.26 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 5.75 |
TILT ANGLE | 50.00 |
CANTILEVER | 180.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 1.00 |
MODULE AREA | 166.88 |
ARRAY WIDTH | 15.00 |
ARRAY HEIGHT | 11.13 |
RAIL LENGTH | 133.50 |
MODULE LENGTH | 89.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 15.00 |
GROUND TO TOP | 12.47 |
PROJECTED PANEL HEIGHT | 8.43 |
PROJECT ID | MTSOLAR, DFF7D1FHBI69 |
SITE ADDRESS | 87WH+QM, STEHEKIN, WA, 98852, USA |
MODULE WIDTH | 44.00 |
NUMBER ROWS | 3.00 |
NUMBER COLUMNS | 2.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | HD |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 130.00 |
SNOW LOAD OVERRIDE | 182.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 4010.14 |
TOTAL WEIGHT | 742.55 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/f4257b8c-8045-491d-8834-768090709d7b.pdf |
|
ID | 7346.00 |
3D Solar link |
