This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 39.3 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_DJ3JDJ2KKC63
$7,389.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 39.3 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1291.6 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

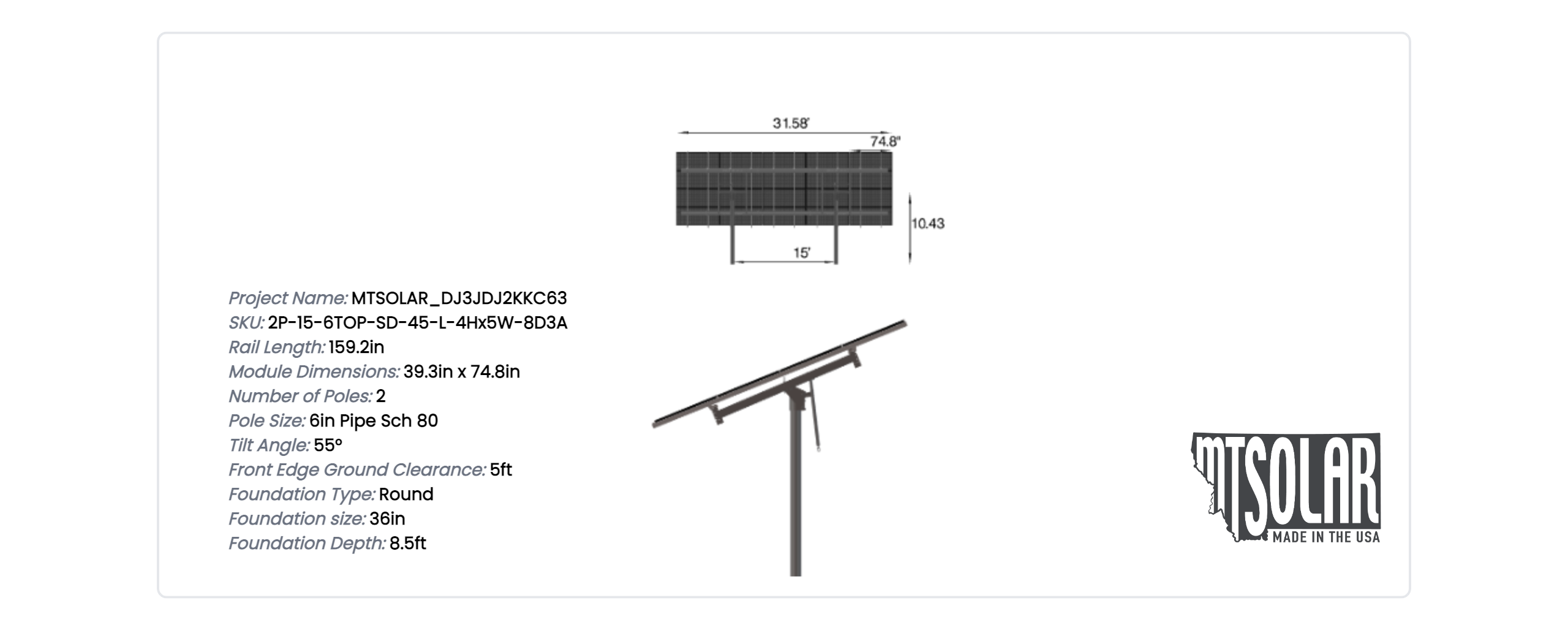

| SKU CODE | 2P-15-6TOP-SD-45-L-4HX5W-8D3A |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.43 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 419.01 |
| ARRAY WIDTH | 31.58 |
| ARRAY HEIGHT | 13.27 |
| RAIL LENGTH | 159.20 |
| MODULE LENGTH | 74.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 15.80 |
| PROJECTED PANEL HEIGHT | 10.73 |
| PROJECT ID | MTSOLAR, DJ3JDJ2KKC63 |
| SITE ADDRESS | 799, MACKINAW, DR, GRAND, LAKE, CO, 80447, USA |
| MODULE WIDTH | 39.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 7389.99 |
| TOTAL WEIGHT | 1291.60 |
| TOTAL PALLETS | 2.00 |
