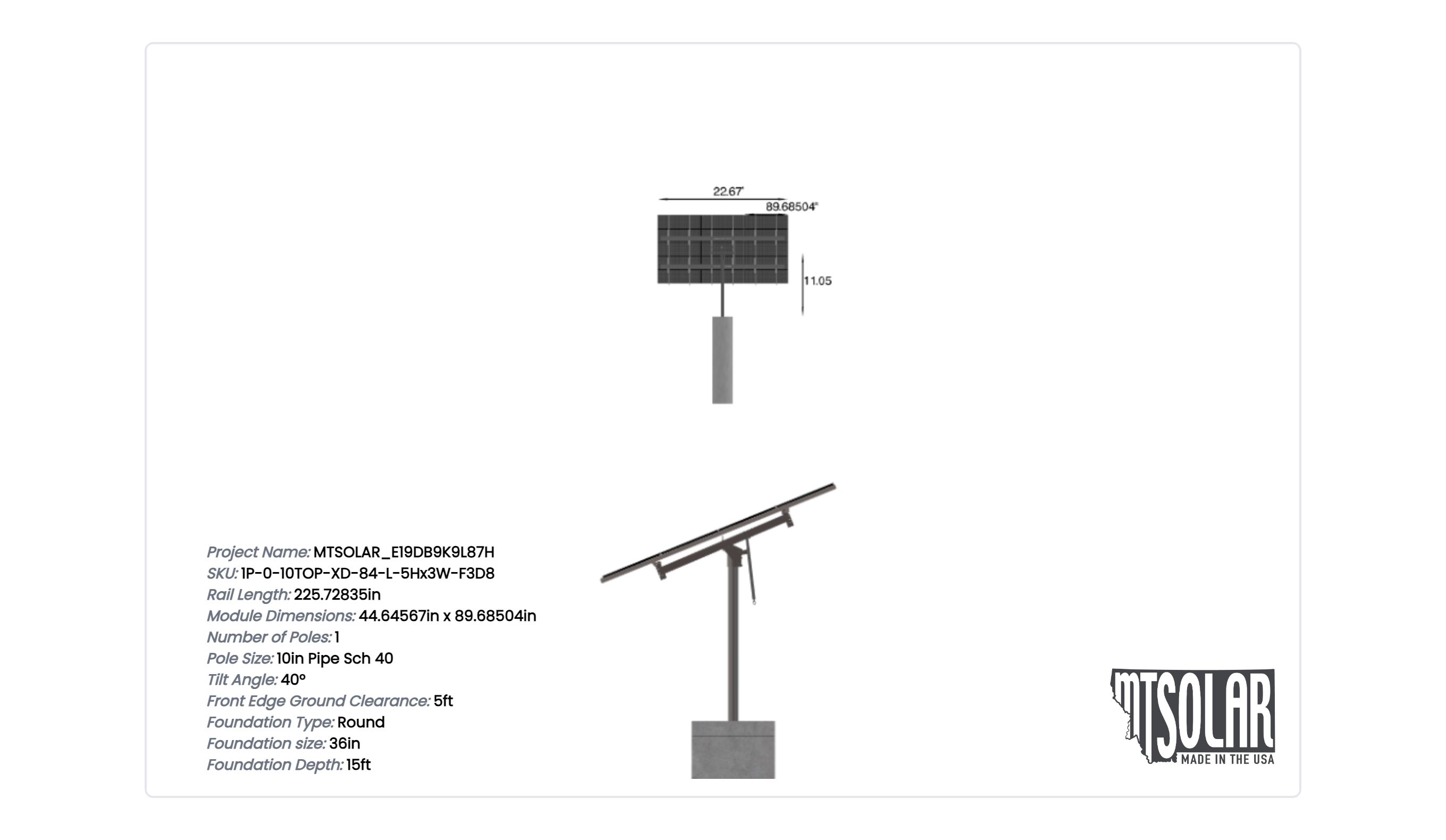

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68504 inches by 44.64567 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

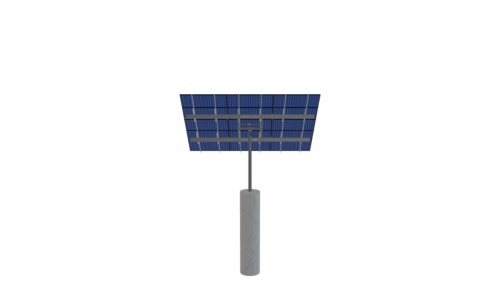

See 3D Model Here
MTSOLAR_E19DB9K9L87H
$6,190.37
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68504 inches by 44.64567 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1261.77 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-84-L-5HX3W-F3D8 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.05 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 15.00 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 426.46 |
| ARRAY WIDTH | 22.67 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.73 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 17.02 |
| PROJECTED PANEL HEIGHT | 11.96 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, E19DB9K9L87H |
| SITE ADDRESS | 5987, HUNTER, RD, OOLTEWAH, TN, 37363, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 6190.37 |
| TOTAL WEIGHT | 1261.77 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/423550f5-cd10-463c-98a5-6305689f6e42.pdf |
|
| ID | 3439.00 |
| 3D Solar link |
