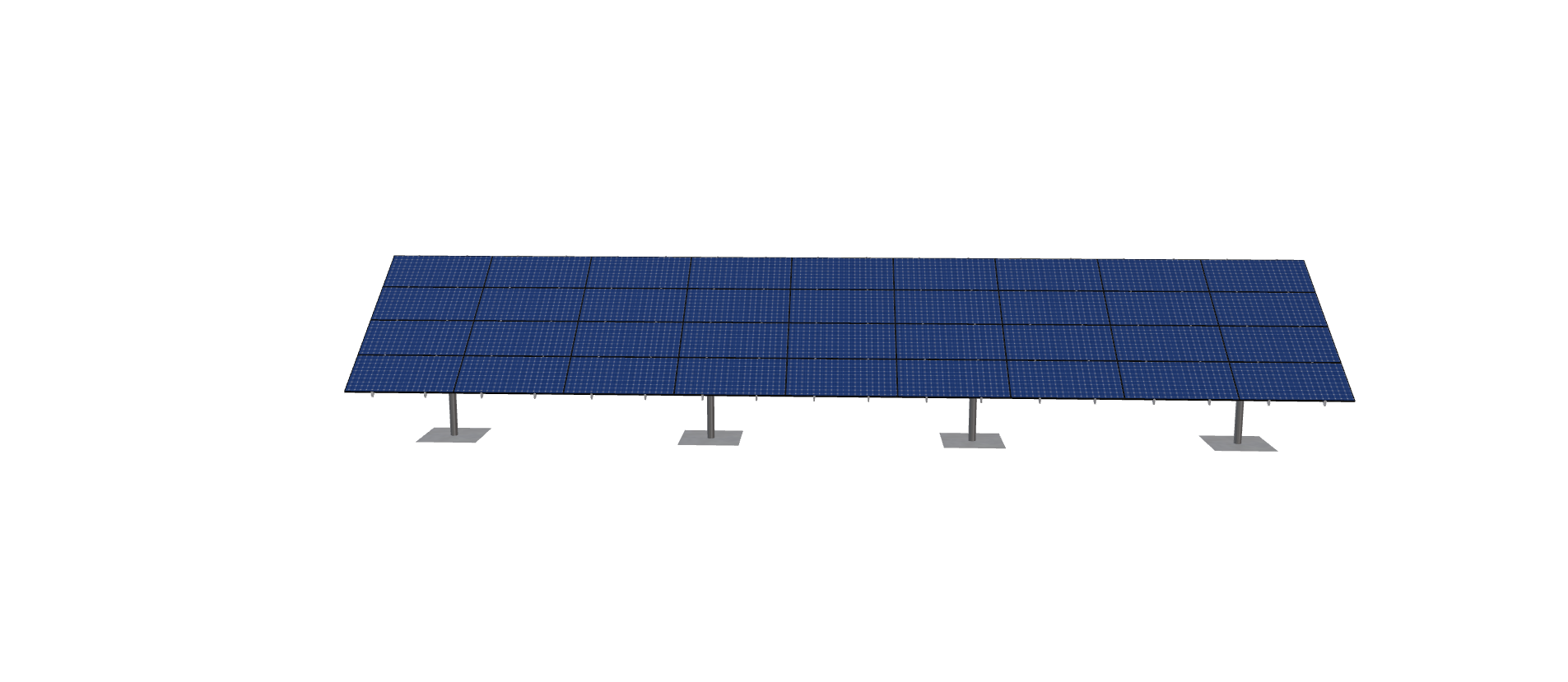

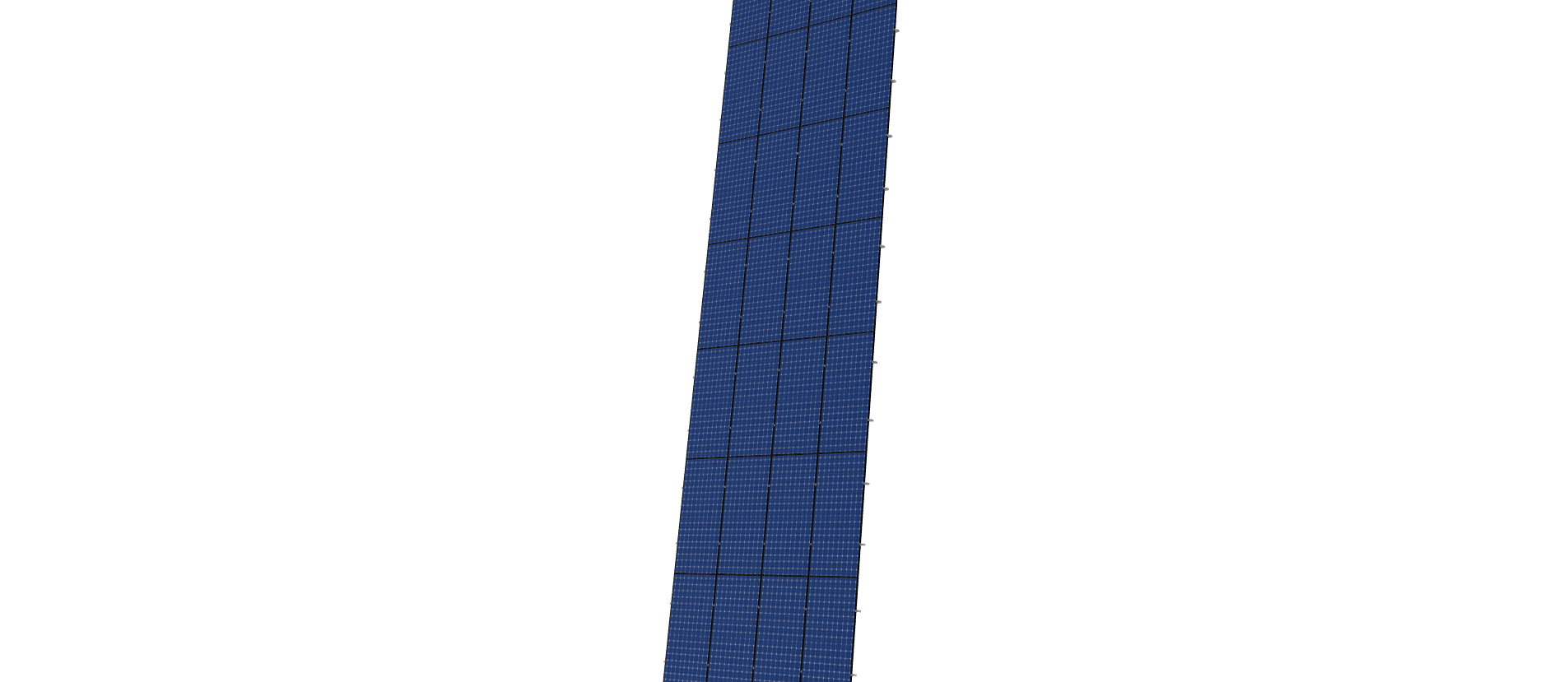

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 44.65 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_G1516836ICE8
$16,765.01
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 44.65 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2863.92 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-24-L-4HX9W-IE5E |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.32 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1070.73 |
| ARRAY WIDTH | 71.14 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 93.86 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 12.63 |
| PROJECTED PANEL HEIGHT | 8.63 |
| DESIGNER NAME | ANNA |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4062230602.00 |
| PROJECT ID | MTSOLAR, G1516836ICE8 |
| SITE ADDRESS | HP9W+QG, TWIN, BRIDGES, MT, 59754, USA |
| MODULE INFO | TRINA, TSM-NEG19RC.20, 605, W |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 38.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 16765.01 |
| TOTAL WEIGHT | 2863.92 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/e57f95a8-f88f-410a-bd96-b68119391306.pdf |
|
| ID | 13860.00 |
| 3D Solar link |
