This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 40 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

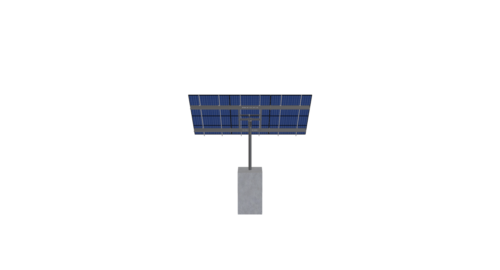

See 3D Model Here
MTSOLAR_H8I2A3484IIC – Struts – V1Jb
$5,565.04
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 40 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1054.1100000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-84-L-4HX3W-STRUTS-FKK1 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 9.52 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 42.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 297.00 |
| ARRAY WIDTH | 22.00 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 13.98 |
| PROJECTED PANEL HEIGHT | 8.92 |
| DESIGNER NAME | DOUGLAS, WAHL |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 508-246-6528 |
| PROJECT ID | MTSOLAR, H8I2A3484IIC, -, STRUTS, -, V1JB |
| SITE ADDRESS | 20, SHERRY, RD, HARVARD, MA, 01451, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 123.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 5565.04 |
| TOTAL WEIGHT | 1054.11 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/7556b3d6-ca27-44d7-acb7-5c1dc4be87ff.pdf |
|
| ID | 7980.00 |
