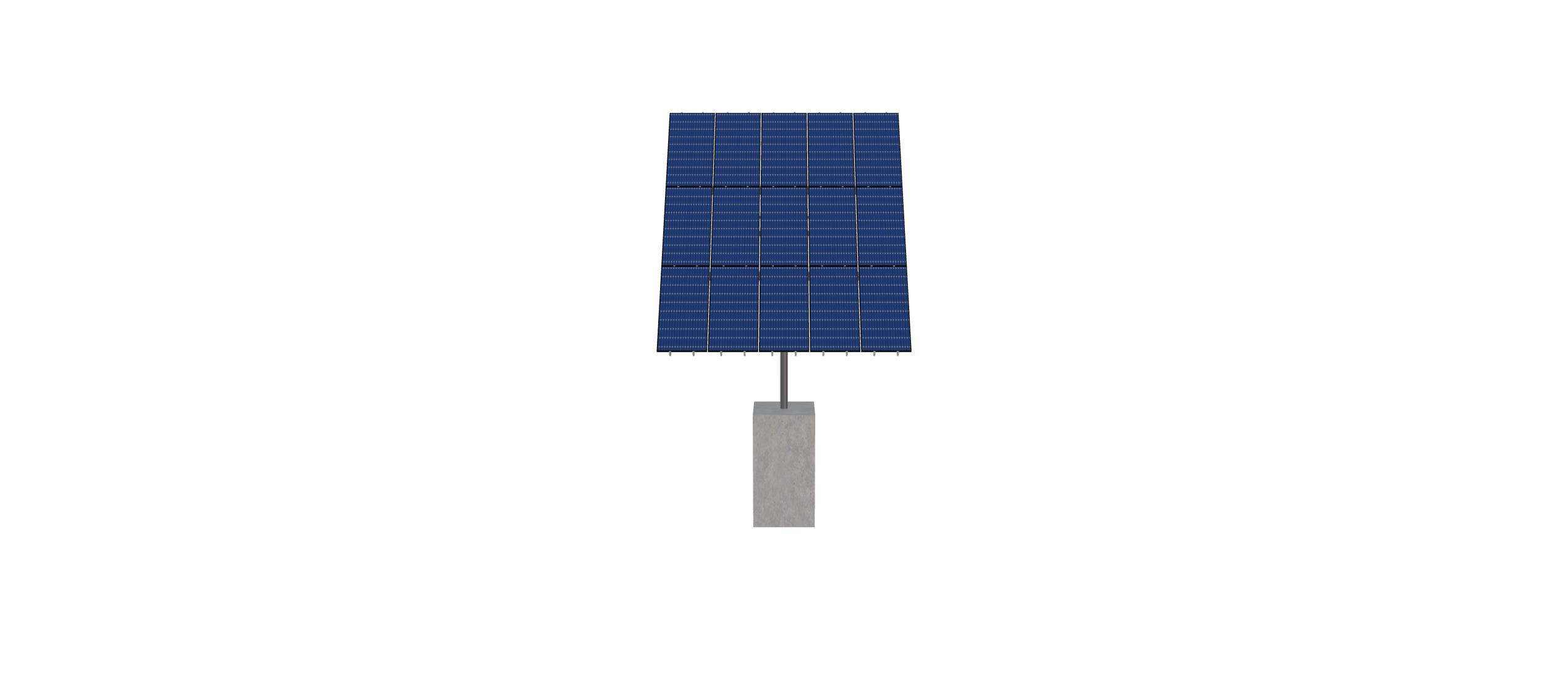

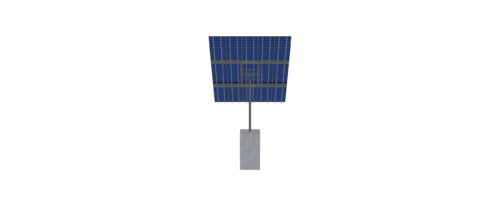

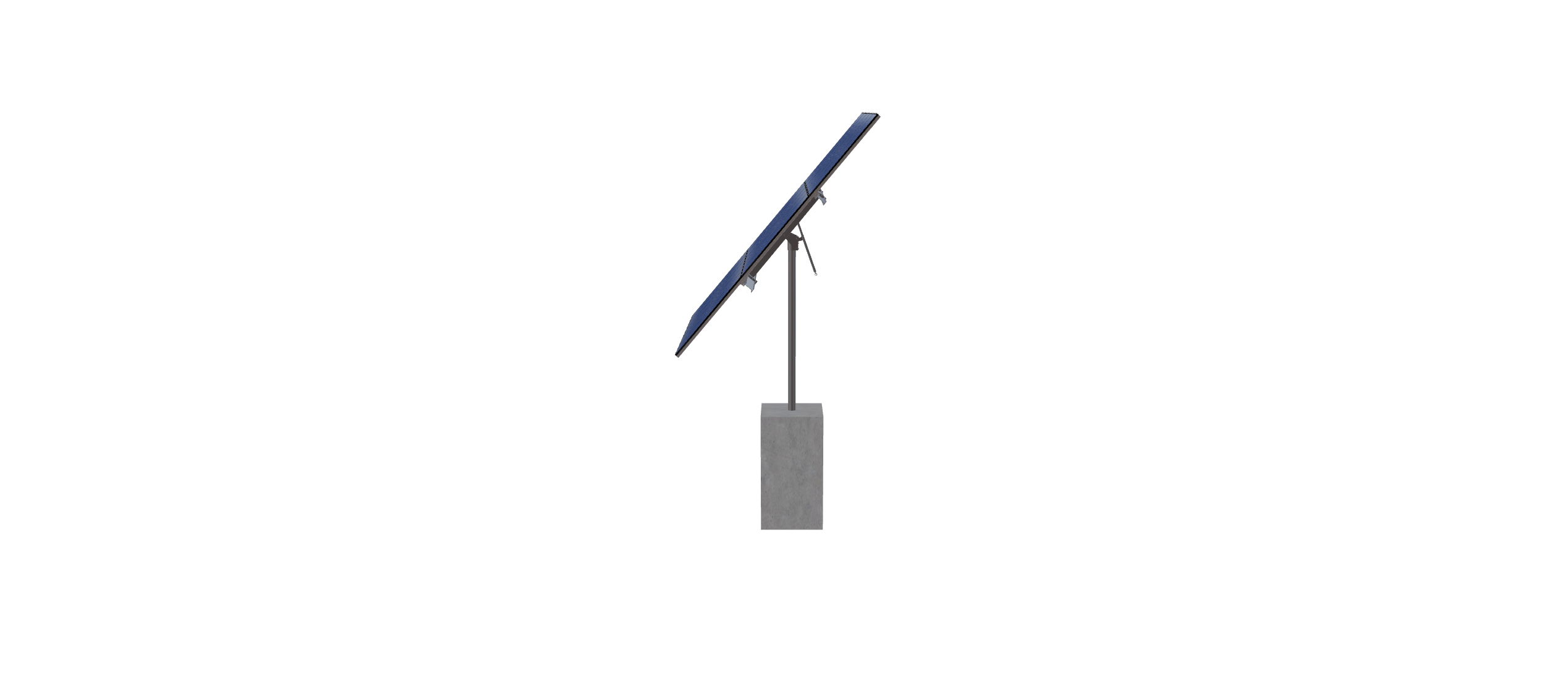

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.3 inches by 83.9 inches and an array layout of 5 wide by 3 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_I8EHAA8G0KE5
$5,012.06
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.3 inches by 83.9 inches and an array layout of 5 wide by 3 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 887.31 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-HD-57-L-3HX5W-FH5J |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 13.08 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 371.89 |
| ARRAY WIDTH | 17.63 |
| ARRAY HEIGHT | 21.10 |
| RAIL LENGTH | 253.20 |
| MODULE LENGTH | 41.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 21.16 |
| PROJECTED PANEL HEIGHT | 16.16 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7177687777.00 |
| PROJECT ID | MTSOLAR, I8EHAA8G0KE5 |
| SITE ADDRESS | 1460, WHITE, SCHOOL, RD, HONEY, BROOK, PA, 19344, USA |
| MODULE WIDTH | 83.90 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 5012.06 |
| TOTAL WEIGHT | 887.31 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/fd4ab766-2913-4139-90ab-9303ea55cd3b.pdf |
|
| ID | 8220.00 |
| 3D Solar link |
