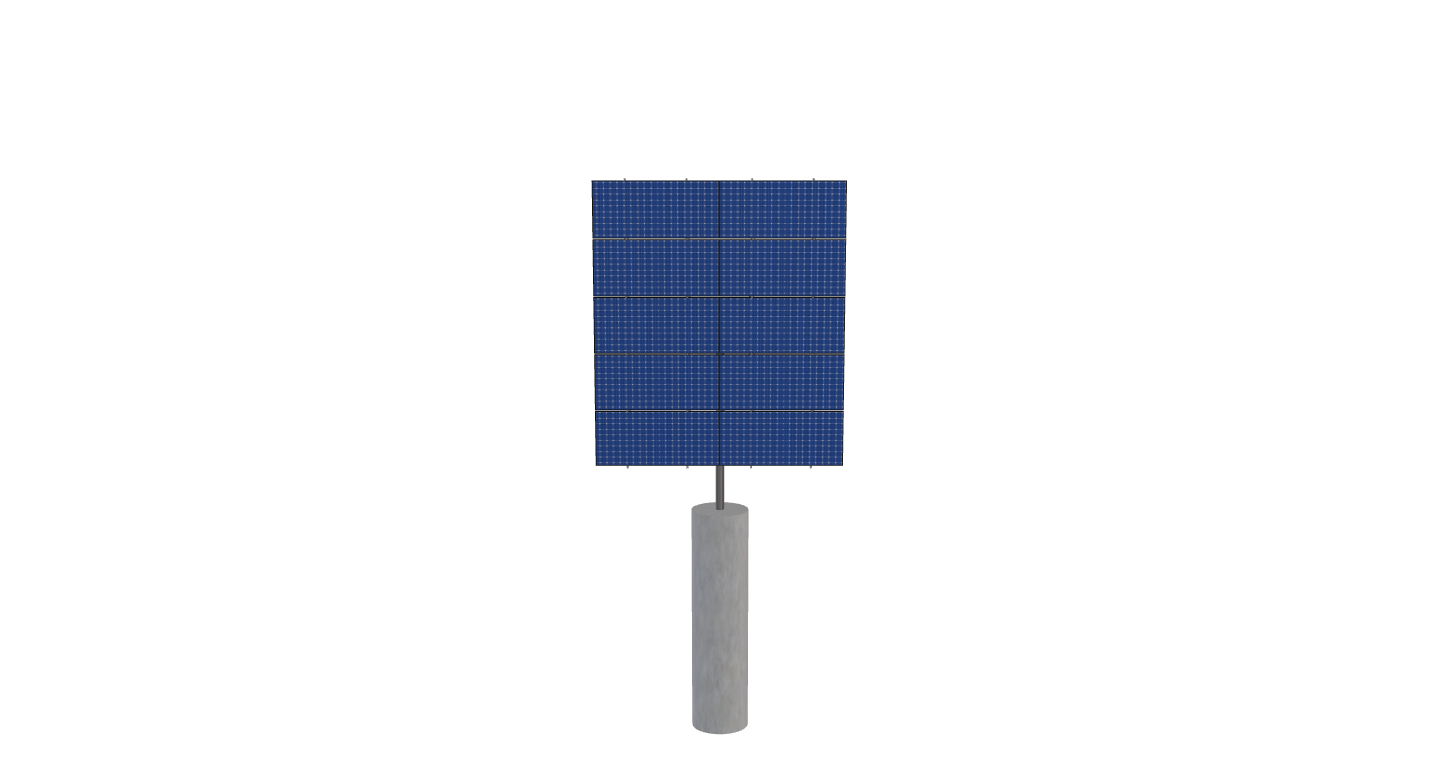

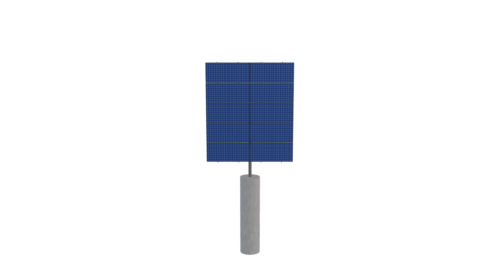

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96.08 inches by 44.7 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

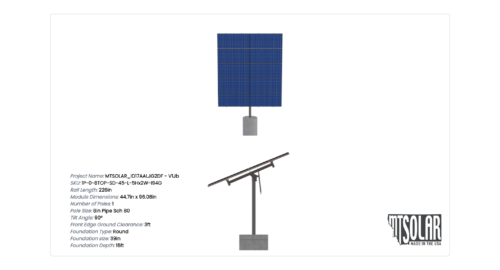

See 3D Model Here
MTSOLAR_ID17AALJG2DF – V1Jb
$3,992.73
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96.08 inches by 44.7 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 769.88 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-45-L-5HX2W-I94G |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.42 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 15.00 |
| TILT ANGLE | 90.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 304.72 |
| ARRAY WIDTH | 16.18 |
| ARRAY HEIGHT | 18.83 |
| RAIL LENGTH | 226.00 |
| MODULE LENGTH | 96.08 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 21.83 |
| PROJECTED PANEL HEIGHT | 18.83 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, ID17AALJG2DF, -, V1JB |
| SITE ADDRESS | 5337, POWER, HOUSE, DR, IDAHO, FALLS, ID, 83406, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 39.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 3992.73 |
| TOTAL WEIGHT | 769.88 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/d6688bde-fe0b-409e-ae9a-59cb90663e6e.pdf |
|
| ID | 8693.00 |
| 3D Solar link |
