MTSOLAR_J1C605I9K93L – V2Jb

$4,959.56

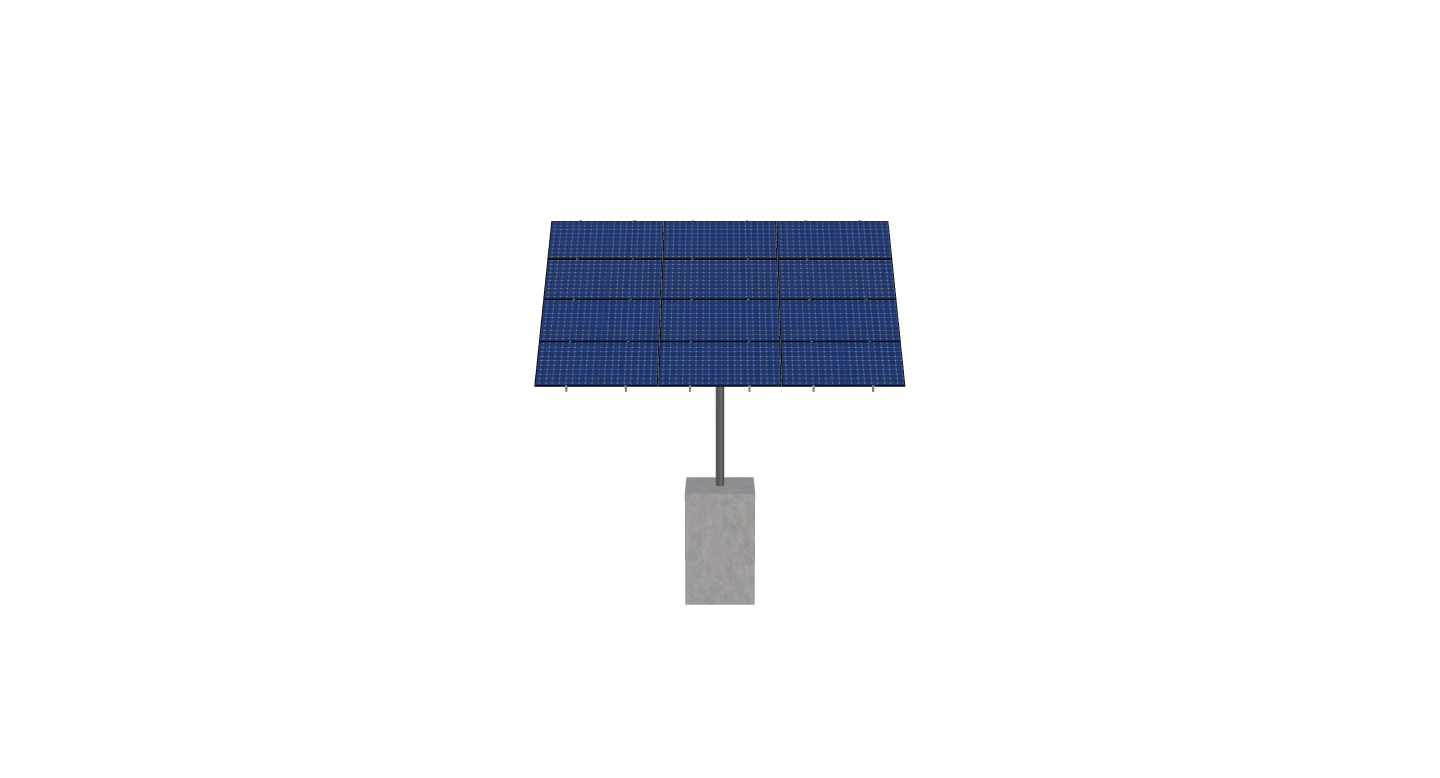

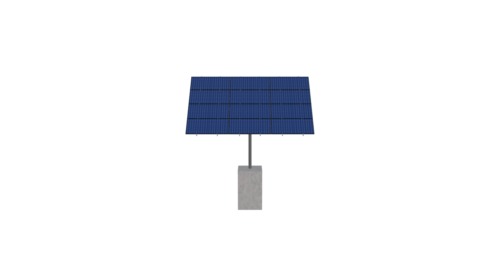

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 44 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 1P-0-8TOP-HD-84-L-4Hx3W-STRUTS-K7CF Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 44 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 928.4699999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-84-L-4HX3W-STRUTS-K7CF

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.77

WING SPAN

84.00

MAX FOUNDATION DEPTH

7.50

TILT ANGLE

40.00

CANTILEVER

258.00

GROUND CLEARANCE

7.00

NO POLES

1.00

MODULE AREA

337.46

ARRAY WIDTH

22.75

ARRAY HEIGHT

14.83

RAIL LENGTH

178.00

MODULE LENGTH

90.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

16.53

PROJECTED PANEL HEIGHT

9.53

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

DESIGNER NAME
DESIGNER EMAIL

MIKEM@NHRENEWABLES.COM

DESIGNER PHONE
PROJECT ID

MTSOLAR, J1C605I9K93L, -, V2JB

SITE ADDRESS

FERN, RD, NORTH, HAMPTON, NH, 03862, USA

MODULE WIDTH

44.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4959.56

TOTAL WEIGHT

928.47

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/c81a808b-c601-4d09-be8b-abb1440ed42c.pdf

ID

8646.00
