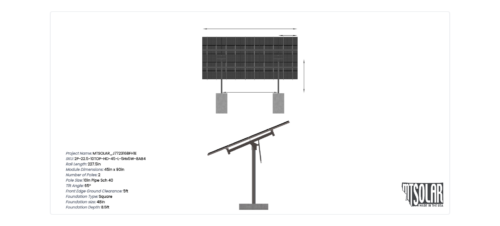

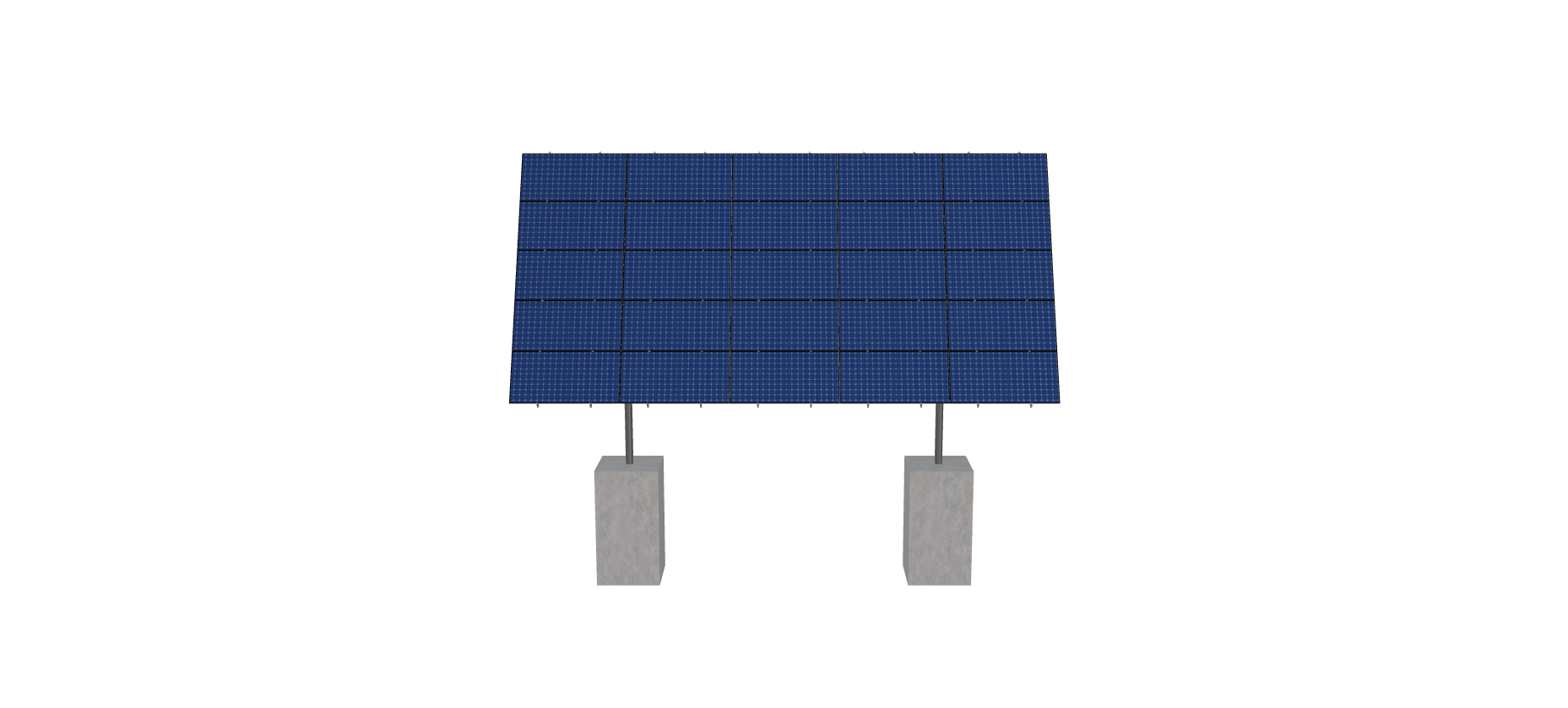

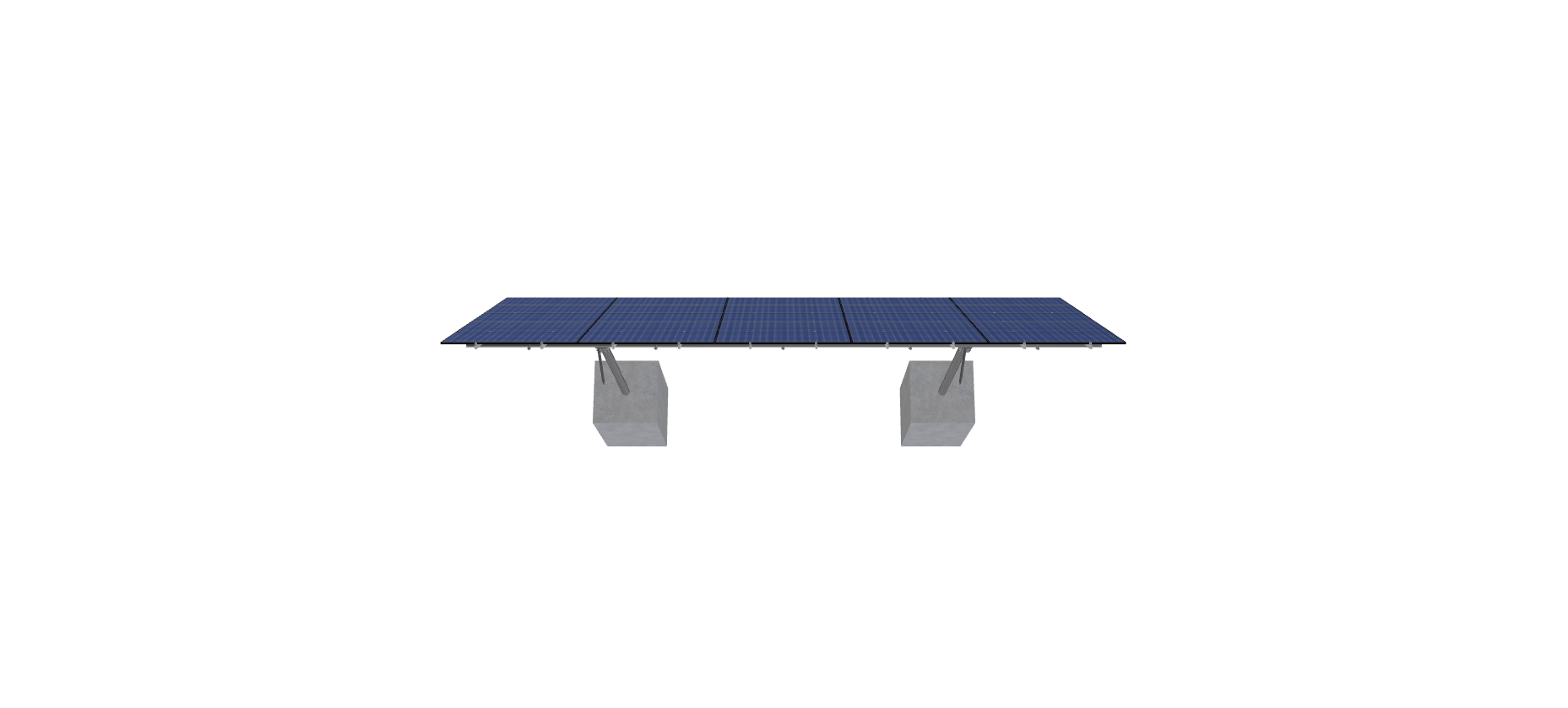

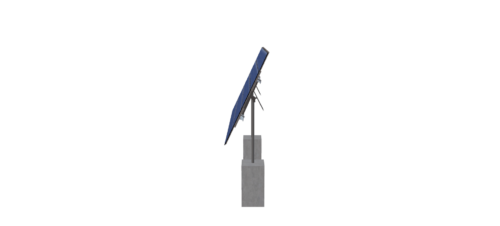

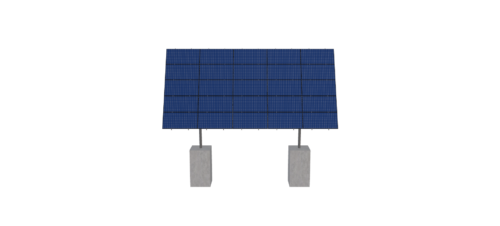

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).

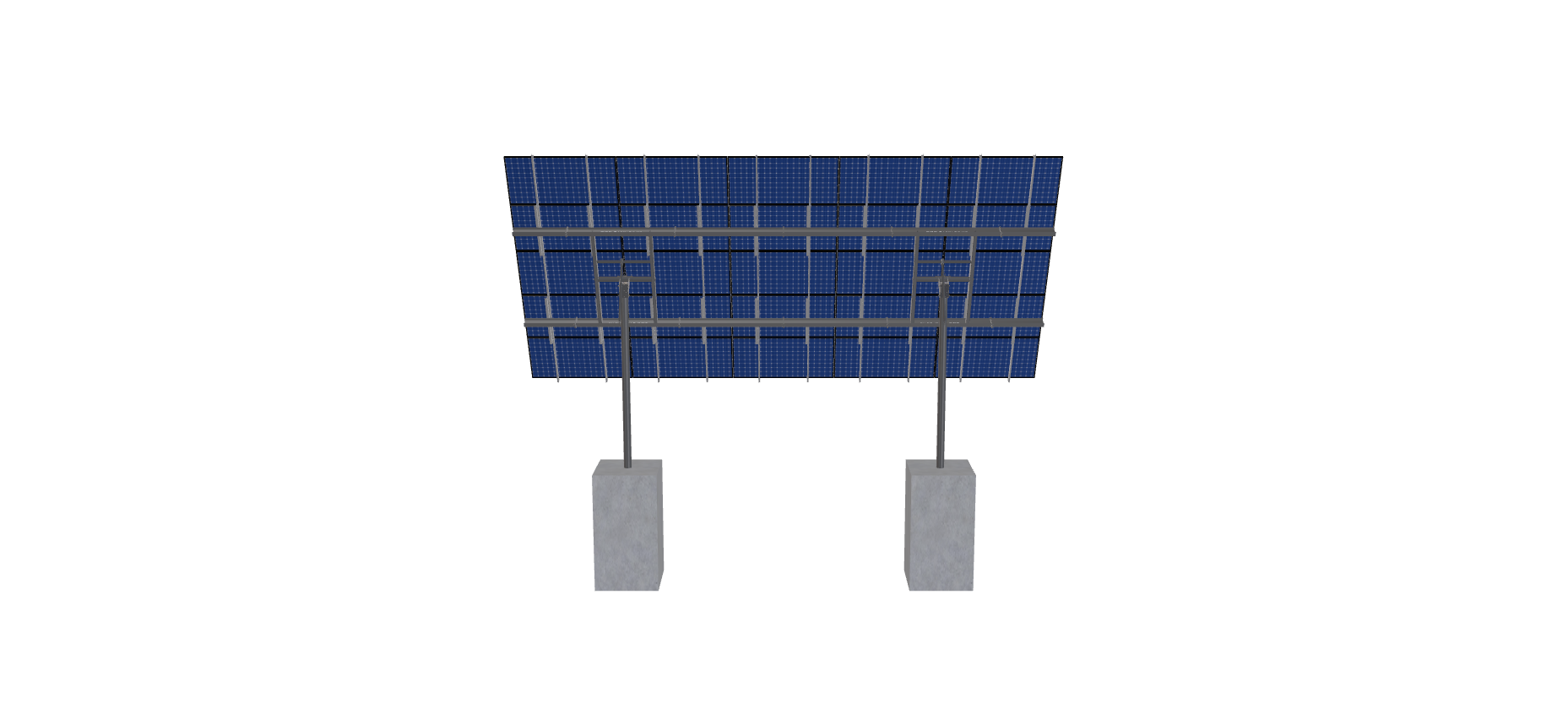

The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_J7723168FH1E
$10,343.63
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2081.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-HD-45-L-5HX5W-8AB4 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.59 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 718.84 |
| ARRAY WIDTH | 37.92 |
| ARRAY HEIGHT | 18.96 |
| RAIL LENGTH | 227.50 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 22.18 |
| PROJECTED PANEL HEIGHT | 17.18 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | DANIELLE, ALINEA |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 715-570-7899 |
| PROJECT ID | MTSOLAR, J7723168FH1E |
| SITE ADDRESS | 10865, SCENIC, DR, IRON, RIVER, WI, 54847, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10343.63 |
| TOTAL WEIGHT | 2081.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/afdba3ee-c08d-4968-98fb-3f5ab6a420ba.pdf |
|
| ID | 8394.00 |
| 3D Solar link |
