NPS Grand Portage – V1Jb

$3,446.86

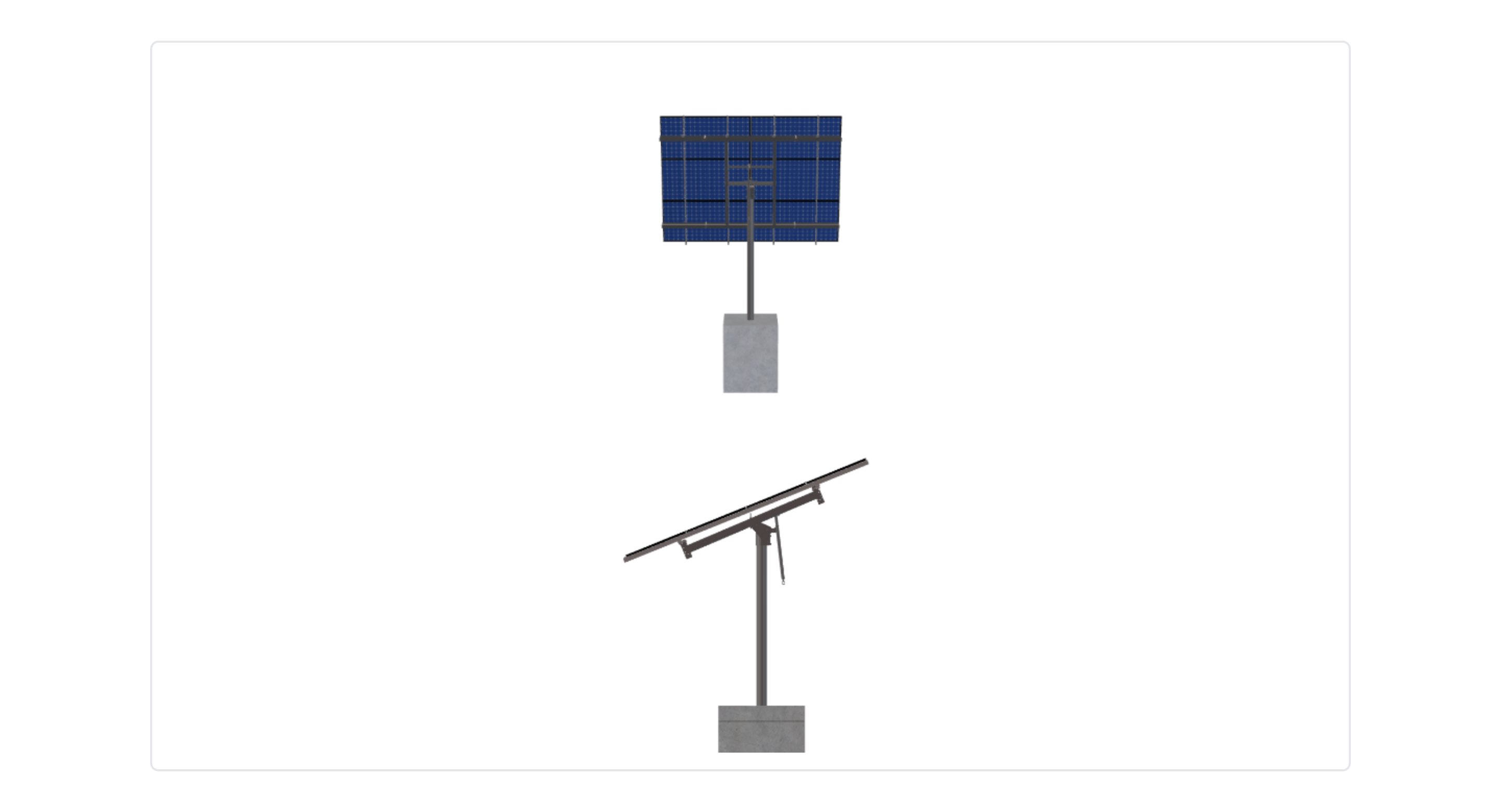

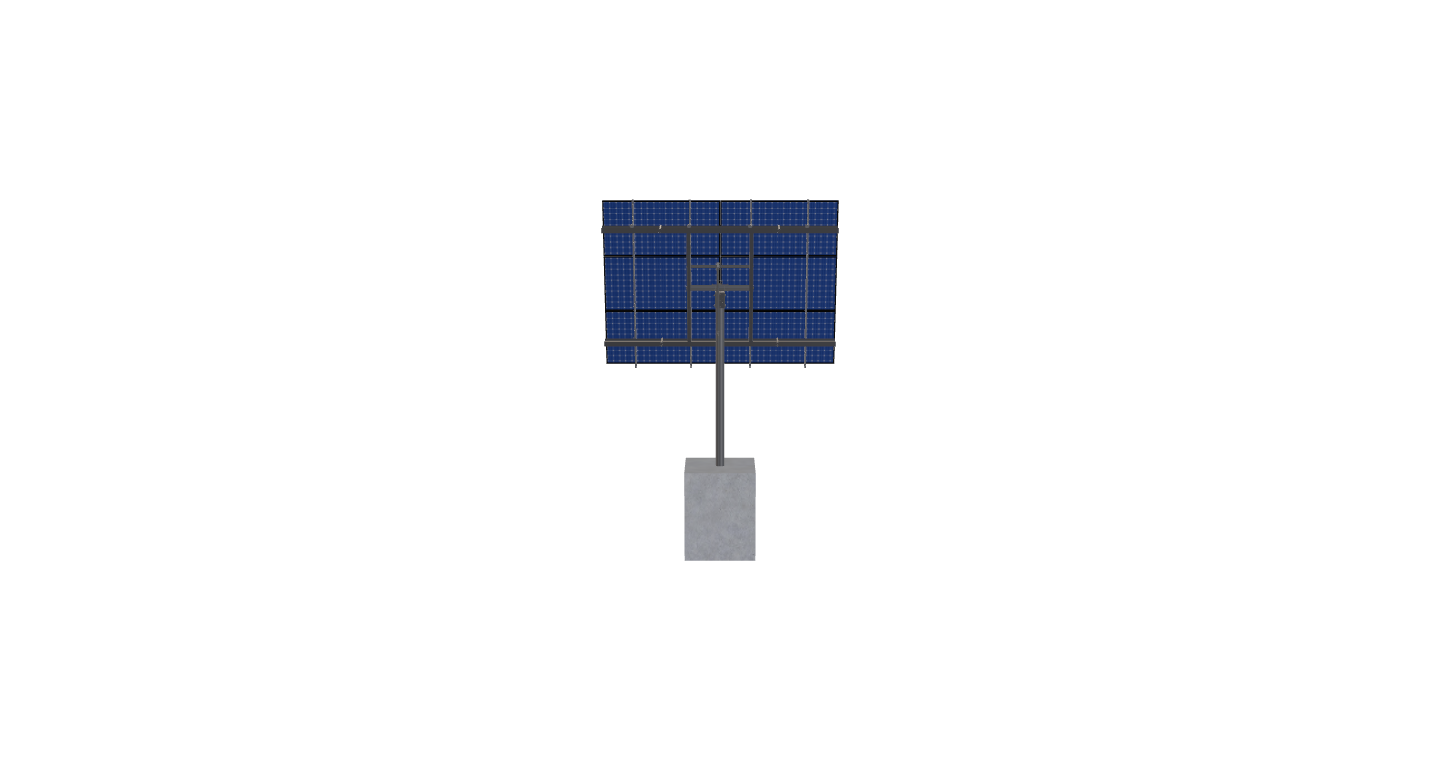

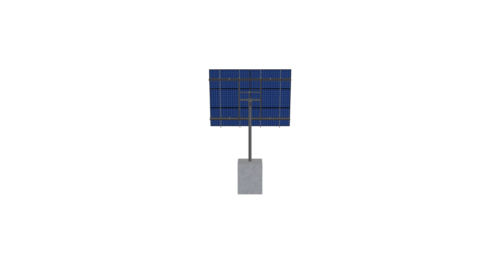

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.65 inches by 44.6 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-45-L-3Hx2W-K365 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.65 inches by 44.6 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 611.84 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-45-L-3HX2W-K365

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.55

WING SPAN

45.00

MAX FOUNDATION DEPTH

5.75

TILT ANGLE

80.00

CANTILEVER

180.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

170.35

ARRAY WIDTH

15.11

ARRAY HEIGHT

11.28

RAIL LENGTH

135.30

MODULE LENGTH

89.65

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

15.00

GROUND TO TOP

17.04

PROJECTED PANEL HEIGHT

10.98

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

NPS, GRAND, PORTAGE, -, V1JB

SITE ADDRESS

GRAND, PORTAGE, MN, 55605, USA

MODULE WIDTH

44.60

NUMBER ROWS

3.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3446.86

TOTAL WEIGHT

611.84

TOTAL PALLETS

1.00
