Off grid solar power system 36 mods – V1Jb

$14,899.26

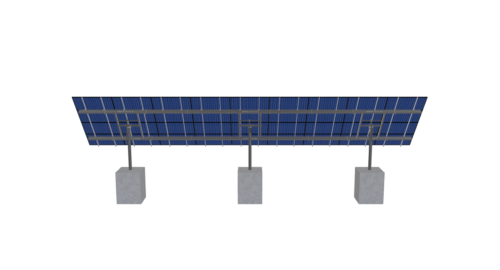

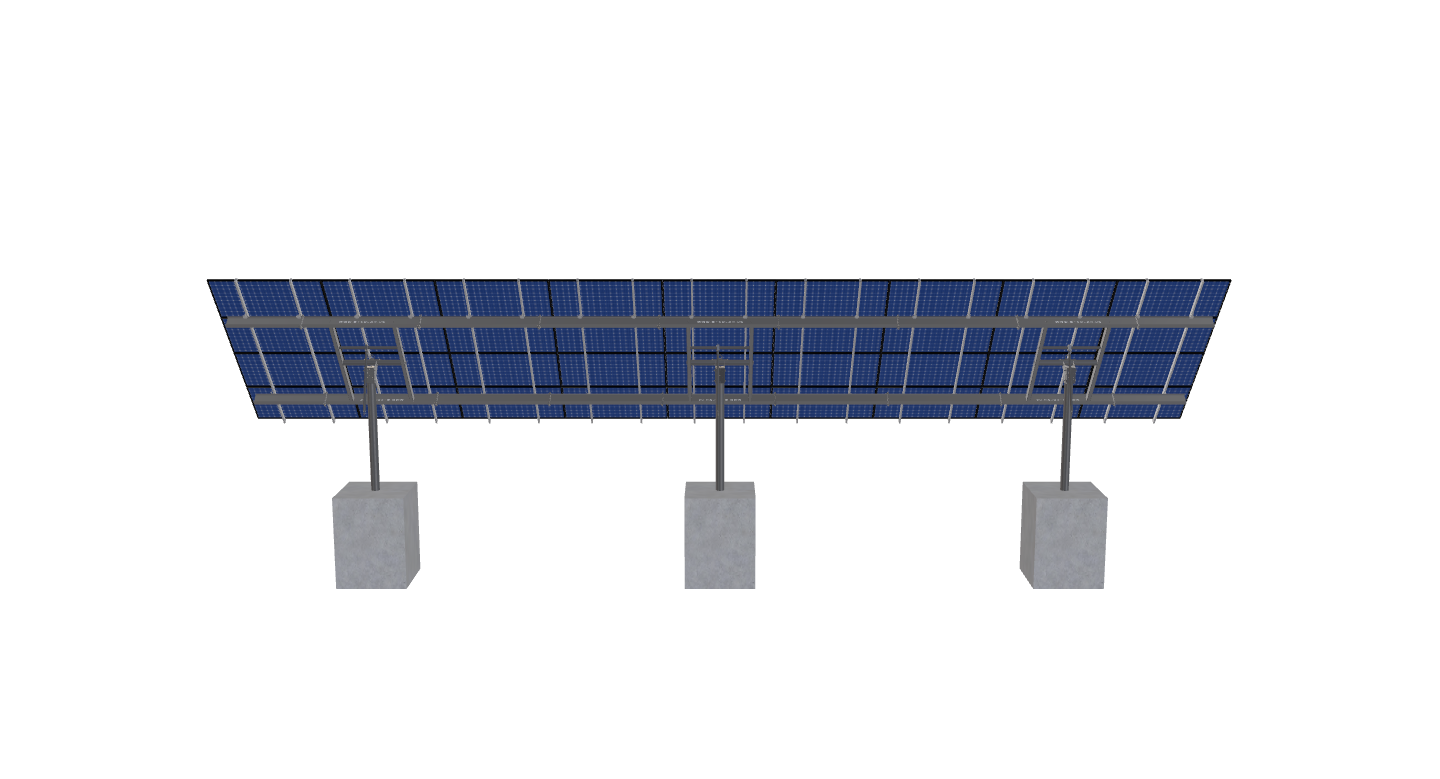

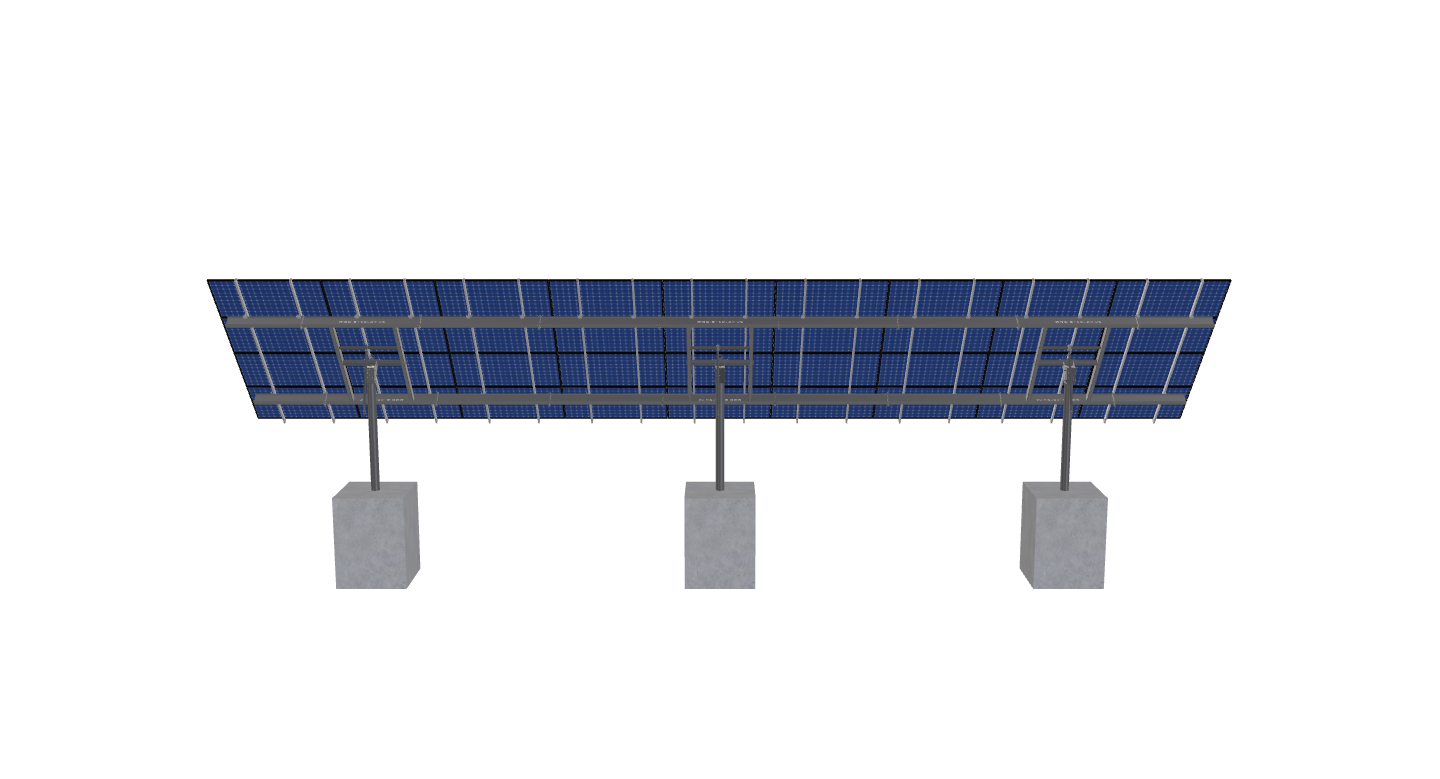

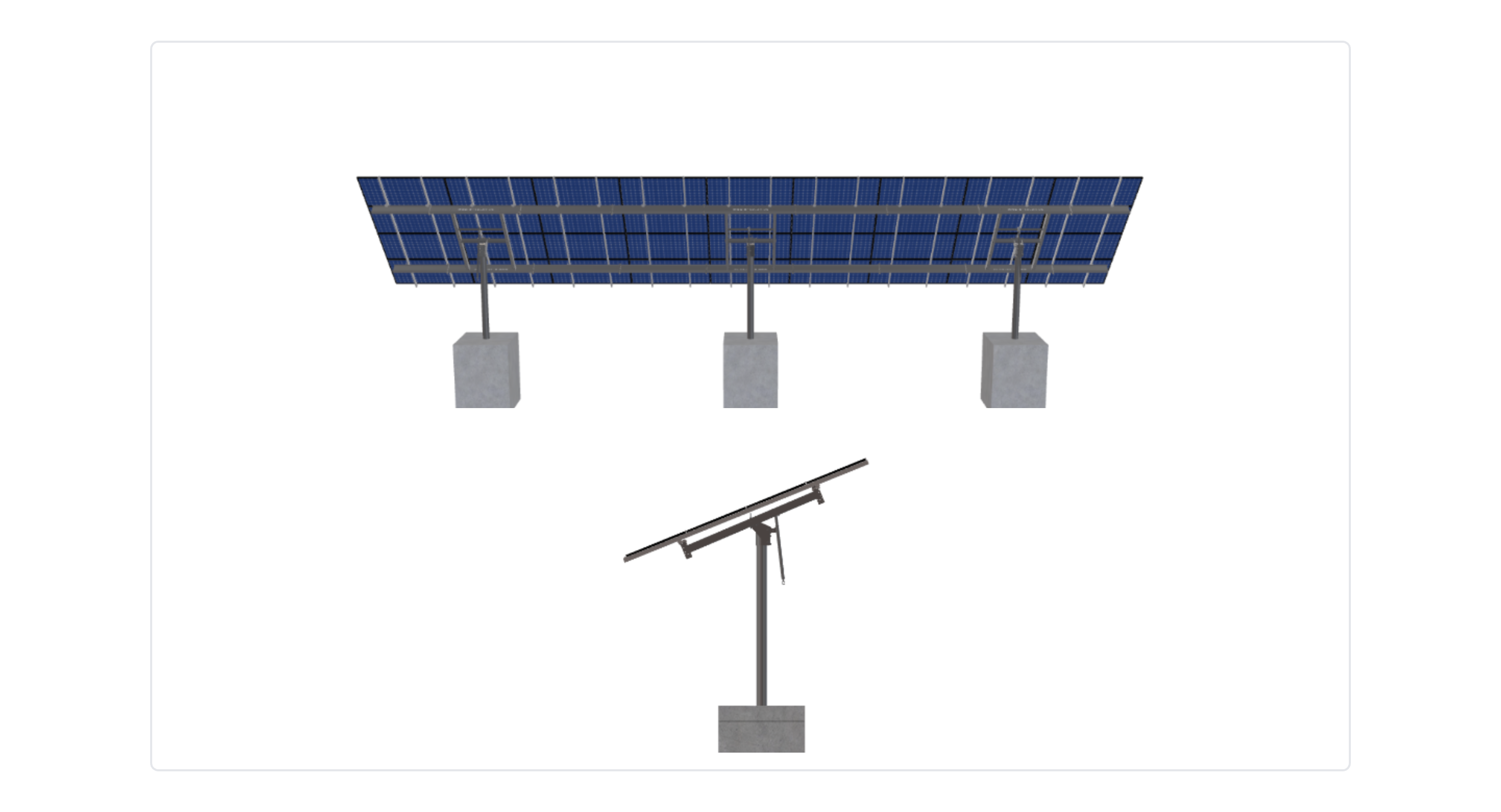

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-8TOP-HD-57-L-4Hx9W-7CLG Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2780.63 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-8TOP-HD-57-L-4HX9W-7CLG

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

8.34

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

50.00

CANTILEVER

744.00

GROUND CLEARANCE

3.00

NO POLES

3.00

MODULE AREA

887.20

ARRAY WIDTH

63.68

ARRAY HEIGHT

13.93

RAIL LENGTH

167.20

MODULE LENGTH

83.90

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

62.00

GROUND TO TOP

13.61

PROJECTED PANEL HEIGHT

10.55

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

OFF, GRID, SOLAR, POWER, SYSTEM, 36, MODS, -, V1JB

SITE ADDRESS

28385, POST, OFFICE, RD, MASS, CITY, MI, 49948, USA

MODULE WIDTH

41.30

NUMBER ROWS

4.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

14899.26

TOTAL WEIGHT

2780.63

TOTAL PALLETS

3.00
