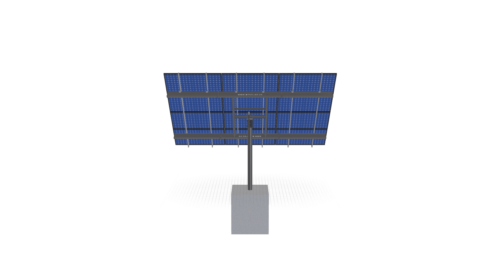

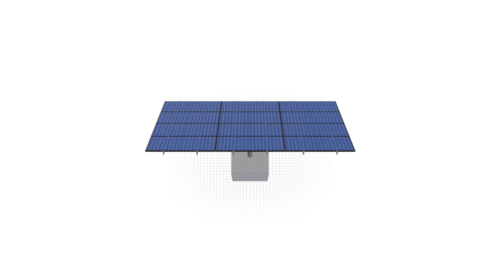

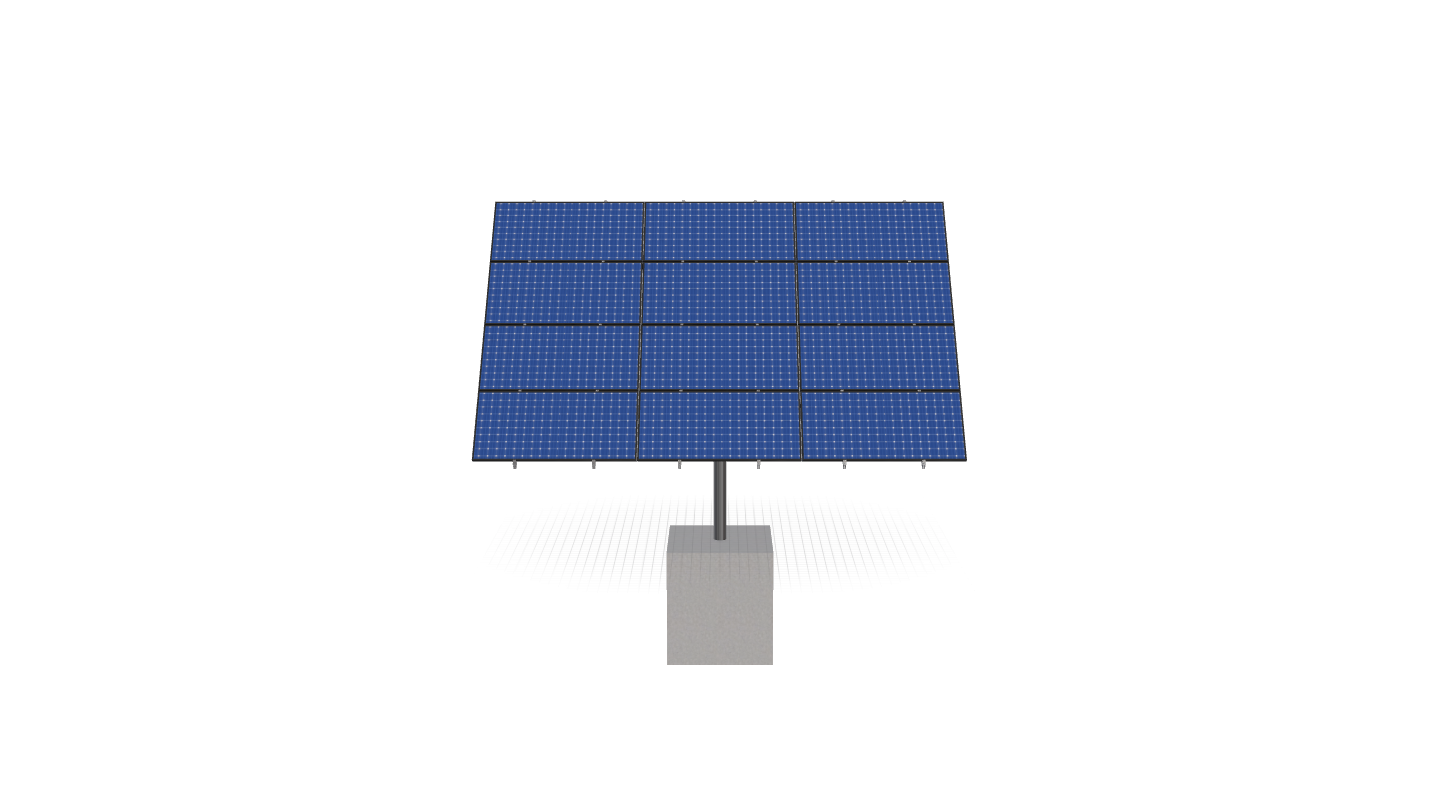

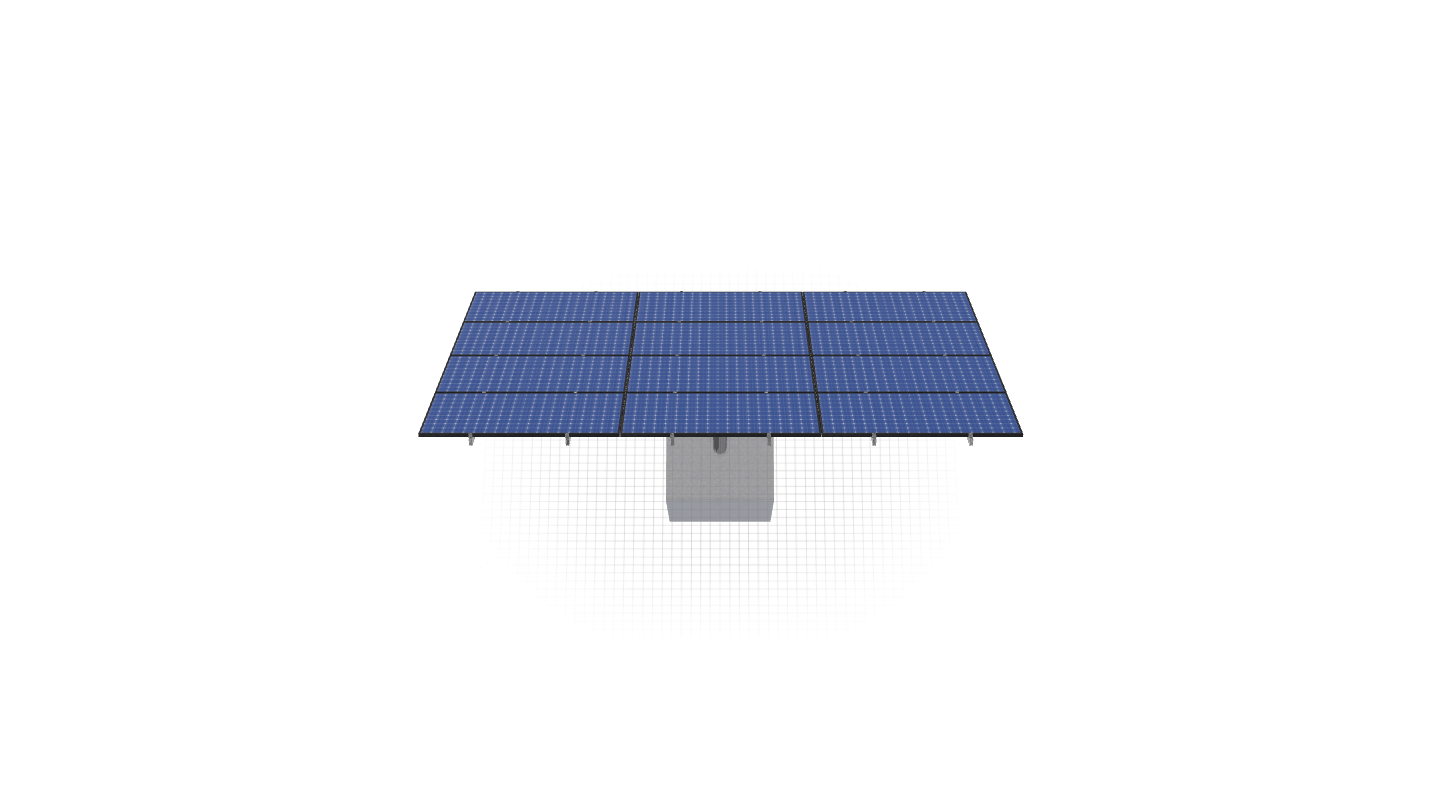

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.06 inches by 39.45 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Paul.JohnsonREV1
$4,171.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.06 inches by 39.45 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 744.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-72-L-4HX3W-162G |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 9.10 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 266.53 |
| ARRAY WIDTH | 20.02 |
| ARRAY HEIGHT | 13.32 |
| RAIL LENGTH | 159.80 |
| MODULE LENGTH | 79.06 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 14.14 |
| PROJECTED PANEL HEIGHT | 10.07 |
| PROJECT ID | PAUL.JOHNSONREV1 |
| SITE ADDRESS | 23512, MILL, CREEK, RD, FRENCHTOWN, MT, 59834, USA |
| MODULE WIDTH | 39.45 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 4171.28 |
| TOTAL WEIGHT | 744.66 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/1b1670bd-ade5-40a8-aa16-12a98ab0a4a7.pdf |
|
| ID | 445.00 |
| 3D Solar link |
