Pietrini_50mods_Sq_Rev.A

$20,461.82

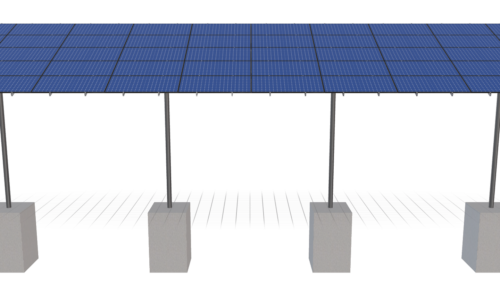

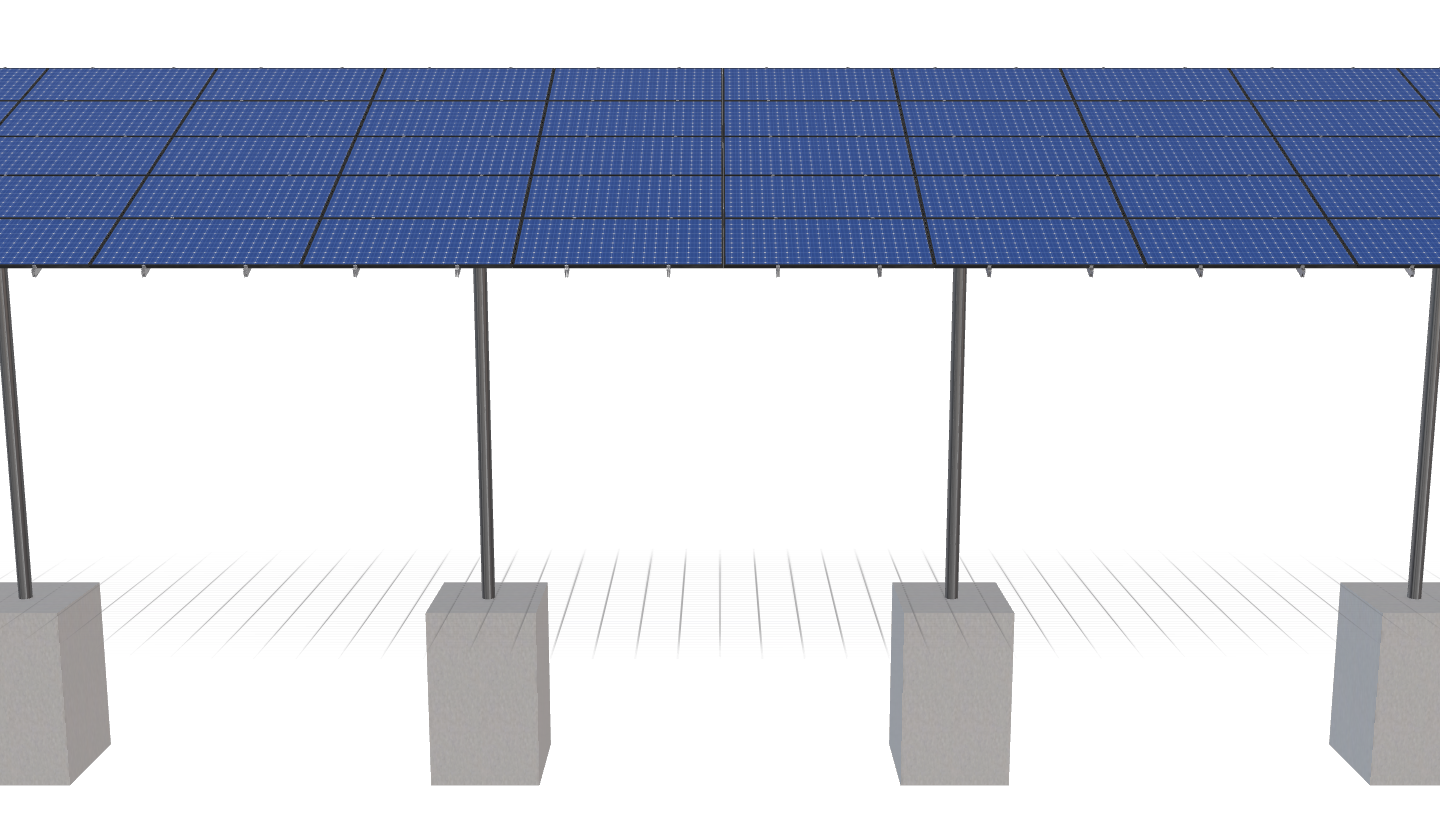

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 43.07 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 4P-19.75-8TOP-HD-45-L-5Hx10W-B78L Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 43.07 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4116.58 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-8TOP-HD-45-L-5HX10W-B78L

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

17.84

WING SPAN

45.00

MAX FOUNDATION DEPTH

7.50

TILT ANGLE

25.00

CANTILEVER

891.00

GROUND CLEARANCE

14.00

NO POLES

4.00

MODULE AREA

1371.85

ARRAY WIDTH

75.57

ARRAY HEIGHT

18.15

RAIL LENGTH

217.85

MODULE LENGTH

89.68

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

74.25

GROUND TO TOP

21.63

PROJECTED PANEL HEIGHT

7.58

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

PROJECT ID

PIETRINI, 50MODS, SQ, REV.A

SITE ADDRESS

510, FEHELEY, DR, KING, OF, PRUSSIA, PA, 19406, USA

MODULE WIDTH

43.07

NUMBER ROWS

5.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

20461.82

TOTAL WEIGHT

4116.58

TOTAL PALLETS

4.00
