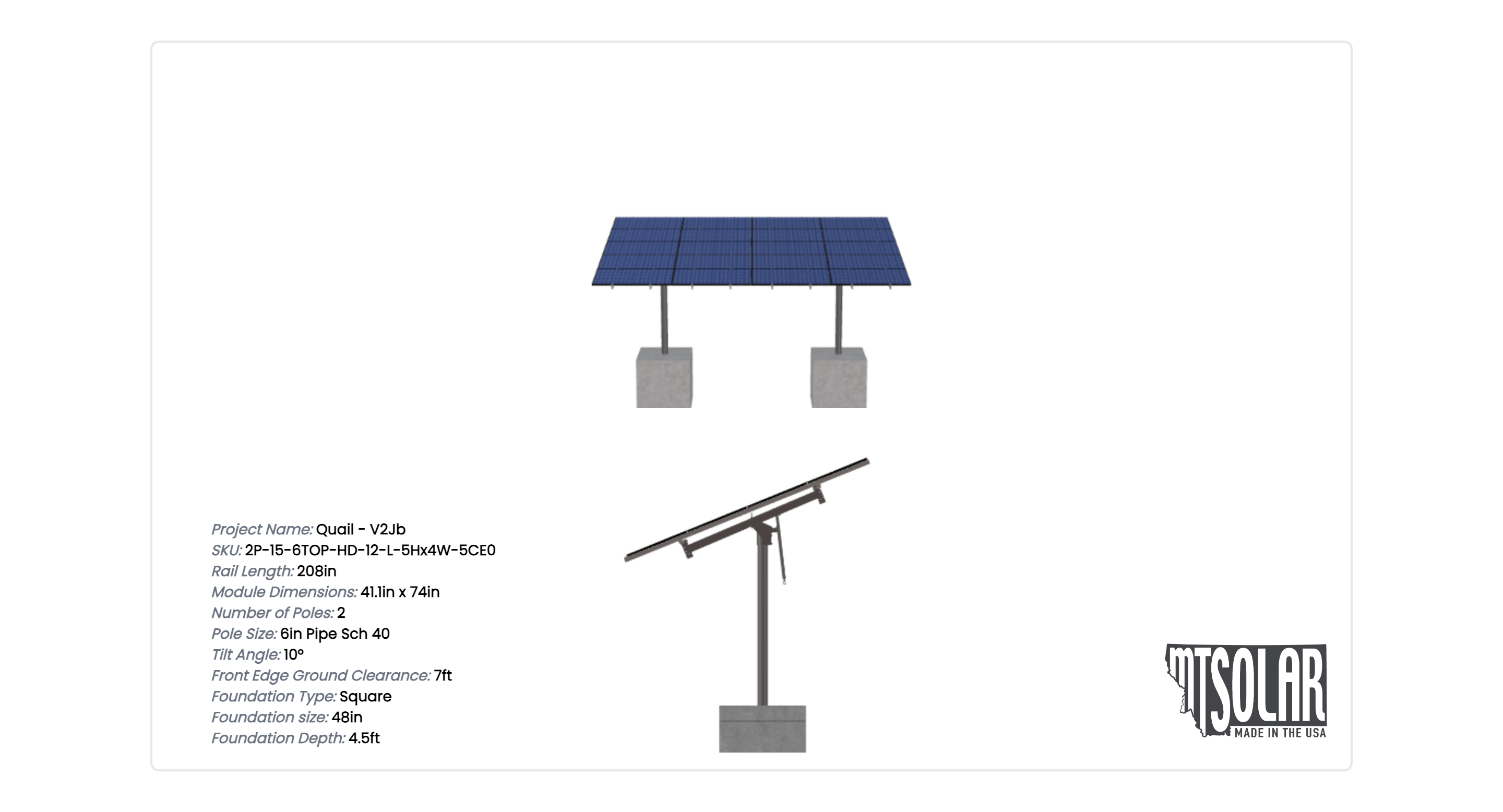

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

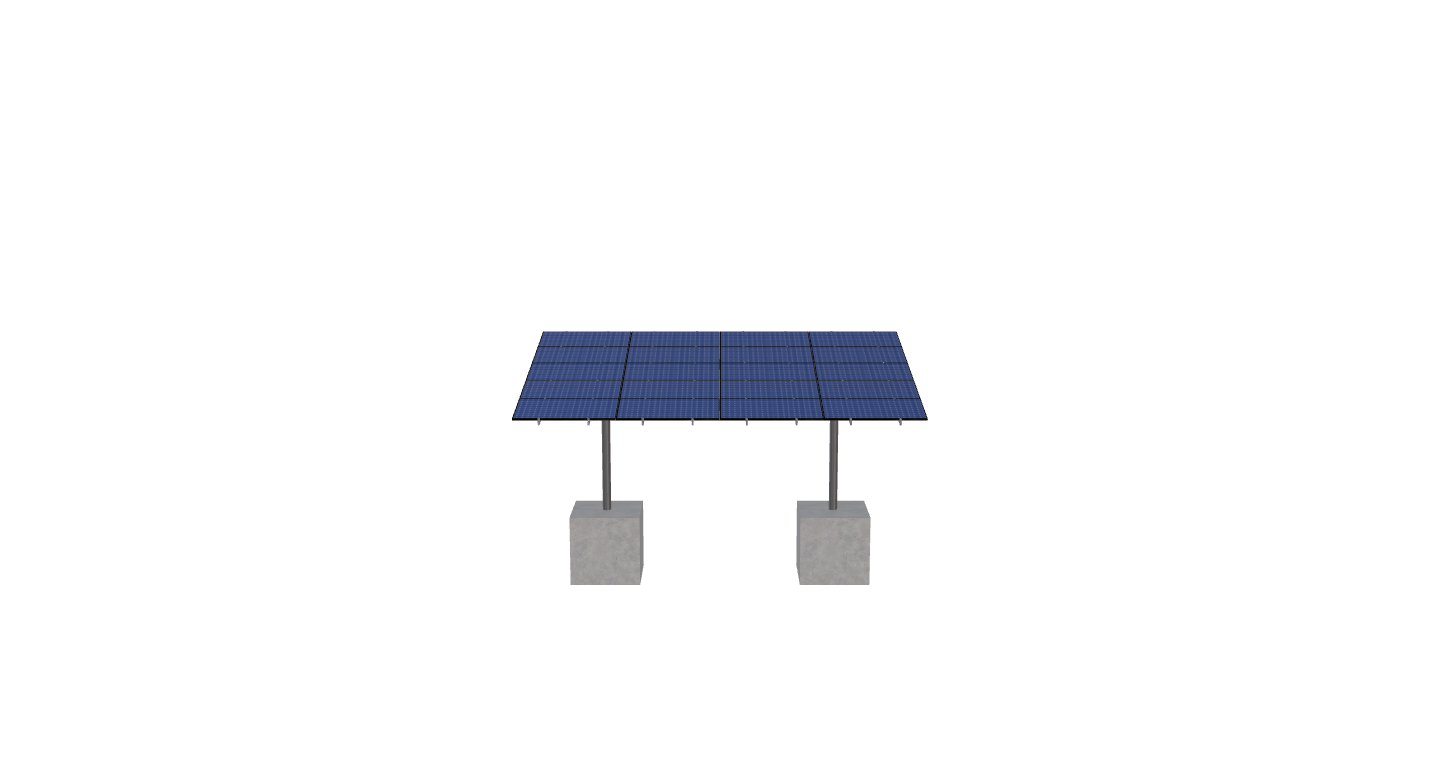

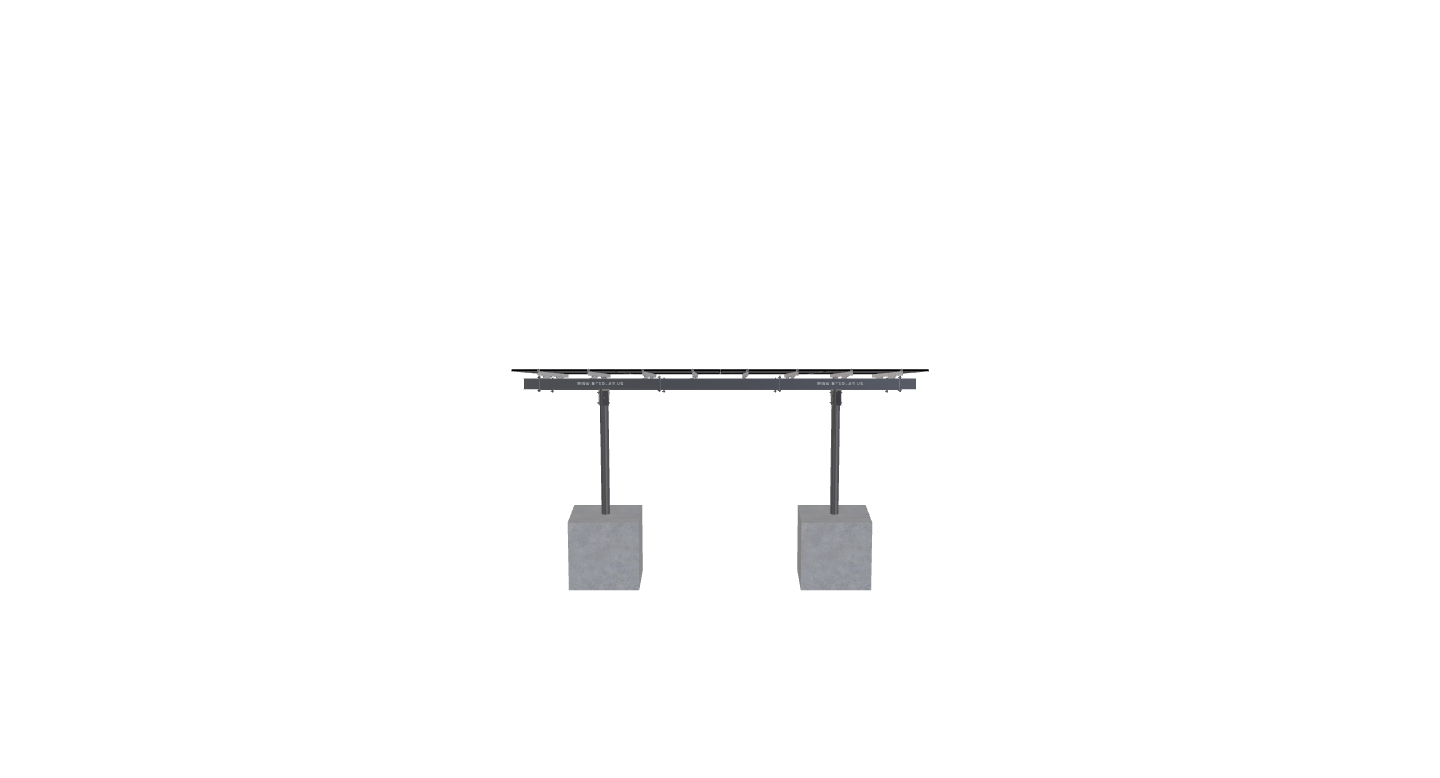

See 3D Model Here

SKU: 2P-15-6TOP-HD-12-L-5Hx4W-5CE0 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1632.9 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-6TOP-HD-12-L-5HX4W-5CE0

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

8.50

WING SPAN

12.00

MAX FOUNDATION DEPTH

4.50

TILT ANGLE

10.00

CANTILEVER

294.00

GROUND CLEARANCE

7.00

NO POLES

2.00

MODULE AREA

433.33

ARRAY WIDTH

25.00

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

24.50

GROUND TO TOP

10.01

PROJECTED PANEL HEIGHT

3.01

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

35.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

DESIGNER NAME
DESIGNER EMAIL
DESIGNER PHONE
PROJECT ID

QUAIL, -, V2JB

SITE ADDRESS

58025, QUAIL, RD, YUCCA, VALLEY, CA, 92284, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

8362.79

TOTAL WEIGHT

1632.90

TOTAL PALLETS

2.00
