This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.97 inches by 41.1 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

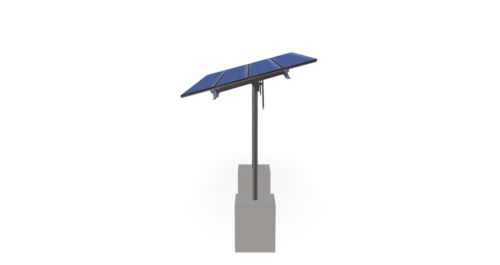

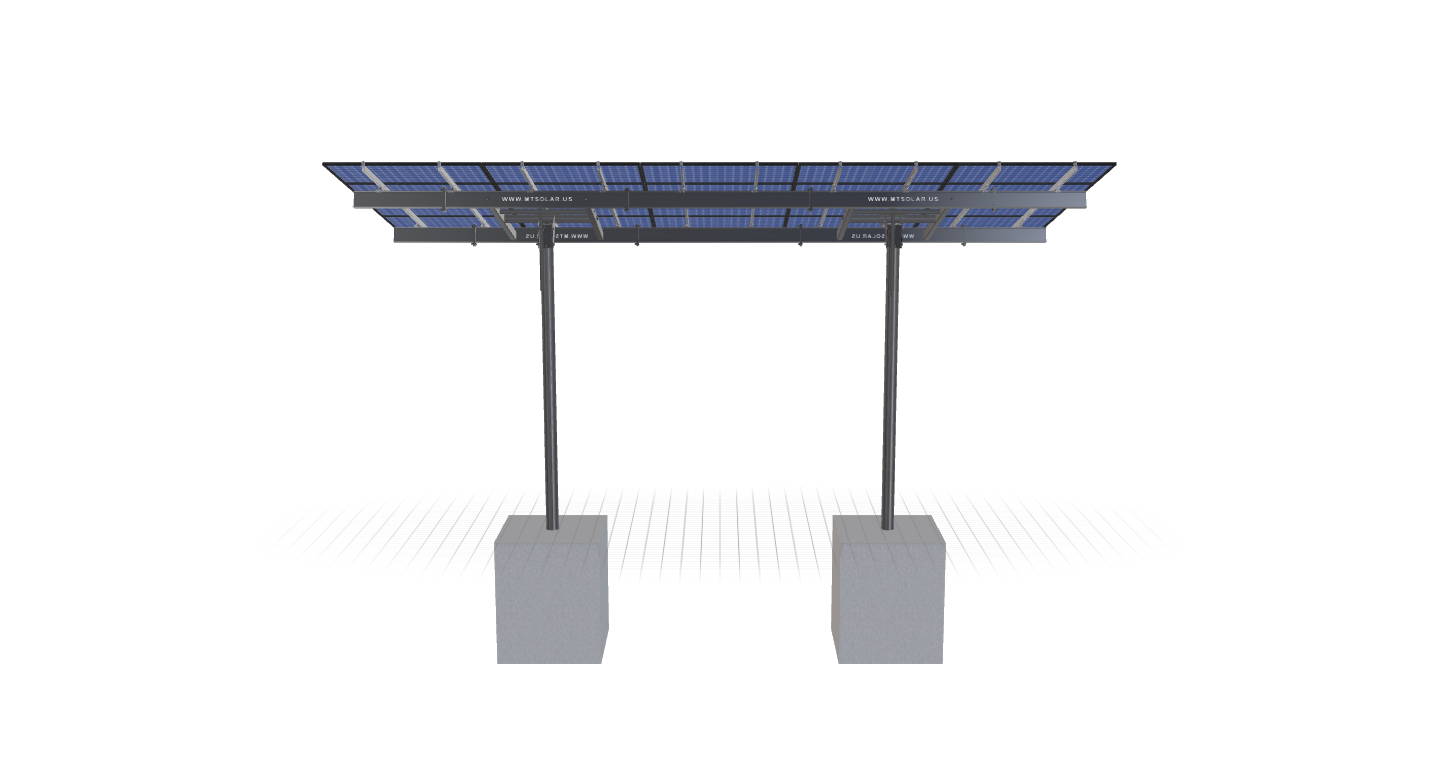

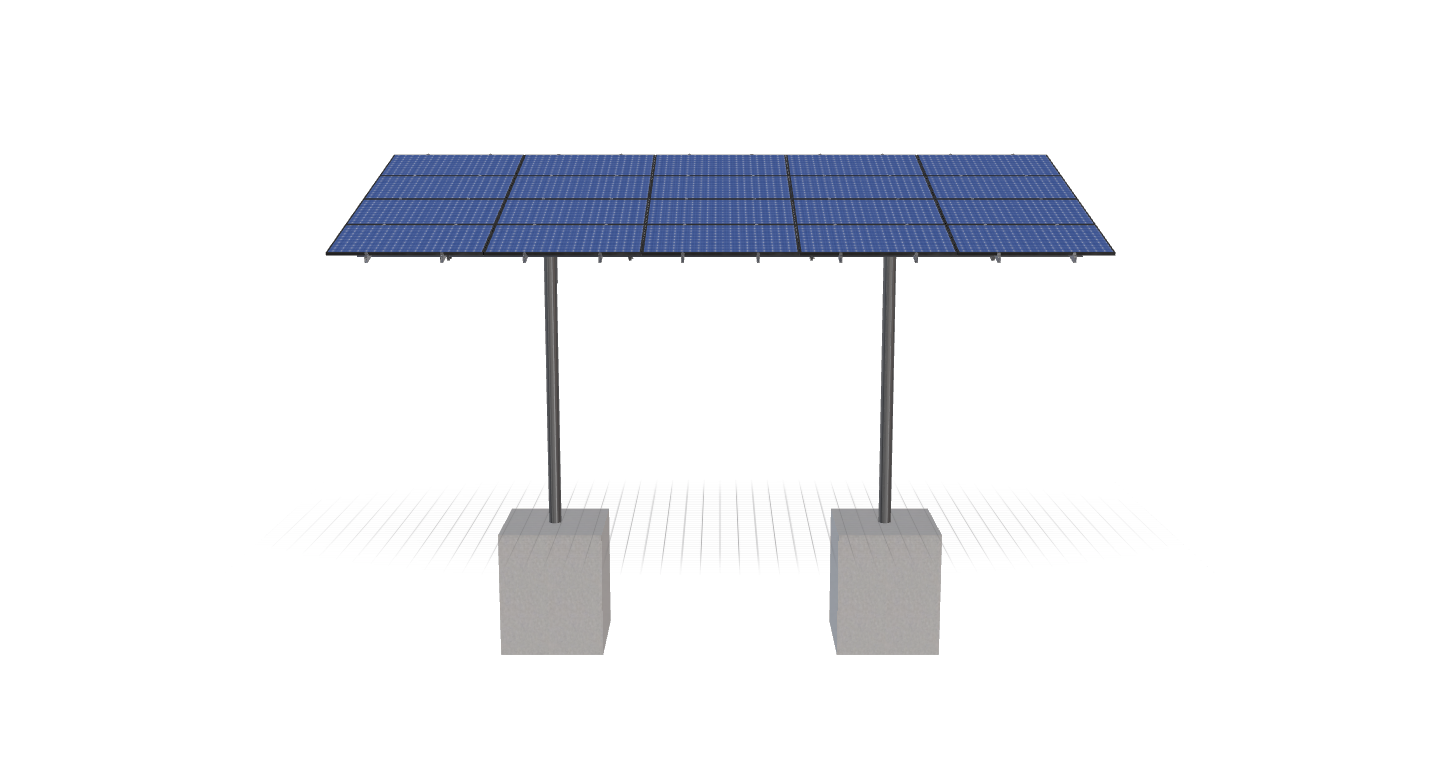

See 3D Model Here
Ray Rink_Rev3
$7,389.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.97 inches by 41.1 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1291.6 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-45-L-4HX5W-FJ4H |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 13.79 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 2.00 |
| MODULE AREA | 433.16 |
| ARRAY WIDTH | 31.24 |
| ARRAY HEIGHT | 13.87 |
| RAIL LENGTH | 166.40 |
| MODULE LENGTH | 73.97 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 15.57 |
| PROJECTED PANEL HEIGHT | 3.55 |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | RAY, RINK, REV3 |
| SITE ADDRESS | 2608, TAYLOR, RD, BETHEL, ISLAND, CA, 94511, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 7389.99 |
| TOTAL WEIGHT | 1291.60 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/bfdf21aa-10e7-4a50-a7c9-320c1d8a0794.pdf |
|
| ID | 523.00 |
| 3D Solar link |
