This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

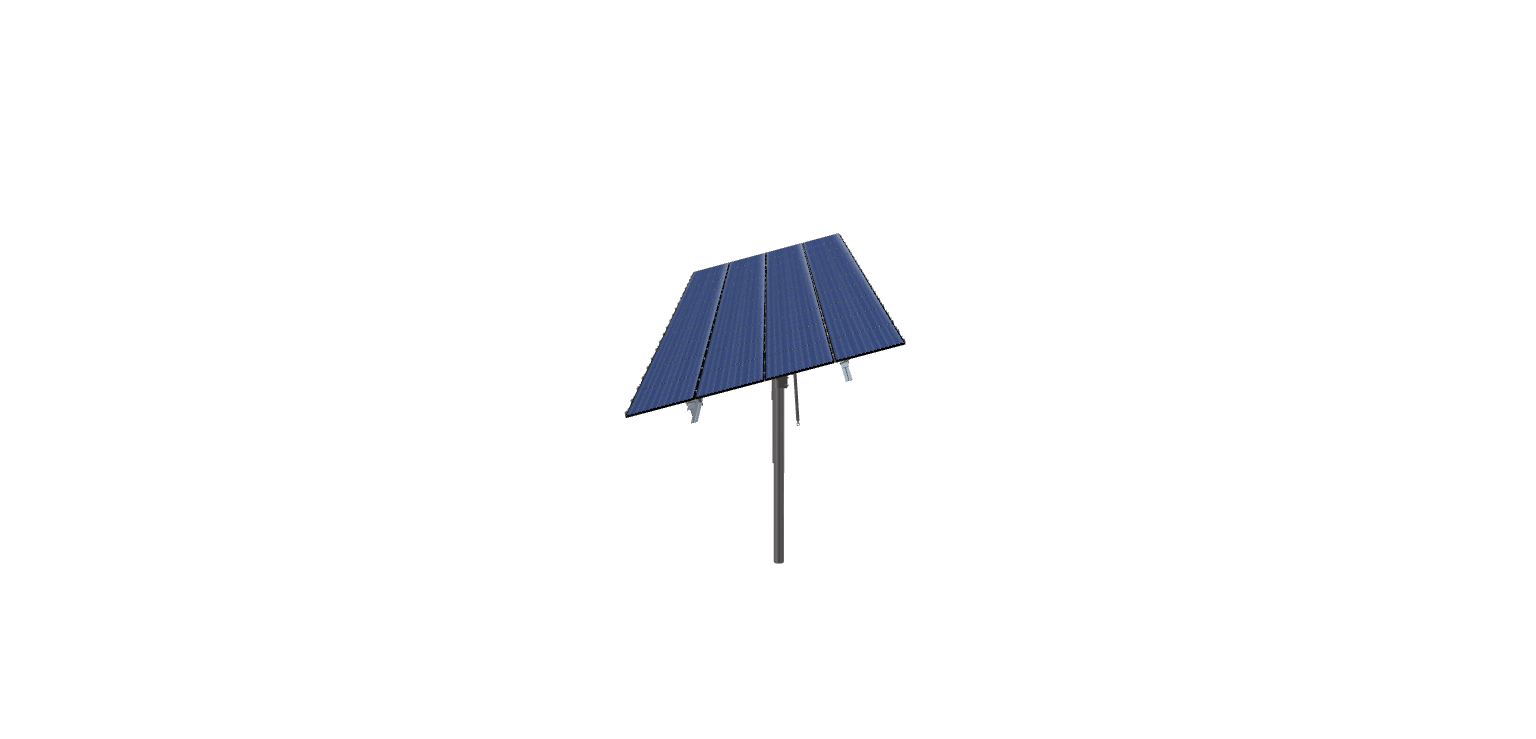

See 3D Model Here
RCC solar car port RevB- GS
$14,988.33
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2772.85 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-57-L-4HX10W-CGBI |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.79 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 871.70 |
| ARRAY WIDTH | 63.17 |
| ARRAY HEIGHT | 13.80 |
| RAIL LENGTH | 165.60 |
| MODULE LENGTH | 74.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 12.55 |
| PROJECTED PANEL HEIGHT | 3.53 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | RCC, SOLAR, CAR, PORT, REVB-, GS |
| SITE ADDRESS | 139, STATE, RD, S-42-622, GREER, SC, 29651, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14988.33 |
| TOTAL WEIGHT | 2772.85 |
| TOTAL PALLETS | 3.00 |
