Red lodge Carport – 4H – V1Jb

$13,814.73

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

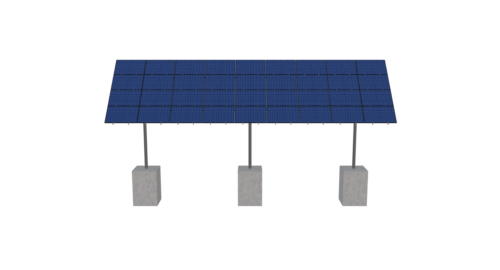

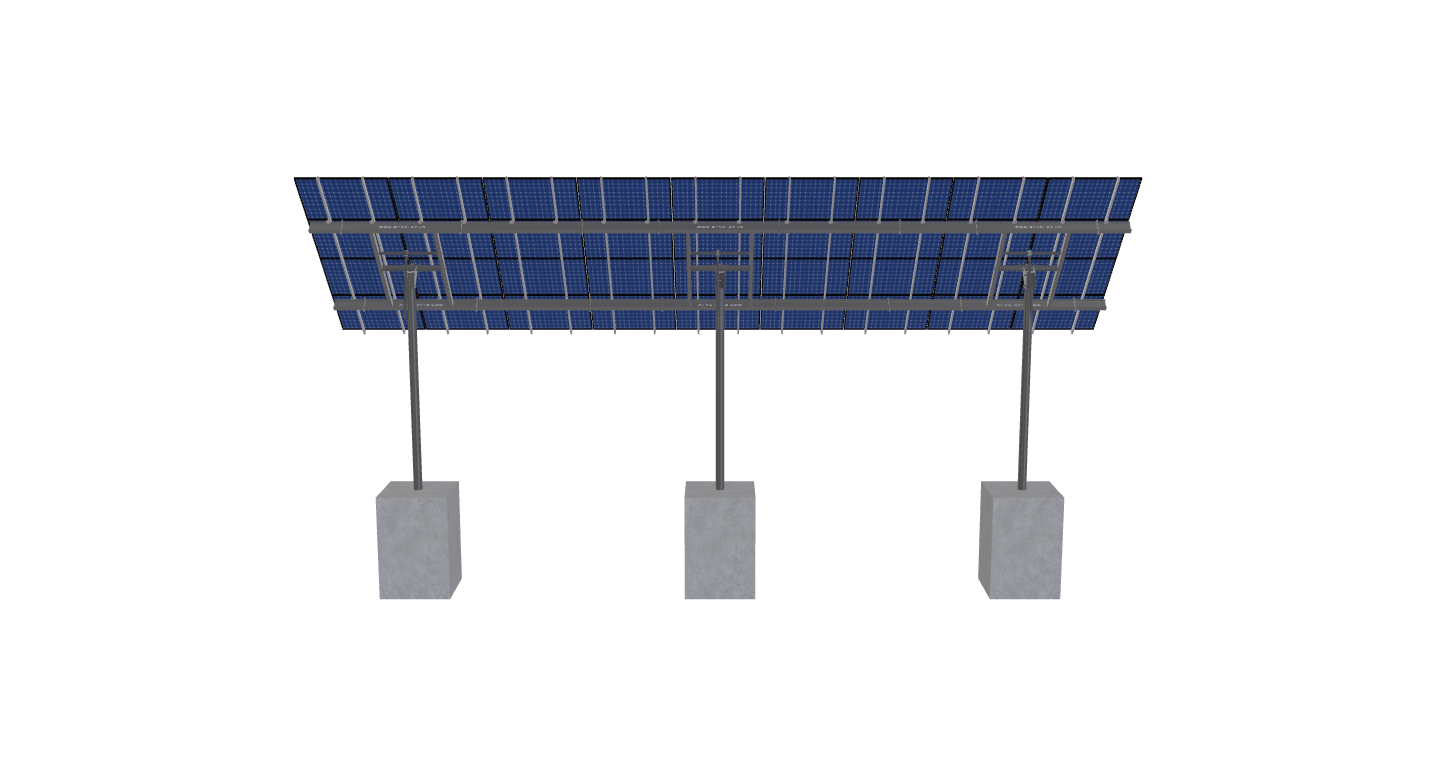

See 3D Model Here

SKU: 3P-19.75-6TOP-HD-24-L-4Hx9W-C3B9 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2515.71 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-6TOP-HD-24-L-4HX9W-C3B9

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

14.45

WING SPAN

24.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

46.00

CANTILEVER

612.00

GROUND CLEARANCE

9.00

NO POLES

3.00

MODULE AREA

784.88

ARRAY WIDTH

51.75

ARRAY HEIGHT

15.17

RAIL LENGTH

182.00

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

51.00

GROUND TO TOP

19.91

PROJECTED PANEL HEIGHT

10.91

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

106.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

DESIGNER NAME
DESIGNER EMAIL

CHRISTINA@MTSOLAR.US

DESIGNER PHONE
PROJECT ID

RED, LODGE, CARPORT, -, 4H, -, V1JB

SITE ADDRESS

305, OAKES, AVE, N, RED, LODGE, MT, 59068, USA

MODULE WIDTH

45.00

NUMBER ROWS

4.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

13814.73

TOTAL WEIGHT

2515.71

TOTAL PALLETS

3.00
