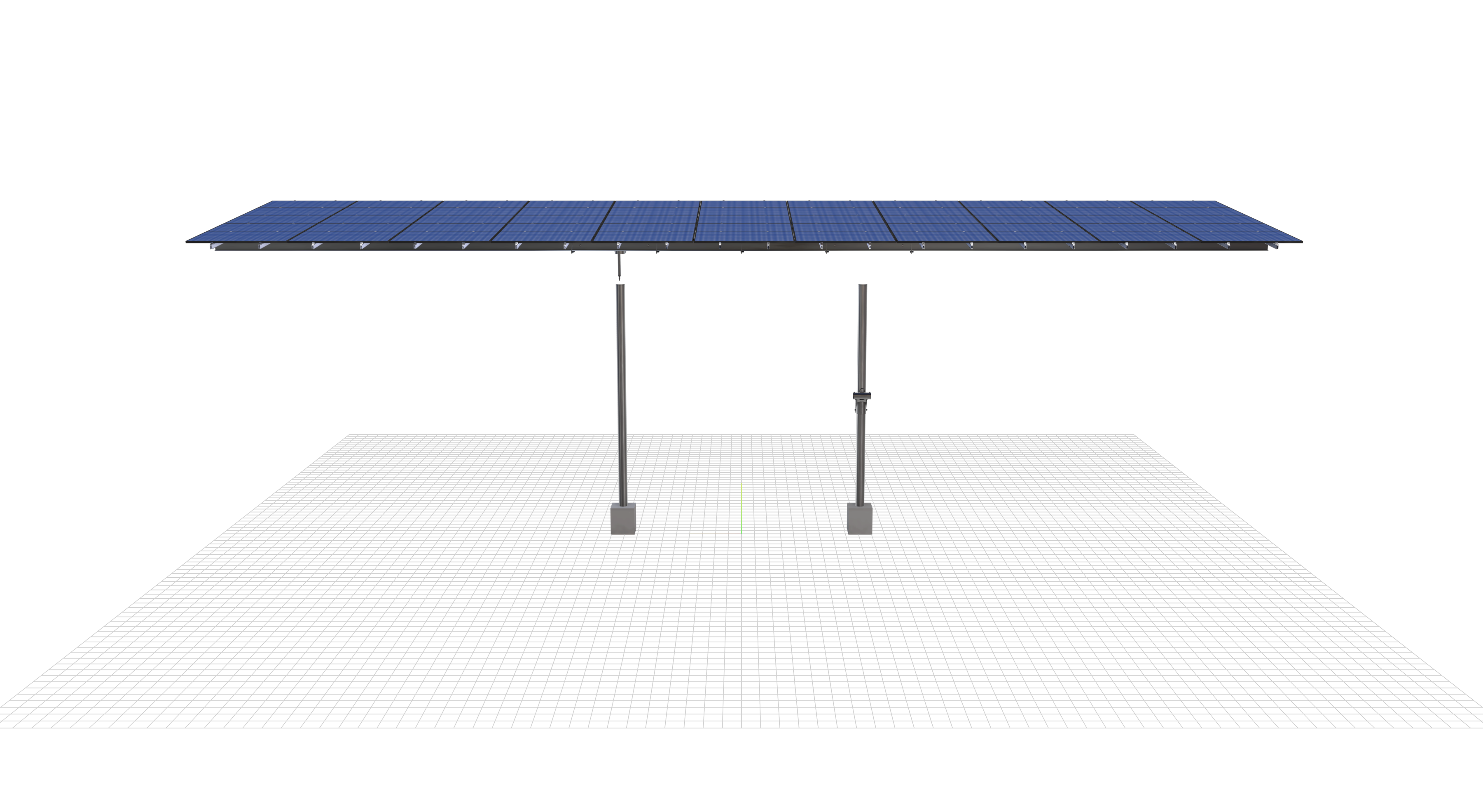

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.6 inches by 41.1 inches and an array layout of 11 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
RevolutionSolarLLC%7CCivicWorksResiliencyHub%7CRevD
$19,072.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.6 inches by 41.1 inches and an array layout of 11 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| SKU CODE | 3P-22.5-6TOP-XD-57-L-5HX11W |
|---|---|
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF_POLES | 3 |
| POLE SPACING | 15 |
| POLE HEIGHT | 15.76 |
| WING SPAN | 57 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| TILT ANGLE | 5 |
| CANTILEVER | 744 |
| GROUND CLEARANCE | 15 |
| NO POLES | 3 |
| MODULE AREA | 1089.9777777777776 |
| ARRAY WIDTH | 62.883333333333326 |
| ARRAY HEIGHT | 17.333333333333332 |
| RAIL LENGTH | 208 |
| MODULE LENGTH | 67.6 |
| PASSED OVERHANG_CHECK | TRUE |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 62 |
| GROUND TO_TOP | 16.50162081775653 |
| PROJECTED PANEL_HEIGHT | 1.4925420945536487 |
| WIND SPEED_OVERRIDE | NULL |
| SNOW LOAD_OVERRIDE | NULL |
| DIRECT SNOW_LOAD | FALSE |
| PROJECT ID | REVOLUTIONSOLARLLC, CIVICWORKSRESILIENCYHUB, REVD |
| SITE ADDRESS | 3501, BREHMS, LN, BALTIMORE, MD, 21213, USA |
| MODULE WIDTH | 41.1 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 11 |
| MAIN PIPE_SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 19072.81 |
| TOTAL WEIGHT | 3890.6899999999996 |
| TOTAL PALLETS | 3 |
https://SKYCIVQUOTES.S3.AMAZONAWS.COM/EFF521E7-162D-4C5D-83B1-C4B62C55E4D6.PDF |
|
| ID | 223 |
