RG670A_MT Solar-v3CU

$20,071.50

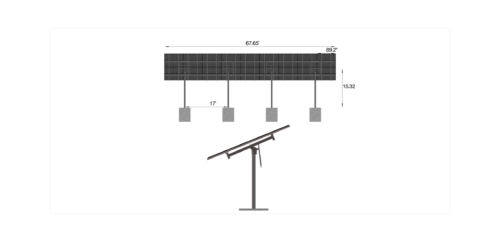

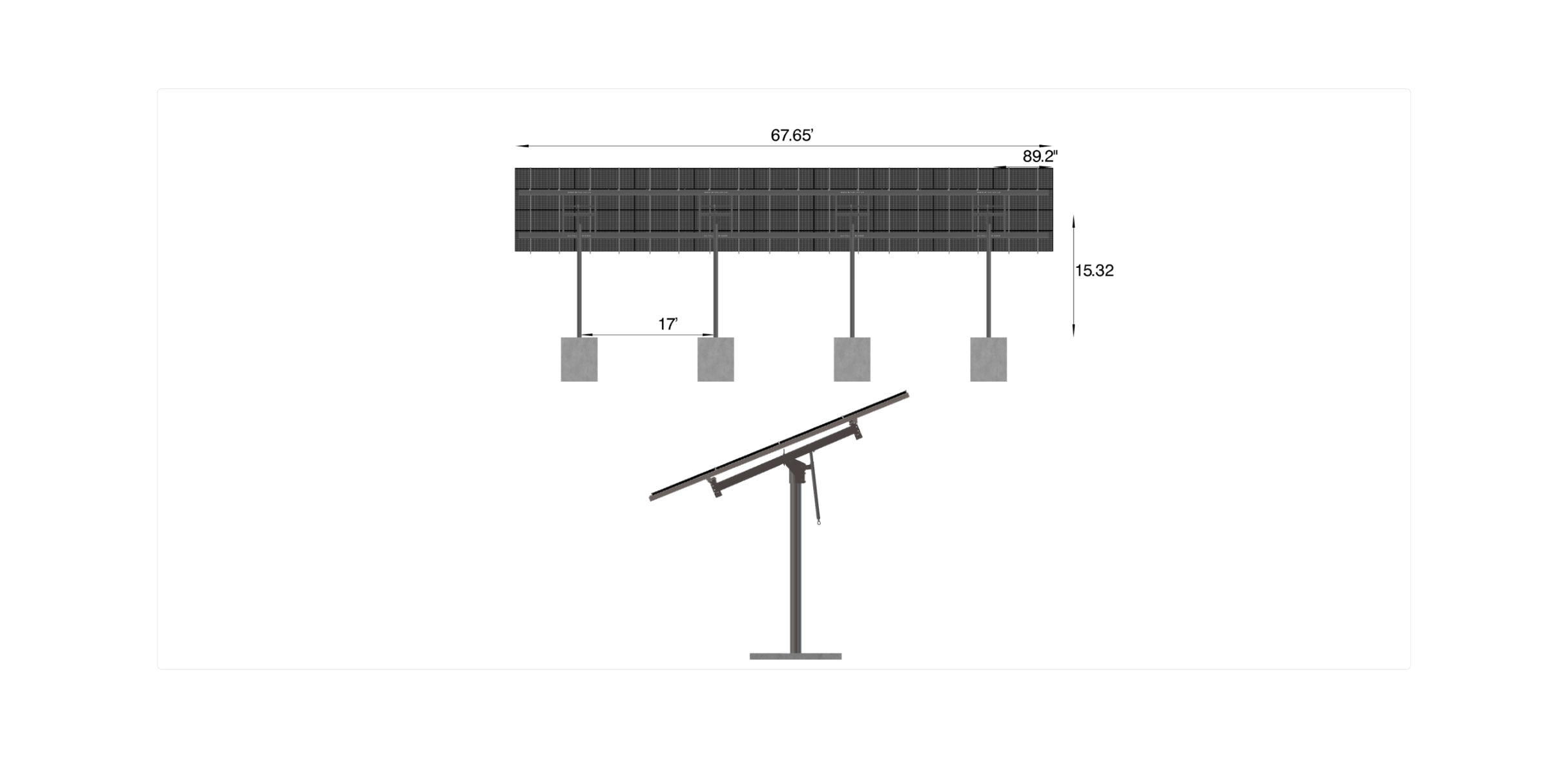

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

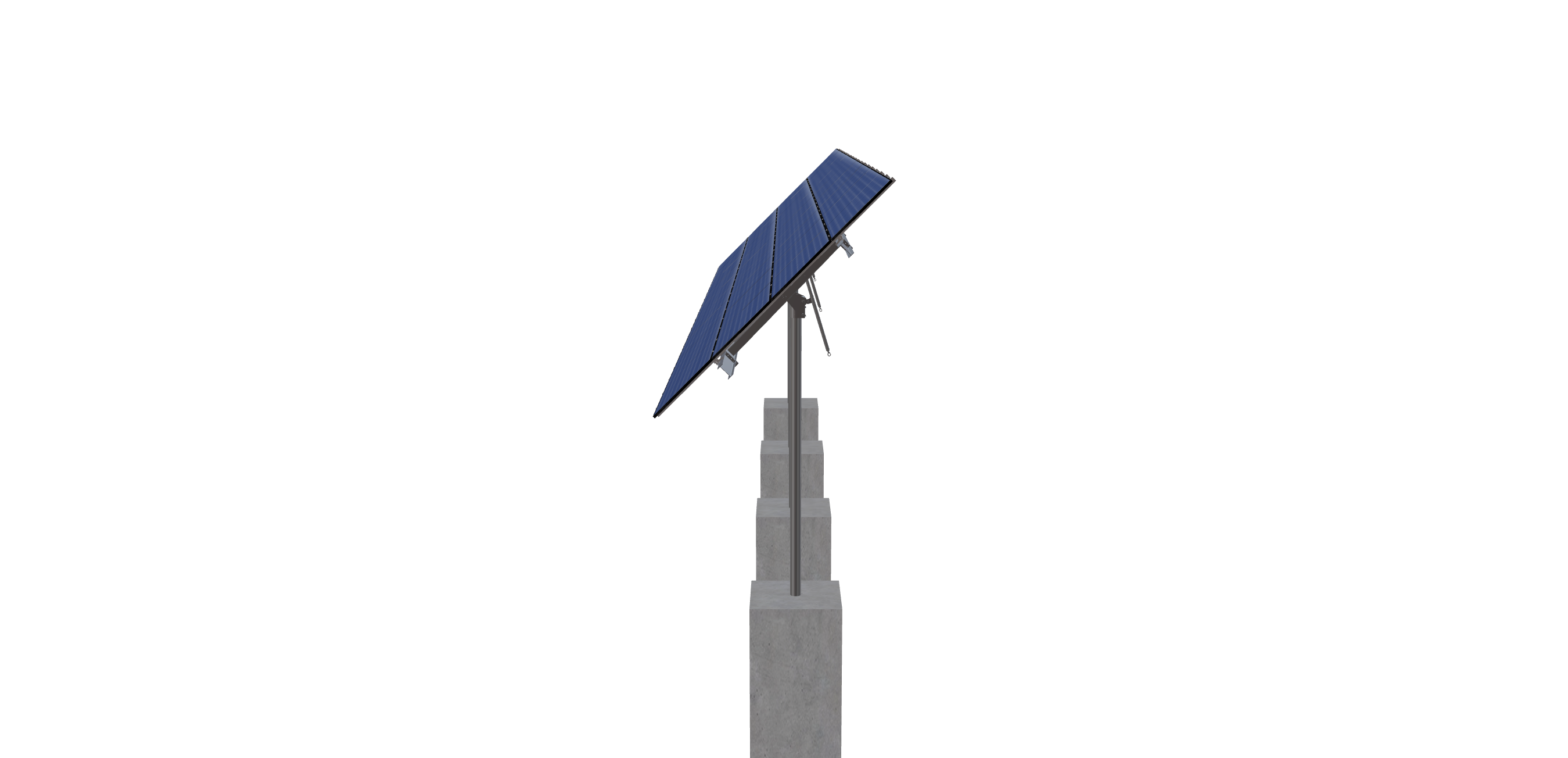

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-17-10TOP-XD-45-L-4Hx9W-377L Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3765.98 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-17-10TOP-XD-45-L-4HX9W-377L

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

17.00

POLE HEIGHT

15.32

WING SPAN

45.00

MAX FOUNDATION DEPTH

8.25

TILT ANGLE

45.00

CANTILEVER

792.00

GROUND CLEARANCE

10.00

NO POLES

4.00

MODULE AREA

1017.01

ARRAY WIDTH

67.65

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

89.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

66.00

GROUND TO TOP

20.57

PROJECTED PANEL HEIGHT

10.51

PROJECT ID

RG670A, MT, SOLAR-V3CU

SITE ADDRESS

3250, SANHEDRIN, RD, ELK, CREEK, CA, 95939, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

9.00

RISK CATEGORY

III

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

XD

POLE OVERRIDE

10, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

100.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

20071.50

TOTAL WEIGHT

3765.98

TOTAL PALLETS

4.00
