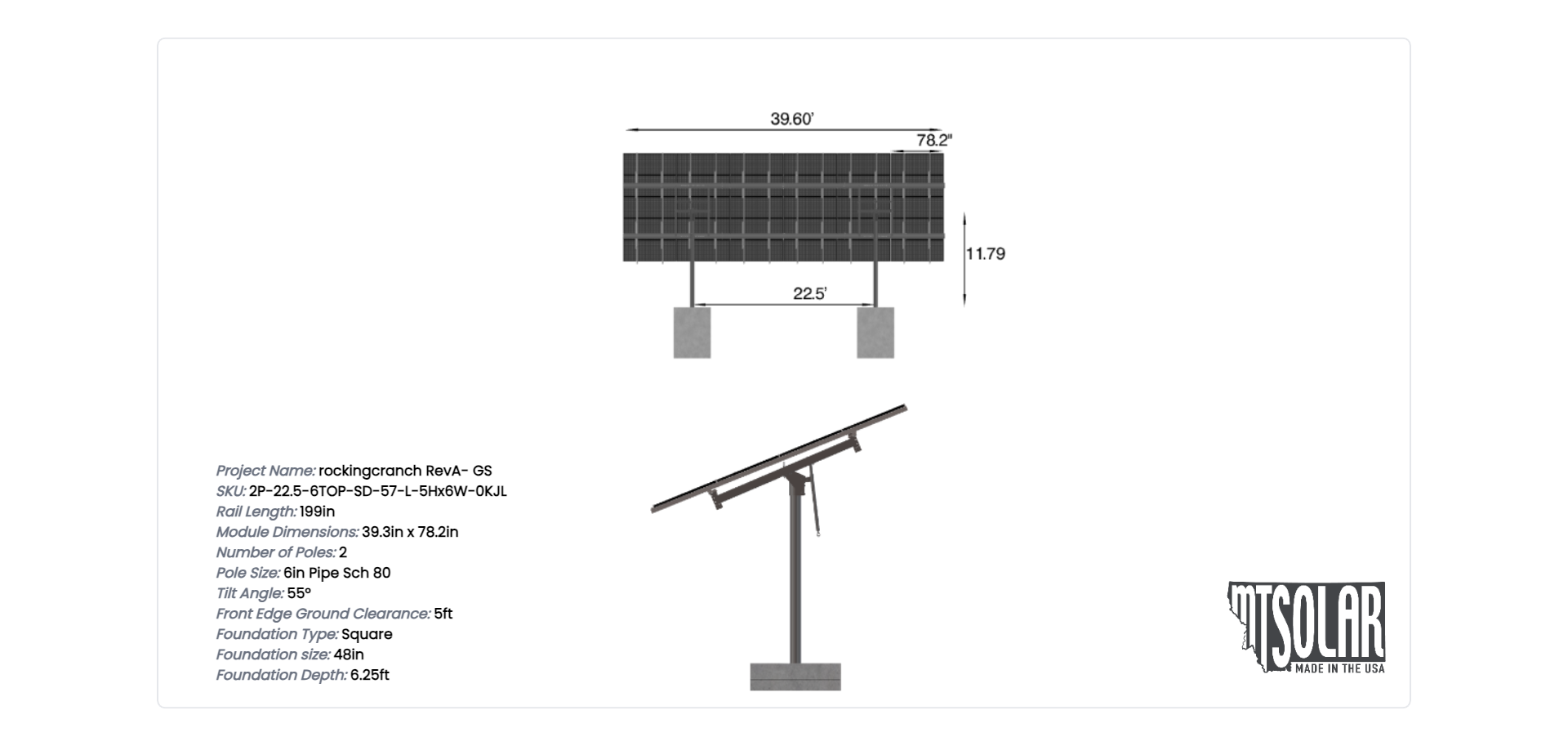

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.2 inches by 39.3 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

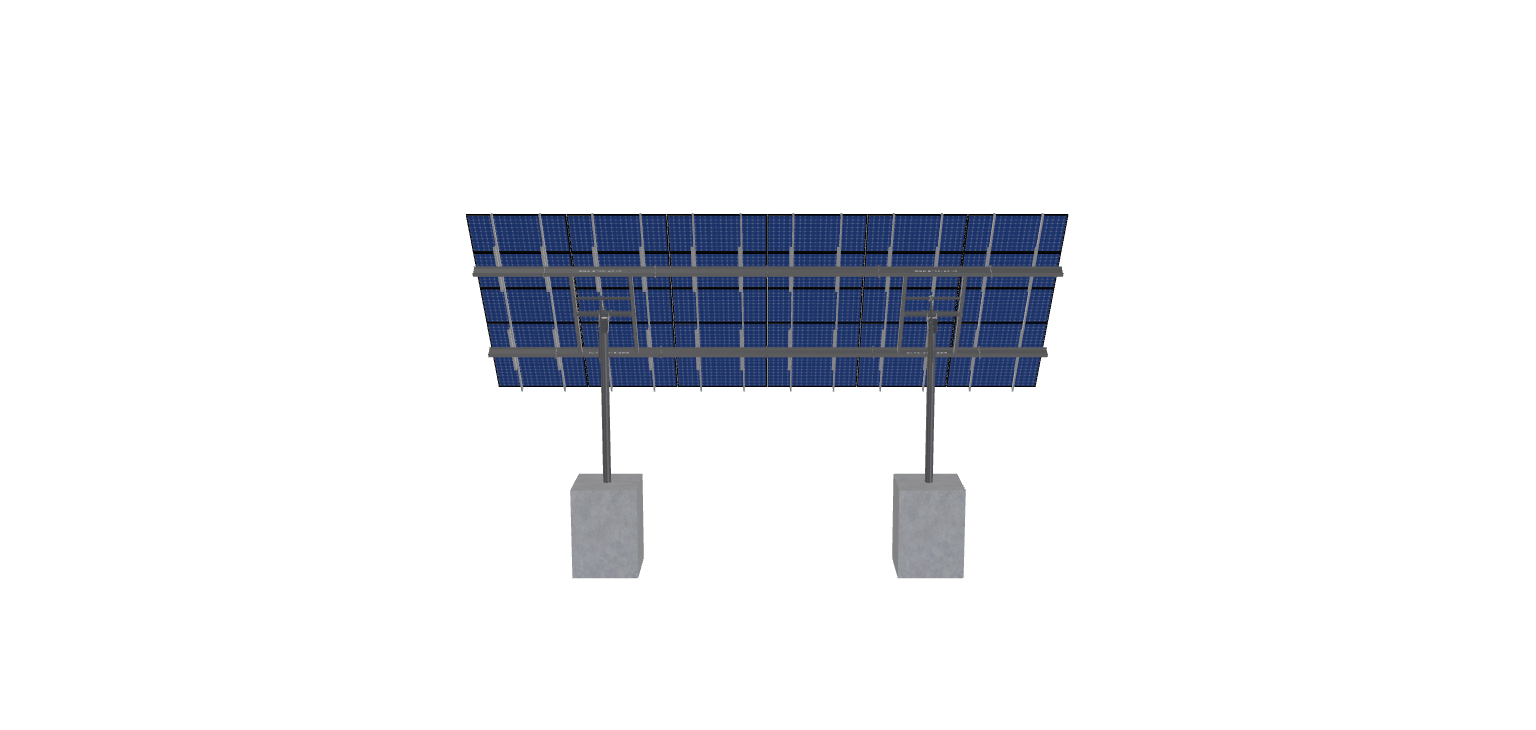

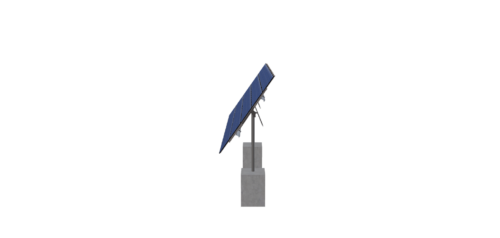

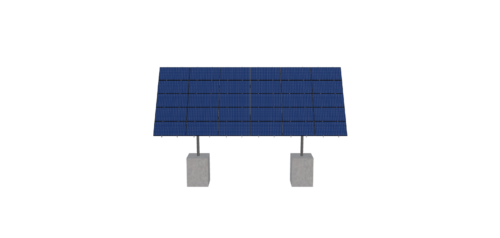

See 3D Model Here
rockingcranch RevA- GS
$9,594.45
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.2 inches by 39.3 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1907.6399999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-57-L-5HX6W-0KJL |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.79 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 656.70 |
| ARRAY WIDTH | 39.60 |
| ARRAY HEIGHT | 16.58 |
| RAIL LENGTH | 199.00 |
| MODULE LENGTH | 78.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 18.50 |
| PROJECTED PANEL HEIGHT | 13.41 |
| PROJECT ID | ROCKINGCRANCH, REVA-, GS |
| SITE ADDRESS | 37892, LINMAN, RD, CRAWFORD, CO, 81415, USA |
| MODULE WIDTH | 39.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 34.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 9594.45 |
| TOTAL WEIGHT | 1907.64 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/e5ac4efb-4284-4530-a1b6-e10b770d922b.pdf |
|
| ID | 3918.00 |
| 3D Solar link |
