This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

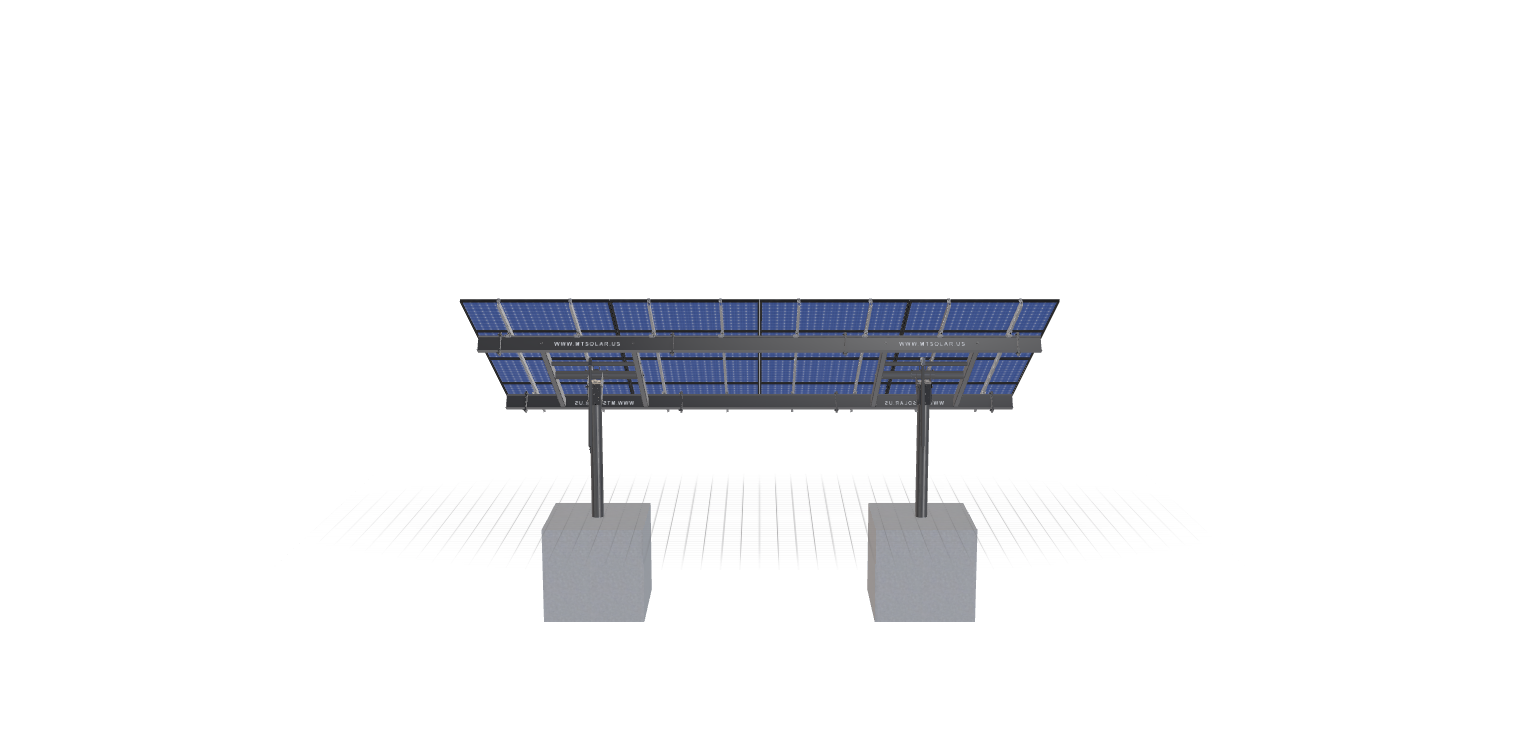

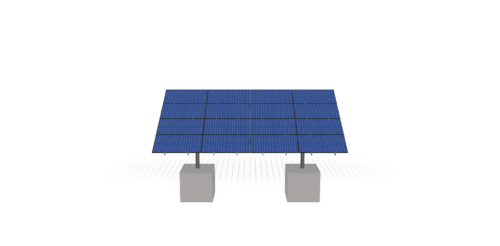

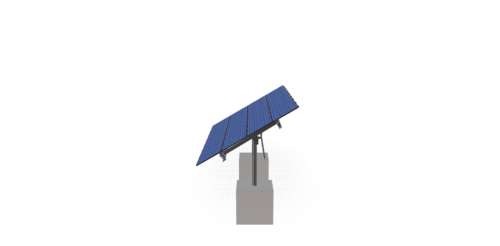

See 3D Model Here
ScottJohnsonrRevA
$6,696.38
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1155.38 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-15-6TOP-SD-12-L-4HX4W-D2LL |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 15.00 |
POLE HEIGHT | 6.45 |
WING SPAN | 12.00 |
MAX FOUNDATION DEPTH | 4.25 |
TILT ANGLE | 30.00 |
CANTILEVER | 294.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 2.00 |
MODULE AREA | 348.68 |
ARRAY WIDTH | 25.27 |
ARRAY HEIGHT | 13.80 |
RAIL LENGTH | 165.60 |
MODULE LENGTH | 74.80 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 24.50 |
GROUND TO TOP | 9.86 |
PROJECTED PANEL HEIGHT | 6.82 |
PROJECT ID | SCOTTJOHNSONRREVA |
SITE ADDRESS | 1020, STEAMBOAT, VALLEY, RD, LYONS, CO, 80540, USA |
MODULE WIDTH | 40.90 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 160.00 |
SNOW LOAD OVERRIDE | 45.00 |
DIRECT SNOW LOAD | FALSE |
TOTAL PRICE | 6696.38 |
TOTAL WEIGHT | 1155.38 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/c3741b39-ad58-496d-91d6-e8332d6f8306.pdf |
|
ID | 515.00 |
3D Solar link |
