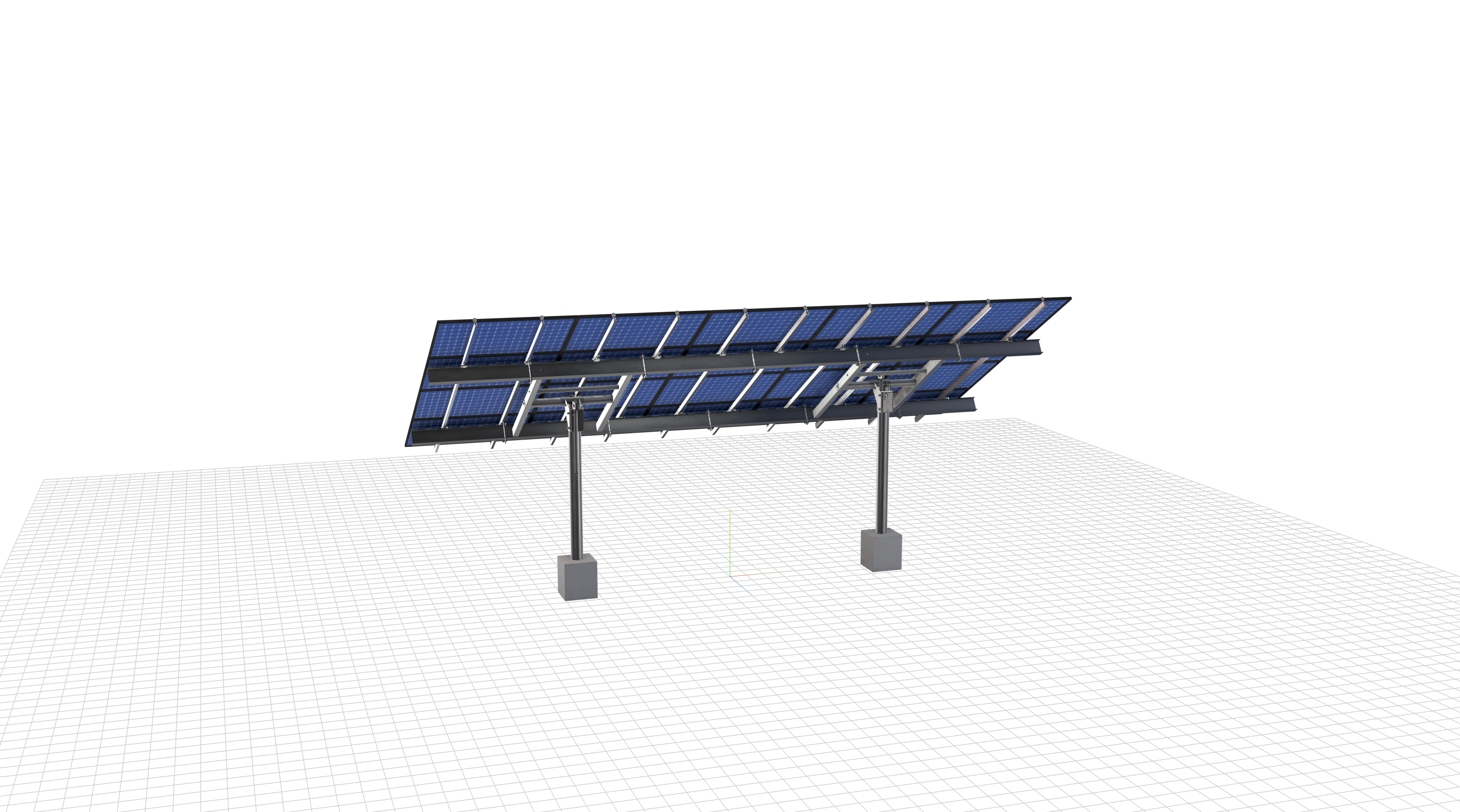

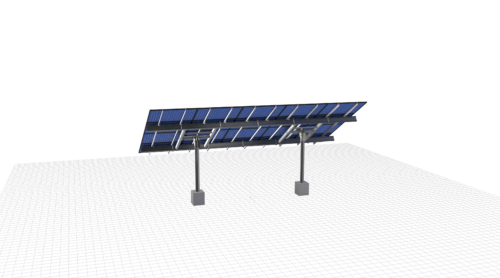

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 45.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Shepperd_
$7,412.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 45.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
https://solver.skyciv.com/temp/mergedpdf_mbyam74czg0sg0o8.php |
|
| SKU CODE | 2P-17-6TOP-SD-24-L-4Hx5W |
| DUTY SIZE | SD |
| POLE SIZE | 6in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 2 |
| POLE SPACING | 15 |
| POLE HEIGHT | 8.84 |
| WING SPAN | 24 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 30 |
| CANTILEVER | 342 |
| GROUND CLEARANCE | 5 |
| NO POLES | 2 |
| MODULE AREA | 440.5111111111111 |
| ARRAY WIDTH | 28.666666666666668 |
| ARRAY HEIGHT | 15.366666666666667 |
| RAIL LENGTH | 184.4 |
| MODULE LENGTH | 67.8 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 28.5 |
| GROUND TO_TOP | 12.641666666666666 |
| PROJECTED PANEL_HEIGHT | 7.6 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | Shepperd_ |
| SITE ADDRESS | 179, Fielder, Ln, Grants, Pass, OR, 97526, USA |
| MODULE WIDTH | 45.6 |
| NUMBER ROWS | 4 |
| NUMBER COLUMNS | 5 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 7412.92 |
| TOTAL WEIGHT | 1287.1 |
| TOTAL PALLETS | 2 |
| ID | 123 |
