This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

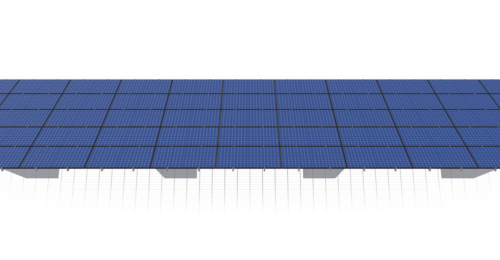

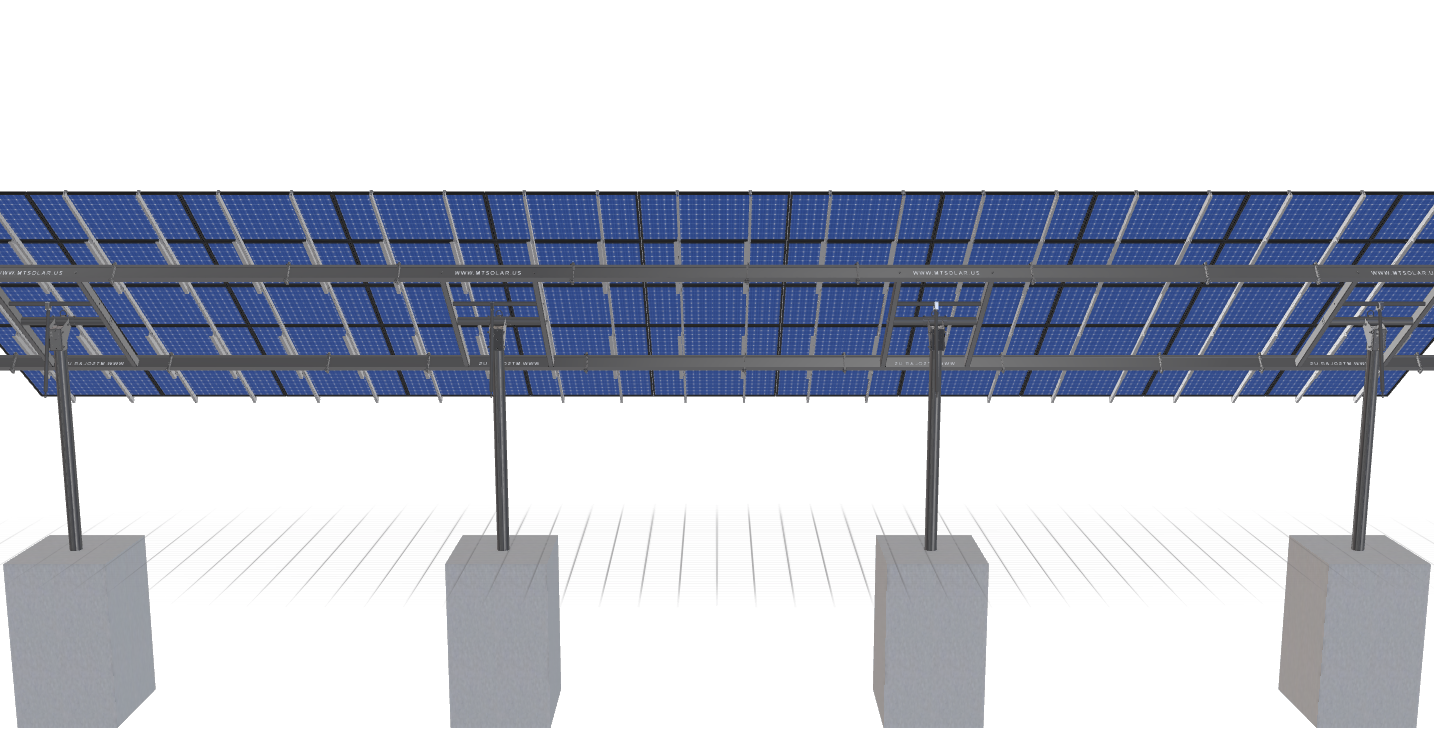

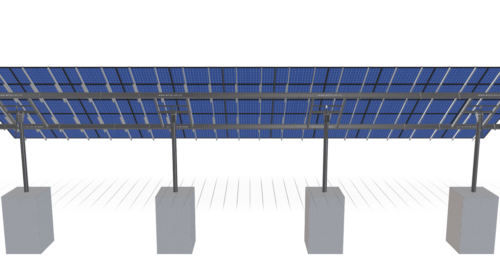

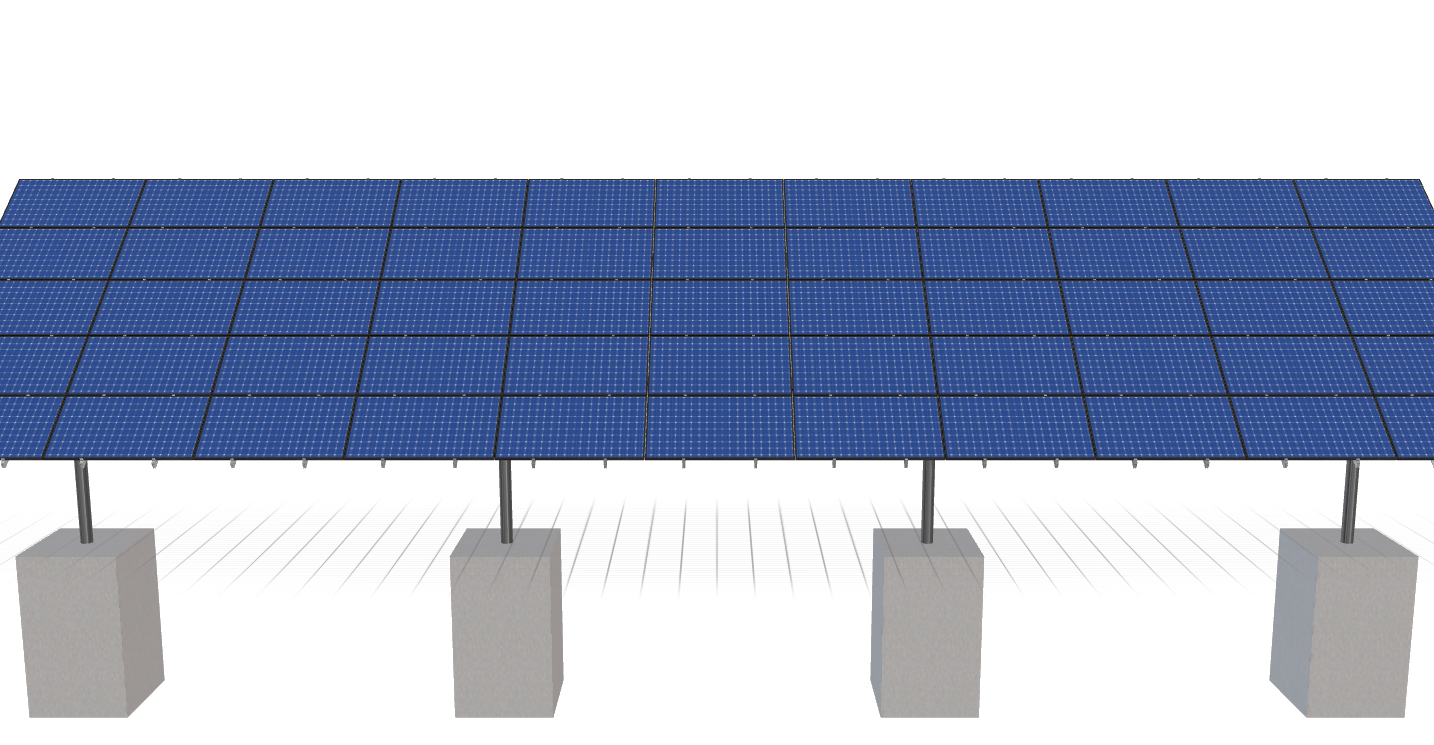

See 3D Model Here
Simmons_Rev1
$22,970.40
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 4612.84 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-19.75-10TOP-XD-12-L-5HX11W-76CC |
DUTY SIZE | XD |
POLE SIZE | 10IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 10.57 |
WING SPAN | 12.00 |
MAX FOUNDATION DEPTH | 7.75 |
TILT ANGLE | 40.00 |
CANTILEVER | 825.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 4.00 |
MODULE AREA | 1191.67 |
ARRAY WIDTH | 68.75 |
ARRAY HEIGHT | 17.33 |
RAIL LENGTH | 208.00 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 68.75 |
GROUND TO TOP | 16.07 |
PROJECTED PANEL HEIGHT | 11.01 |
PROJECT ID | SIMMONS, REV1 |
SITE ADDRESS | 5, NOBLE, RD, PINEDALE, WY, 82941, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 11.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 115.00 |
SNOW LOAD OVERRIDE | 70.00 |
DIRECT SNOW LOAD | FALSE |
TOTAL PRICE | 22970.40 |
TOTAL WEIGHT | 4612.84 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/de51d242-14a6-46e4-ba29-0a7a533ae2d1.pdf |
|
ID | 436.00 |
3D Solar link |
