This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 40.63 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Sister Lake Final – V1Jb
$5,843.29
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 40.63 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

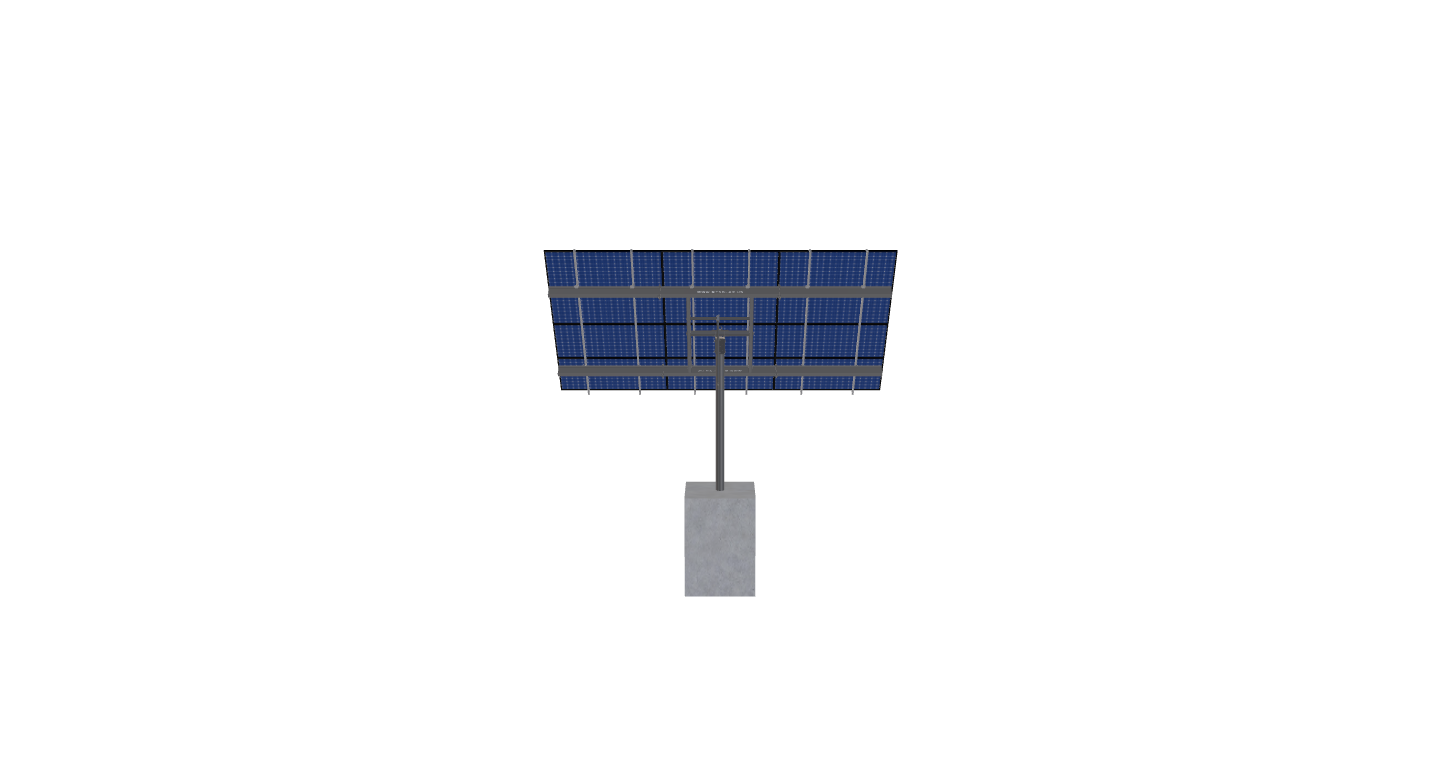

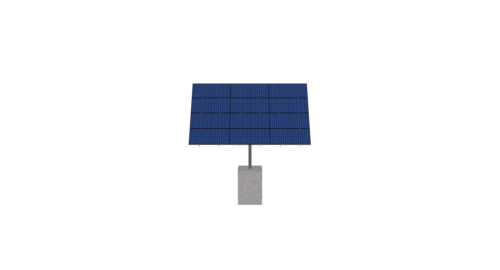

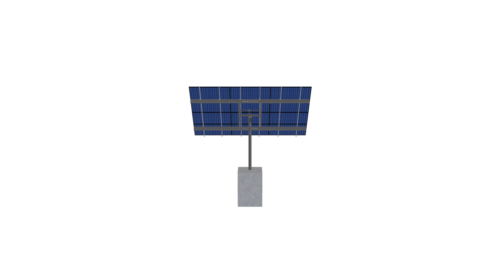

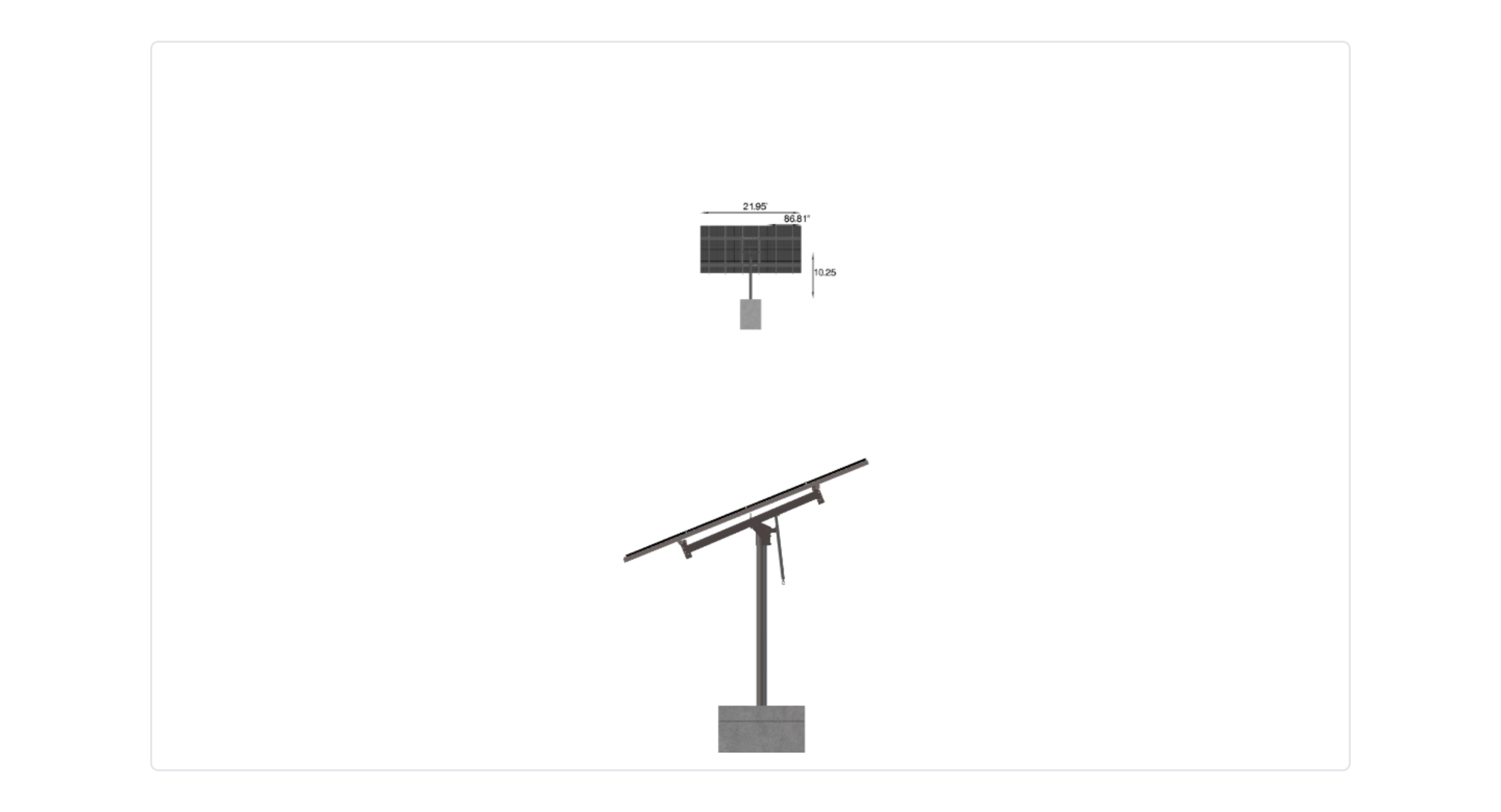

See 3D Model Here
Additional information
| Weight | 1054.1100000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-84-L-4HX3W-E2B6 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.25 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 300.97 |
| ARRAY WIDTH | 21.95 |
| ARRAY HEIGHT | 13.71 |
| RAIL LENGTH | 164.52 |
| MODULE LENGTH | 86.81 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 15.44 |
| PROJECTED PANEL HEIGHT | 10.37 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SISTER, LAKE, FINAL, -, V1JB |
| SITE ADDRESS | 10134, SISTER, LAKE, RD, FINLAND, MN, 55603, USA |
| MODULE WIDTH | 40.63 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5565.04 |
| TOTAL WEIGHT | 1054.11 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/f7e8b1da-2a35-402c-9839-b85ade935922.pdf |
|
| ID | 7223.00 |
| 3D Solar link |
