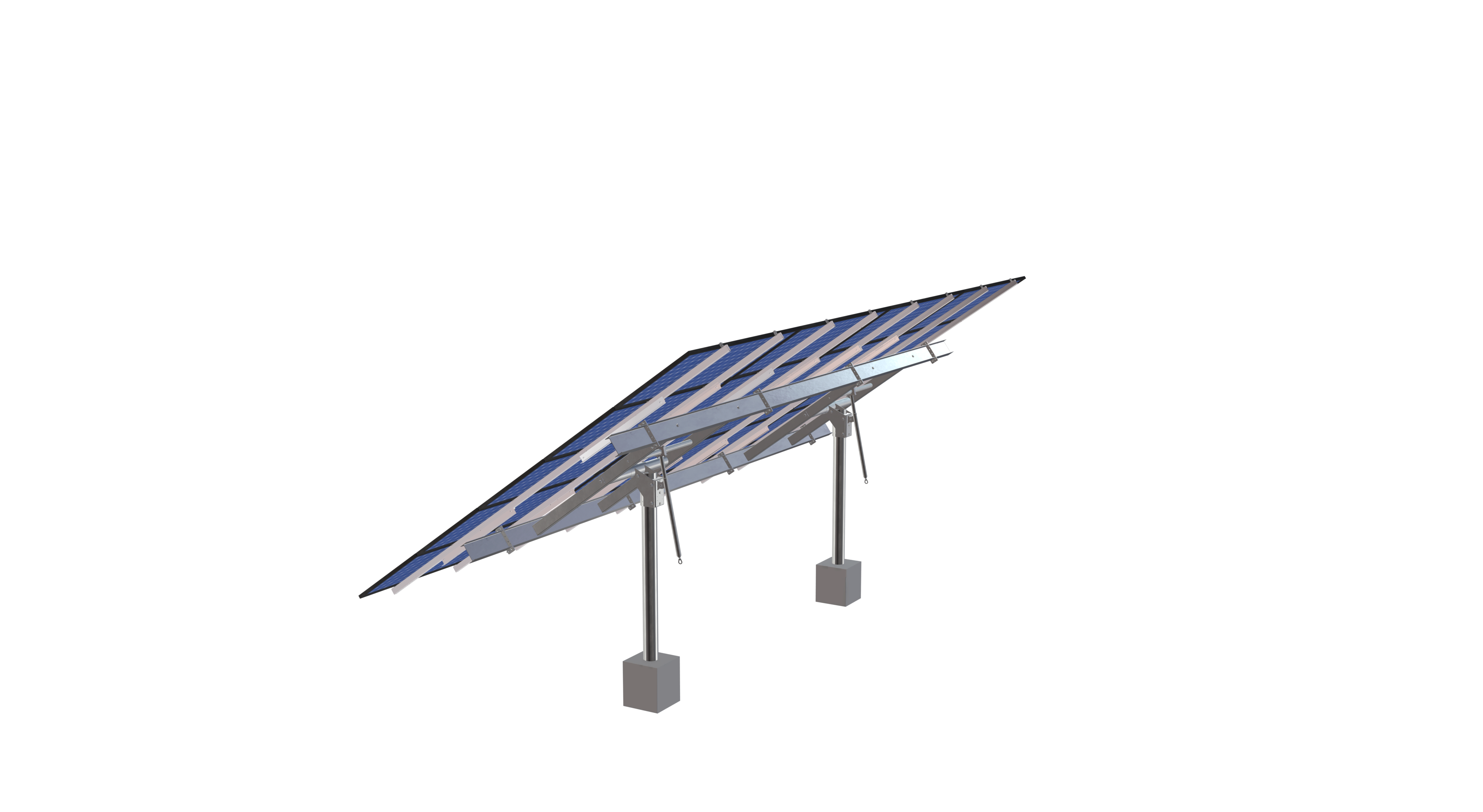

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Solar-JB-RevAundefined
$8,663.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 1702.9 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-HD-24-L-5HX4W-LK24 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 6.99 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 318.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 2.00 |
| MODULE AREA | 492.89 |
| ARRAY WIDTH | 28.30 |
| ARRAY HEIGHT | 17.42 |
| RAIL LENGTH | 209.00 |
| MODULE LENGTH | 83.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 26.50 |
| GROUND TO TOP | 11.93 |
| PROJECTED PANEL HEIGHT | 9.87 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | SOLAR-JB-REVA |
| SITE ADDRESS | 11605, GILBERT, LN, LA, PLATA, MD, 20646, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8663.56 |
| TOTAL WEIGHT | 1702.90 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/3e6692d1-47f3-4eef-a82b-1330dc378be9.pdf |
|
| ID | 296.00 |
