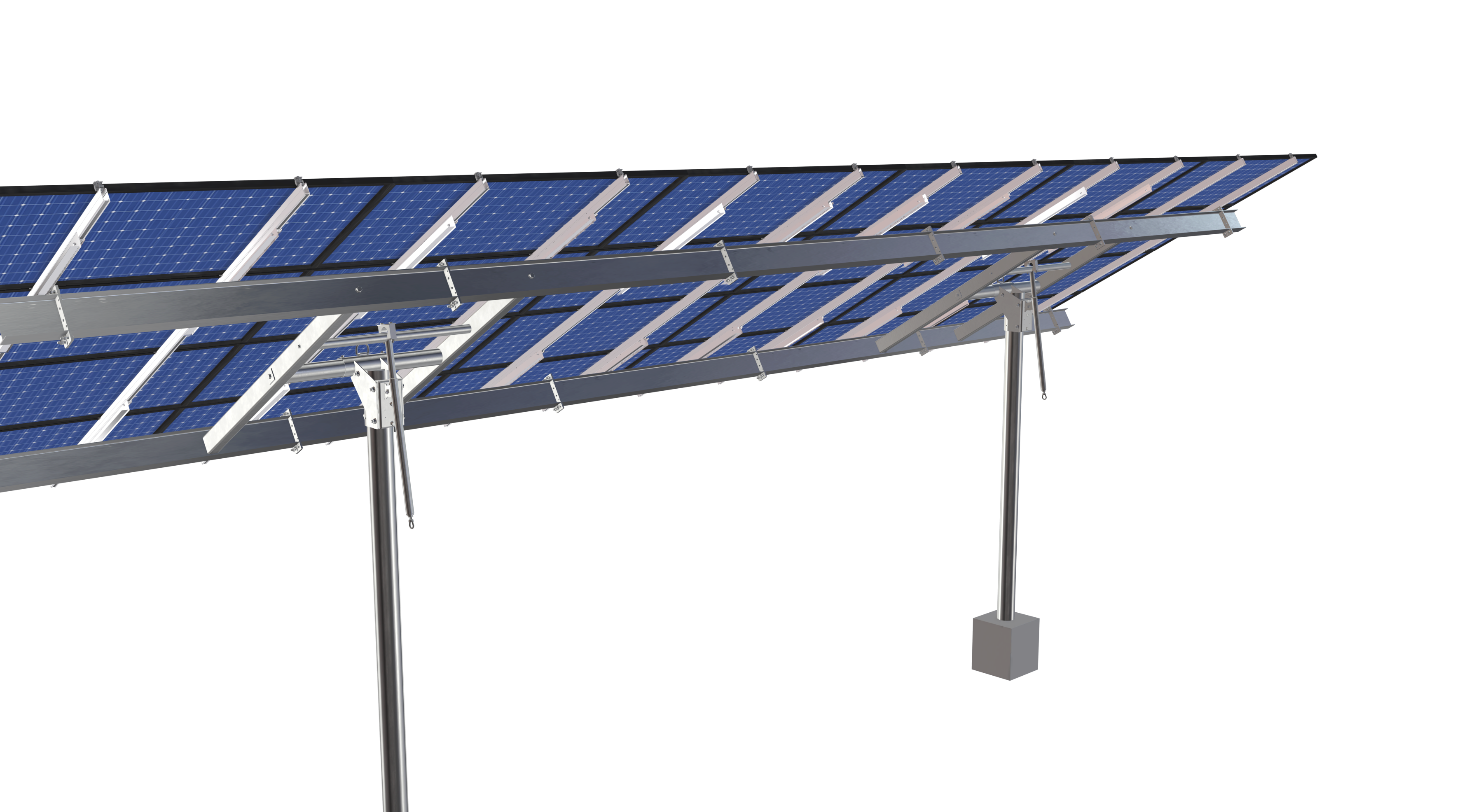

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.86 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Solar2023-JB-RevA
$9,739.59
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.86 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
Weight | 1807.5 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-8TOP-HD-57-L-4HX6W-6269 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 10.45 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 6.75 |
TILT ANGLE | 30.00 |
CANTILEVER | 474.00 |
GROUND CLEARANCE | 7.00 |
NO POLES | 2.00 |
MODULE AREA | 575.18 |
ARRAY WIDTH | 41.72 |
ARRAY HEIGHT | 13.79 |
RAIL LENGTH | 165.44 |
MODULE LENGTH | 82.44 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 39.50 |
GROUND TO TOP | 13.85 |
PROJECTED PANEL HEIGHT | 6.81 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | SOLAR2023-JB-REVA |
SITE ADDRESS | 1501, TODD, FARM, RD, NANCY, KY, 42544, USA |
MODULE WIDTH | 40.86 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | D |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 9739.59 |
TOTAL WEIGHT | 1807.50 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/3580f9b4-8893-4b92-82bb-2f9fb8ababd2.pdf |
|
ID | 301.00 |
