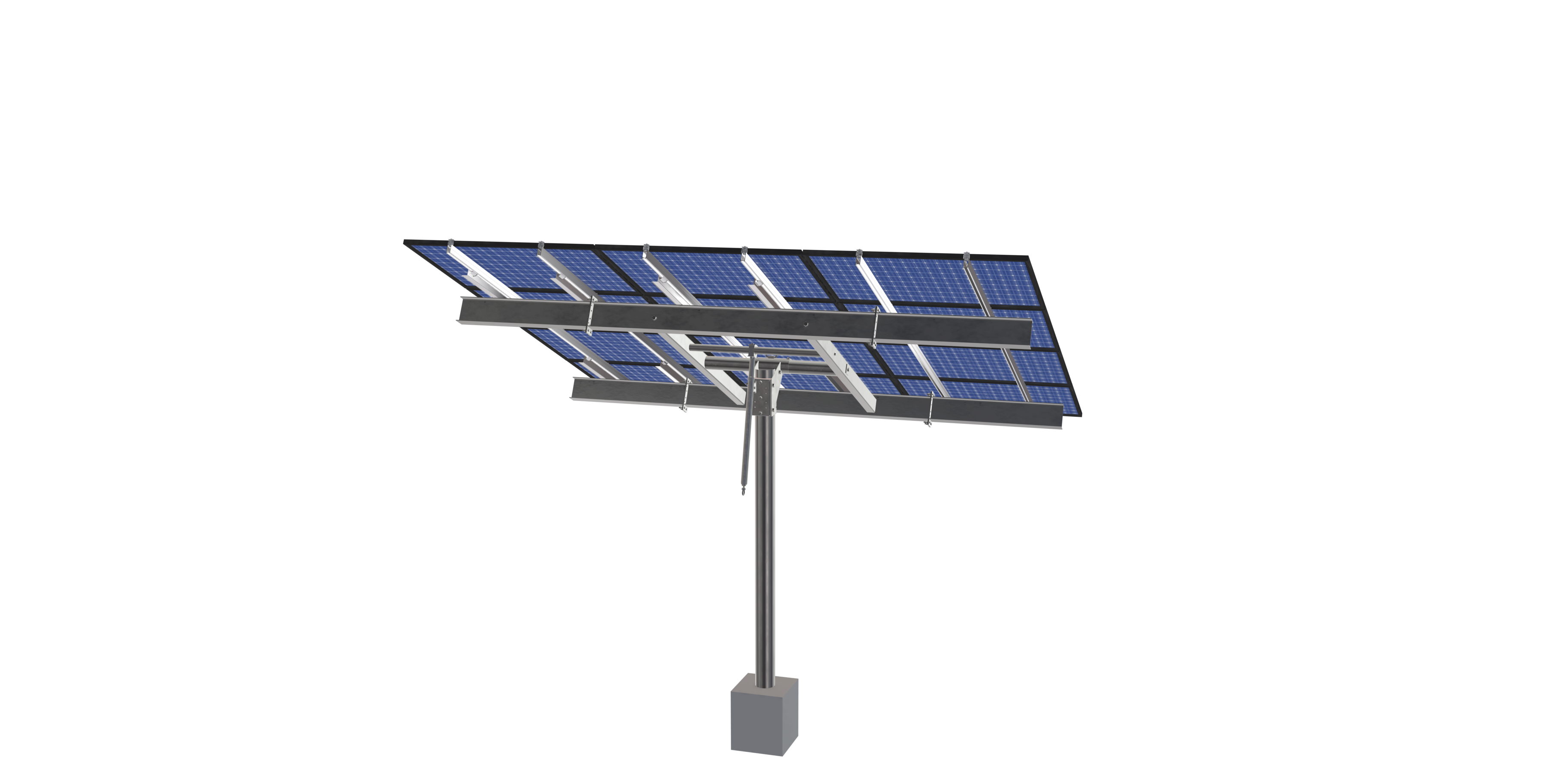

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 61.3 inches by 41.2 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Stepman_JB_RevA
$3,937.32
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 61.3 inches by 41.2 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 678.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-45-L-4HX3W-I210 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.94 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 216.49 |
| ARRAY WIDTH | 15.57 |
| ARRAY HEIGHT | 13.90 |
| RAIL LENGTH | 166.80 |
| MODULE LENGTH | 61.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 11.84 |
| PROJECTED PANEL HEIGHT | 5.80 |
| PROJECT ID | STEPMAN, JB, REVA |
| SITE ADDRESS | 16891, LIVELY, WOOD, LN, ROUGH, AND, READY, CA, 95975, USA |
| MODULE WIDTH | 41.20 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 29.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 3937.32 |
| TOTAL WEIGHT | 678.66 |
| TOTAL PALLETS | 1.00 |
